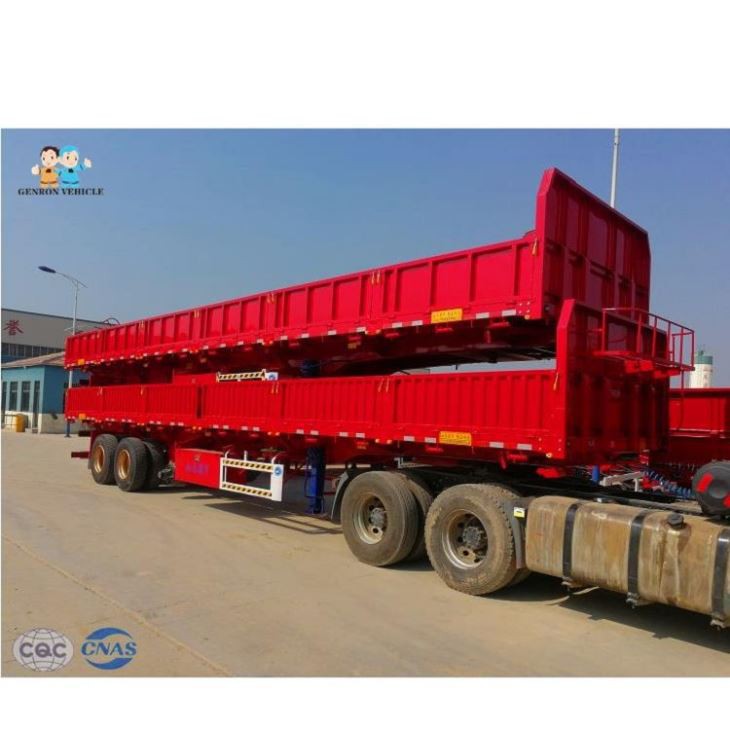

2 Axles Drop Side Semi Trailer

Put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

Send Inquiry Chat Now

88.1(001)

1.2 axles drop side semi trailer –Shipping beer case or Cement Powder Bags and other bulk cargo.

Tare Weight	About 7.6T-9T
Dimension	10000-13000mm2490mm2860mm
Loading Capacity (T)	≤ 60 T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	9.00-22.5 9.75-22.5（special for export market ）
Tire	12.00R22.5/ 315 80R22.5 （special for export market ）
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) （special for export market ）
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 （special for export market ）
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel.
Side beam	16mm or 18mm channel steel (Material is Q235steel).
Bottom Platform	3mm diamond steel plate
Side Wall	600mm-1500mm ，or can be made into box type ,for choice
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber（TKL brand）; One piece of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional
Valve	WABCO valve
Light	LED light （special for export market ）
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

In the past few years, our firm absorbed and digested highly developed technologies equally at home and abroad. Meanwhile, our business staffs a group of experts devoted on the growth of Bottom price 3 Axles Tri-axles 40t 50t Fence Side Drop Cargo Semi Trailer, Welcome to develop the perfectly and long standing enterprise relationships with our business to make a superb potential with each other. customers' satisfaction is our eternal pursuit!

Bottom price Fence Cargo Trailer, Enclosed Cargo Trailer, Axle Cargo Trailer, Our mission is to deliver consistently superior value to our customers and their clients. This commitment permeates everything we do, driving us to continuously develop and improve our products and the processes to fulfill your needs.

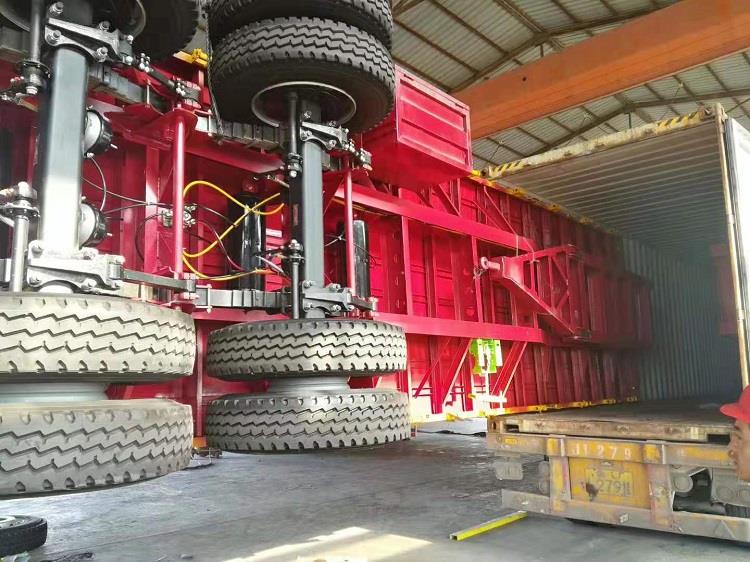

Shipping Way :

88.3_SD

88.5

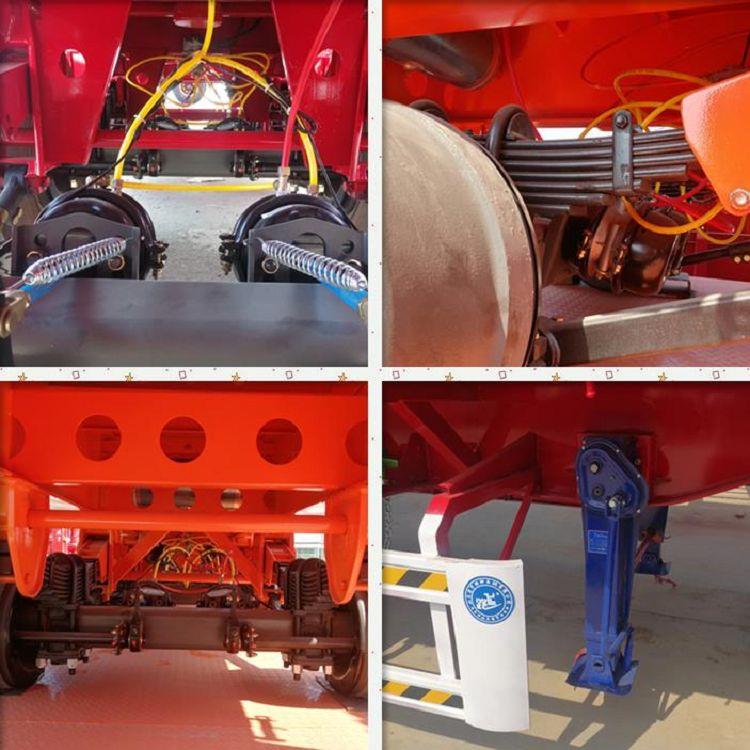

Spare Parts Show:

83(001)

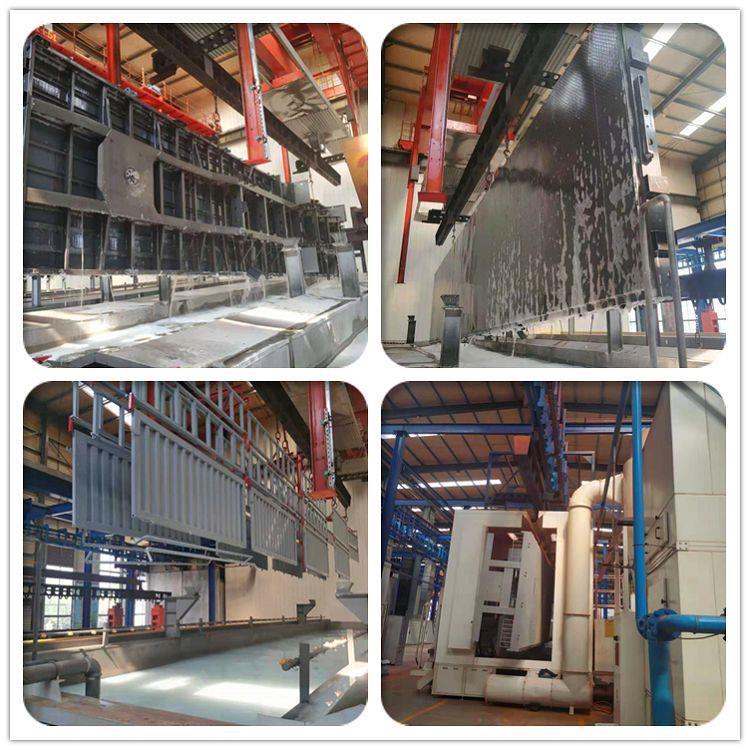

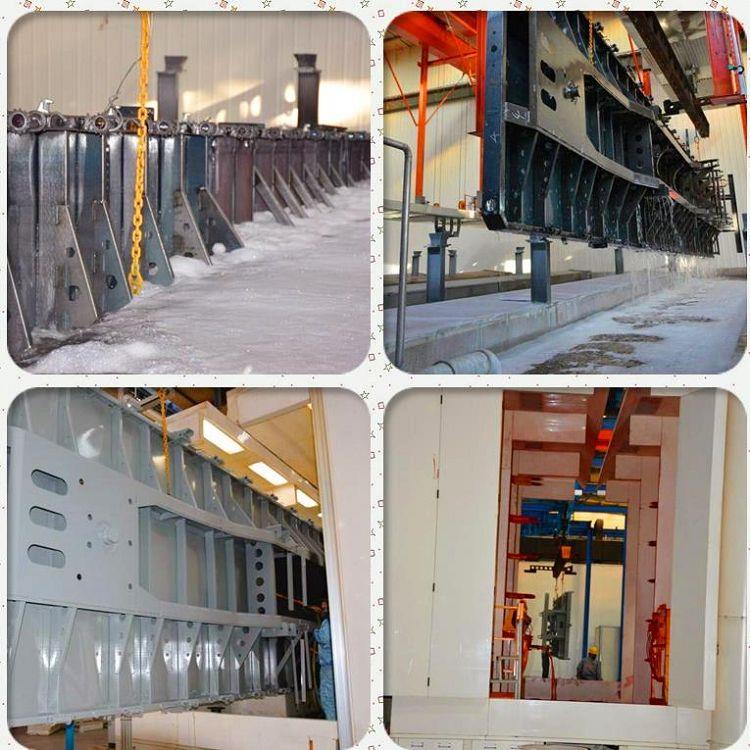

Electric Coating/Painting Process :

84(001)

85.5(001)

Before-sales service

Quotation: We will give you the matched product details configuration and drawing according to your market, show you the best-selling model pictures and reasonable best price.

Reception & Accompany :After you accepted the offer price we have made to your company have the pre-interview ,you can come to visit our office and then go to visit factory ,we will arrange your everything in China. Or if you not sure which model of trailer or other product you should chose ,we can arrange our professional technical checking your market together with you.

Our Technical Support Team:

85.6(001)
