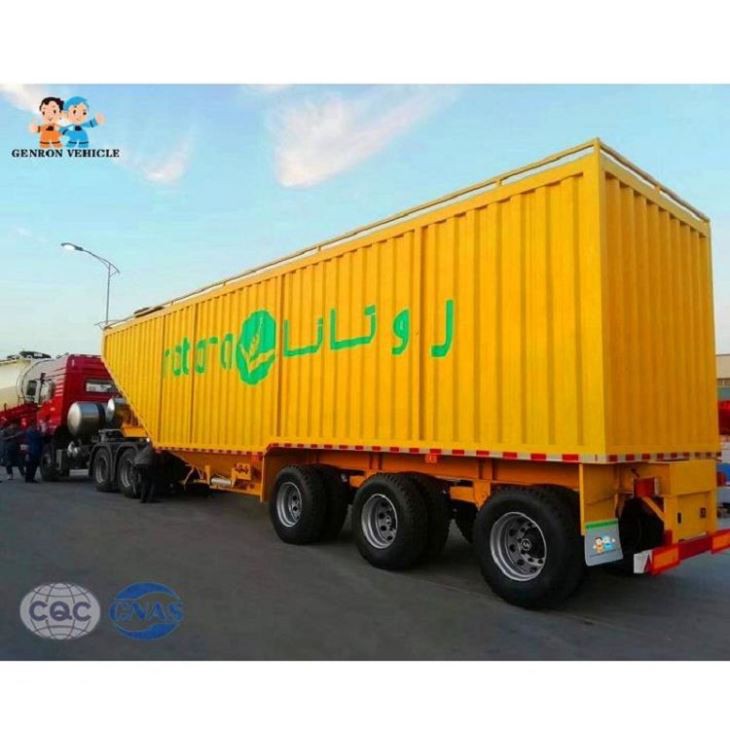

Bottom Dischage Van Huge Trailer
China Gold Supplier for Van Truck Trailer, Box Trailer, Truck Trailer, We welcome you to visit our company and factory.
Send InquiryChat Now
1.Bottom discharge van huge trailer –Shipping for light bubble goods and other bulk cargo.
Tare Weight | About 8.3T |

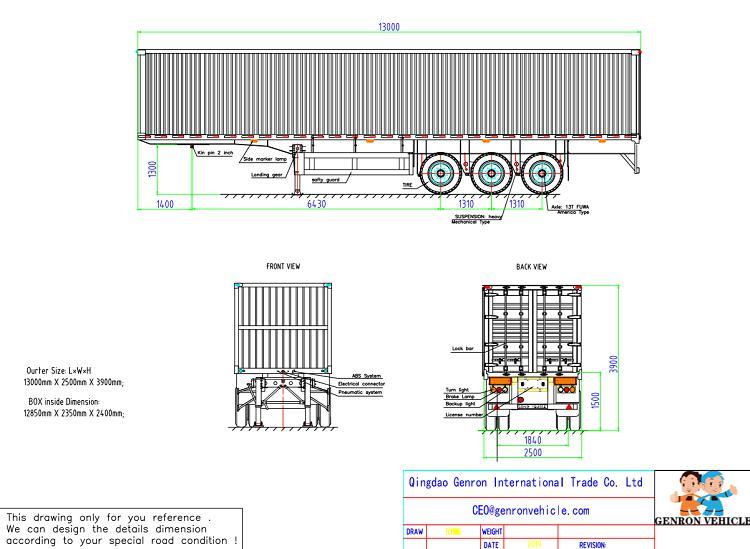

Dimension | 13000mm*2490mm*2860mm (Outer side) |
Loading Capacity (T) | ≤ 60 T |
Axle | 13 T/16T, FUWA /BPW /GV Brand |
Rim | 9.00-22.5 9.75-22.5, 8.25-20 |
Tire | 12.00R22.5/ 315 80R22.5 12.00R20 |
Suspension | Mechanical suspension (Germany Type or America Type) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, |
Side beam | 16mm or 18mm channel steel ( Material is Q235steel ). |
Side Wall | 600mm-1800mm ，the open door can be chosen freely. |
Brake chamber | 6 relay valves; T30/30+T30 Spring brake chamber; One piece of 45L air tanks （special for exporting market） |
ABS | Optional |
Valve | WABCO valve |
Light | LED light ( special for exporting market ) |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
With reliable excellent approach, great name and ideal consumer services, the series of products and solutions produced by our company are exported to many countries and regions for China Gold Supplier for Cimc 3 Axle 40ton Cargo Box Semi Trailer Dry Van Type Cargo Trailer Box Semi Trailer, To significantly increase our services high-quality, our business imports a large number of foreign advanced devices. Welcome clients from home and overseas to phone and inquire!
China Gold Supplier for Van Truck Trailer, Box Trailer, Truck Trailer, We welcome you to visit our company and factory. It is also convenient to visit our website. Our sales team will offer you the best service. If you need more information, please feel free to contact us by E-mail or telephone. We are sincerely hope to establish a good long-term business relationship with you through this opportunity, based on equal, mutual benefit from now till the future.

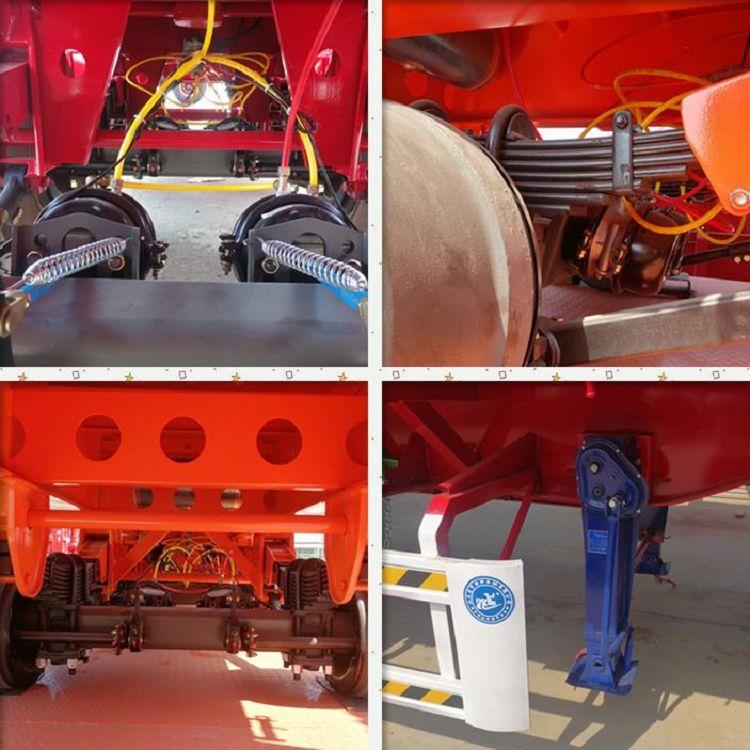

Bottom discharge van huge trailer Parts Pictures:

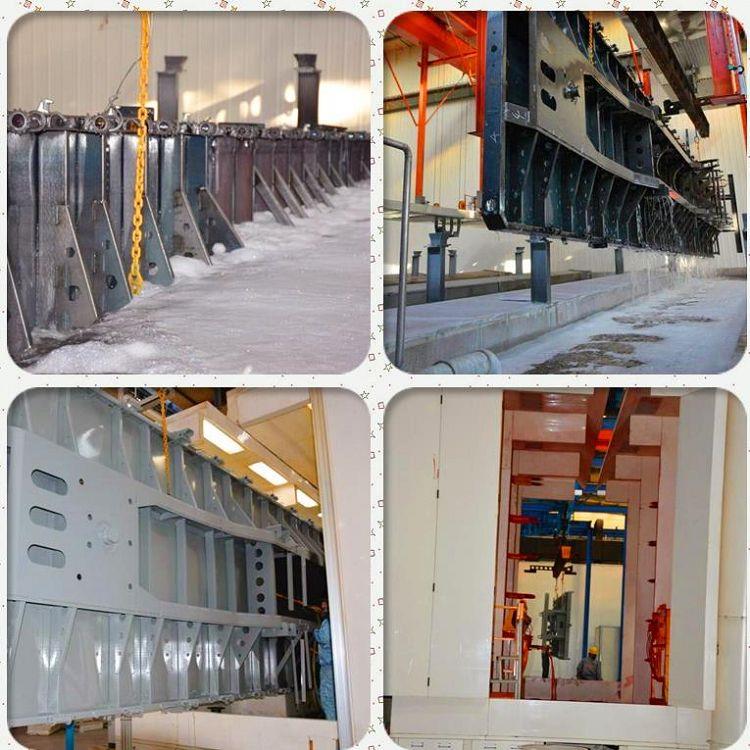

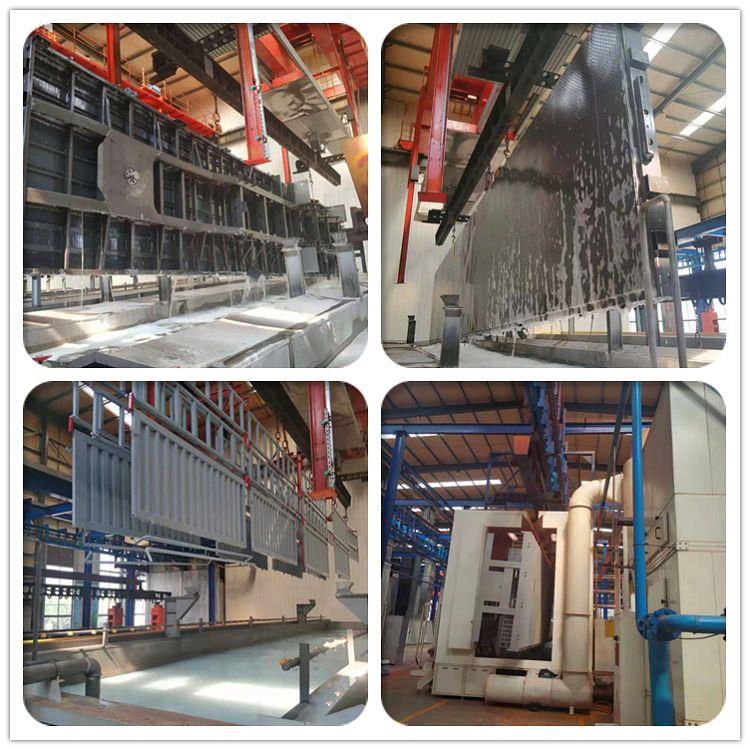

Electrophoretic coating:
The first step:
The automatic cleaning machine can make every point of the trailer very clean and remove all sundries.
Final step: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade, and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* pick you from airport together to visit factory production line, and make sure your safety in China.
After sale service
* Responsible for maintenance services.
* Provide regular telephone calls to customers.

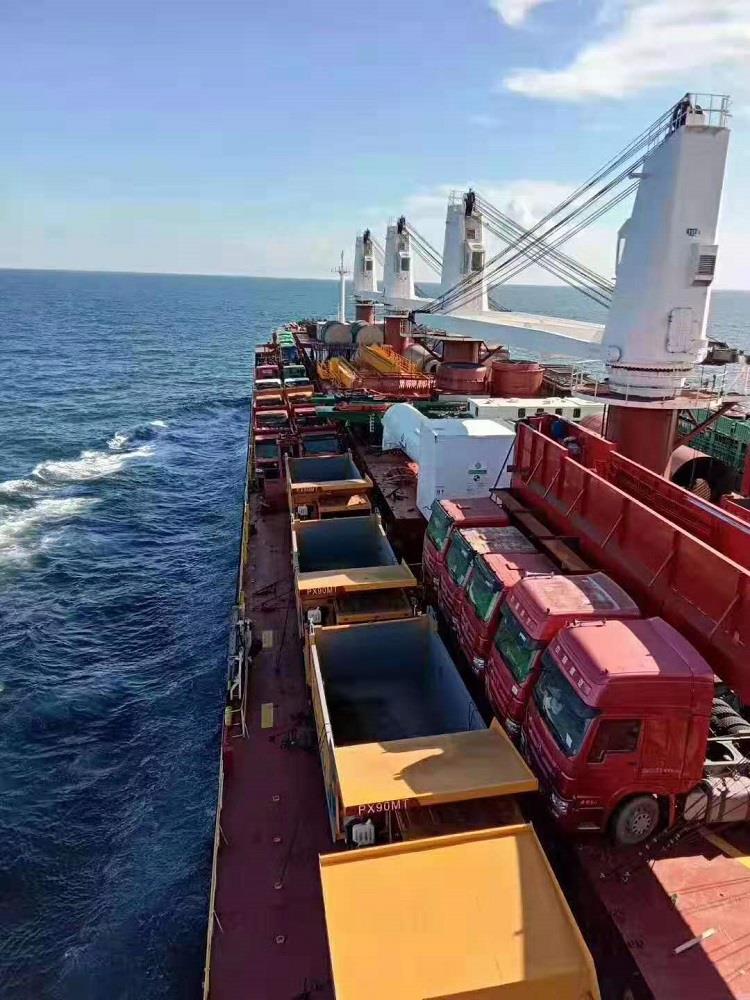

Bottom discharge van huge trailer Shipping Item :
Technical Service Team:
Let us to be your business partner is the shortest way to get your goods!
Don’t waste your money! Don’t waste your time!
WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
