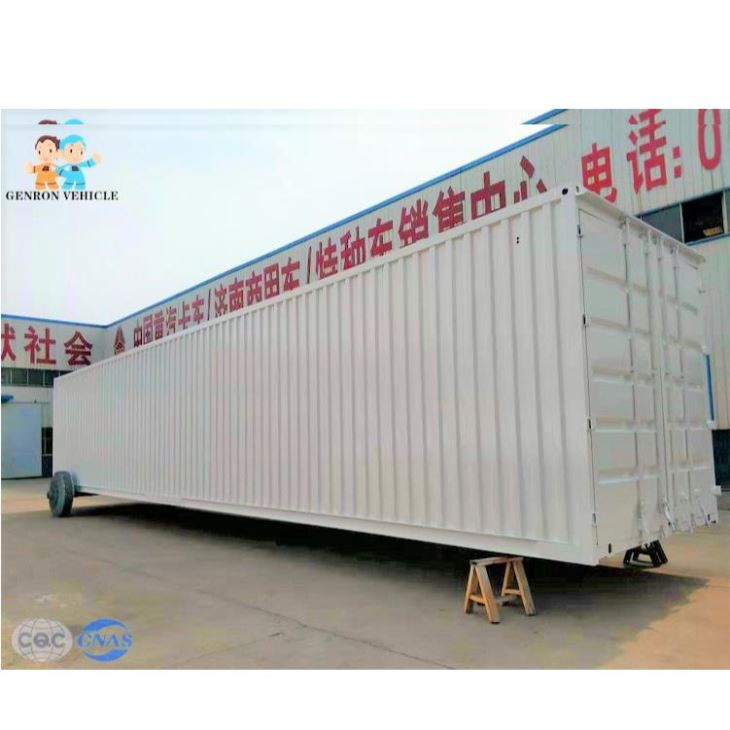

Cargo Box Semi Trailer

Send Inquiry Chat Now

91.3

1.Cargo box semi trailer –Delivery for light bubble goods and other bulk cargo.

Tare Weight	About 8.3-10T
Dimension	10000-13000mm2490mm2860mm (Outer side) 1280023001800mm (work space)
Loading Capacity (T)	≤ 60 T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	9.00-22.5 9.75-22.5, 8.25-20
Tire	12.00R22.5/ 315 80R22.5 12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Side beam	16mm or 18mm channel steel ( Material is Q235steel ).
Side Wall	600mm-1800mm ，the open door can be chosen freely.
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber;One piece of 45L air tanks （special for exporting market）
ABS	Optional
Valve	WABCO valve
Light	LED light ( special for exporting market )
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

We are experienced manufacturer. Wining the majority of the crucial certifications of its market for Good quality Bicycle Cargo Trailer, For anyone who is fascinated in any of our products and solutions, remember to come to feel totally free to get in touch with us for more facts. We hope to cooperate with additional good friends from everywhere in the world.

Good quality Used Cargo Trailers, Bike Cargo Trailer, Cargo Box Trailer, Products have been exported to Asia, Mid-east, European and Germany market. Our company has constantly been able to update the products performance and safety to meet the markets and strive to be top A on stable quality and sincere service. If you have the honor to do business with our company. we will definitely do our very best to support your business in China.

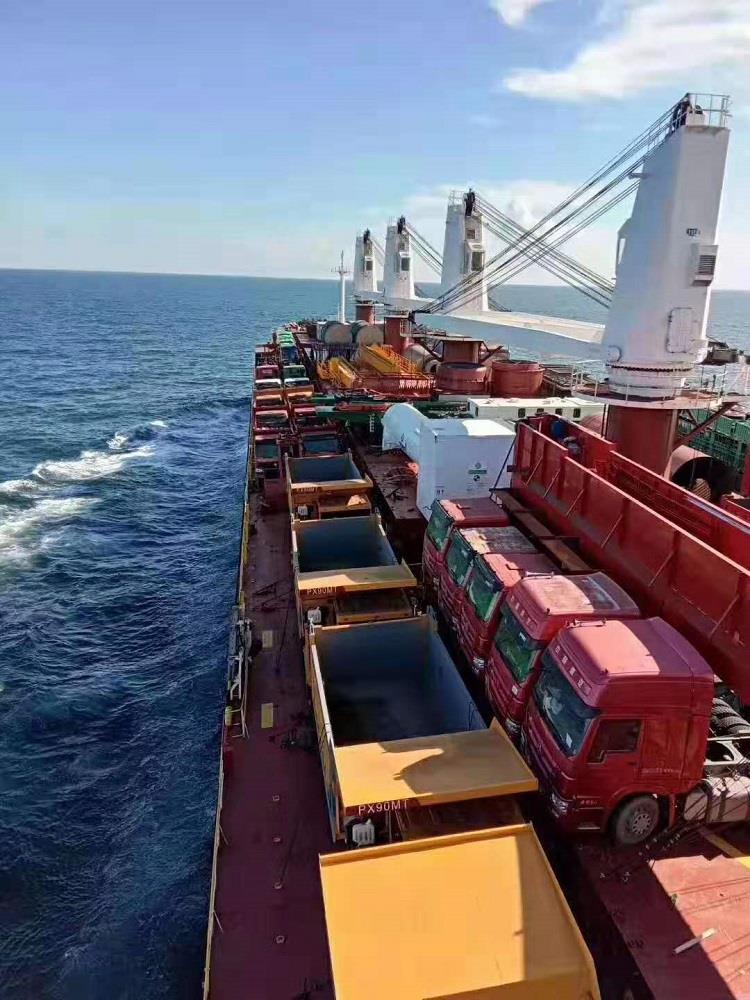

Cargo Box Semi Trailer Shipping Method :

91.5

Cargo Box Semi Trailer Spare Parts Display

91.6

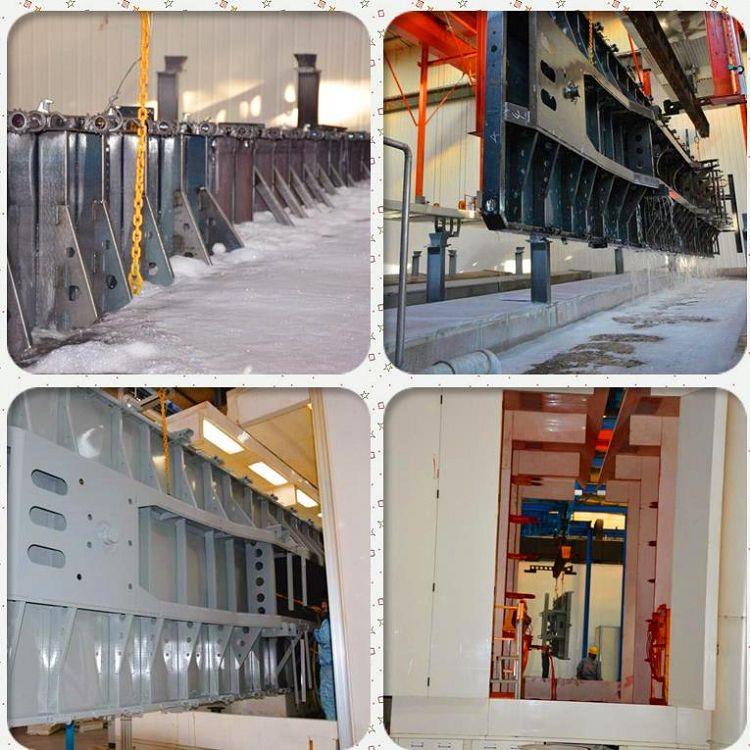

Painting Process for cargo box semi trailer :

84(001)

The first step of E-coating Process

Use this automatic washing machining can make the trailer all points very cleaning ,remove all residual.

Last Process: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under 50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

Pre-sales service

* We will gave you the matched product details configuration and drawing according to your market, show you the best-selling model pictures and reasonable best price.

After sale service

* We will often go abroad to check our products .

* Engineers available to service machinery overseas.

Our Technical Support Team:

85.6(001)
