3 Axles Box Semi Trailer

The 3 axles box semi trailer is used for the transportation of building materials such as household appliances, textile goods, coal, sand and gravel, as well as map plate goods. The van type semi-trailer with a length of more than 16 meters is often used for the cargo transfer between the customs of two inland countries.

Send InquiryChat Now

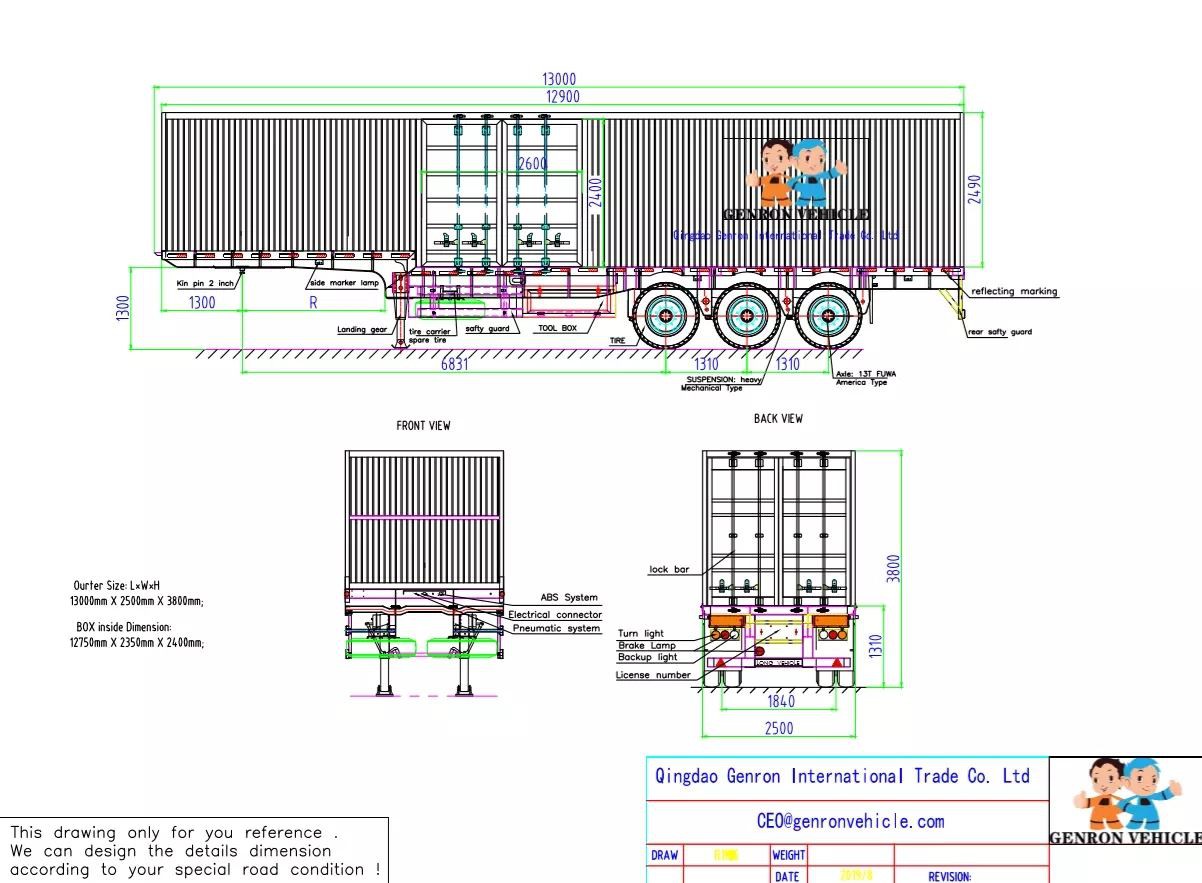

厢式半挂车图纸

The 3 axles box semi trailer is used for the transportation of building materials such as household appliances, textile goods, coal, sand and gravel, as well as map plate goods.


Tare Weight

About 8.3T

Dimension

13000mm*2490mm*2860mm (Outerside)

12800*2300*1800mm

Loading Capacity (T)

≤ 60 T

Axle

13 T/16T, FUWA /BPW /Huajing Brand

Rim

9.00-22.5 9.75-22.5, 8.25-20

Tire

12.00R22.5/ 315 80R22.5 12.00R20

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand )

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

King pin

JOST brand 2.0 or 3.5inch bolts type or Welding type

Support leg

JOST brand D200T or China brand 28Tons (Double speed)

Main beam

Height: 500mm, upper plate is 14mm, middle plate is 8mm,

down plate is 16mm ; Material is Q345B Steel .

Side beam

16mm or 18mm channel steel ( Material is Q235steel ).

Side Wall

600mm-1800mm ,the open door can be choose freely.

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand);One piece of 45L air tanks (special for exporting market)

ABS

Optional

Twist Locks

Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional

Valve

WABCO valve

Light

LED light ( special for exporting market )

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms:

By bulk cargo carrier, RORO or 40HQ container.


The details of the 3 axles box semi trailer




The advantages of the 3 axles box semi trailer

1. The box body is welded with high-strength steel plate, with various choices, large loading space, reasonable distribution in the box, and X-type brace, which has the characteristics of multi tension, heavy load and light weight.

2. The top of the car has closed type, push open type, open type, open type, etc. it is easy to operate.

3. The closed side guard rail design is adopted for the van type semi-trailer, which can effectively reduce the lateral risk and energy consumption when the vehicle is running at high speed.

4. The rear protection design has reasonable cart accessories to facilitate operation. Wing open carriage is convenient for loading and unloading of goods and improving loading and unloading efficiency.

5. It can be designed separately according to different requirements of customers.

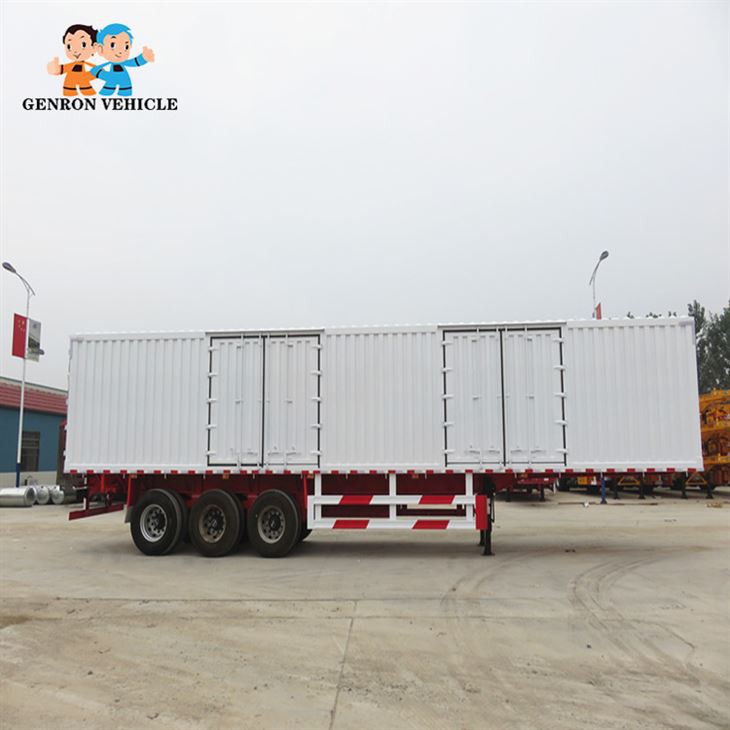

Product display

其他产品.webp_副本

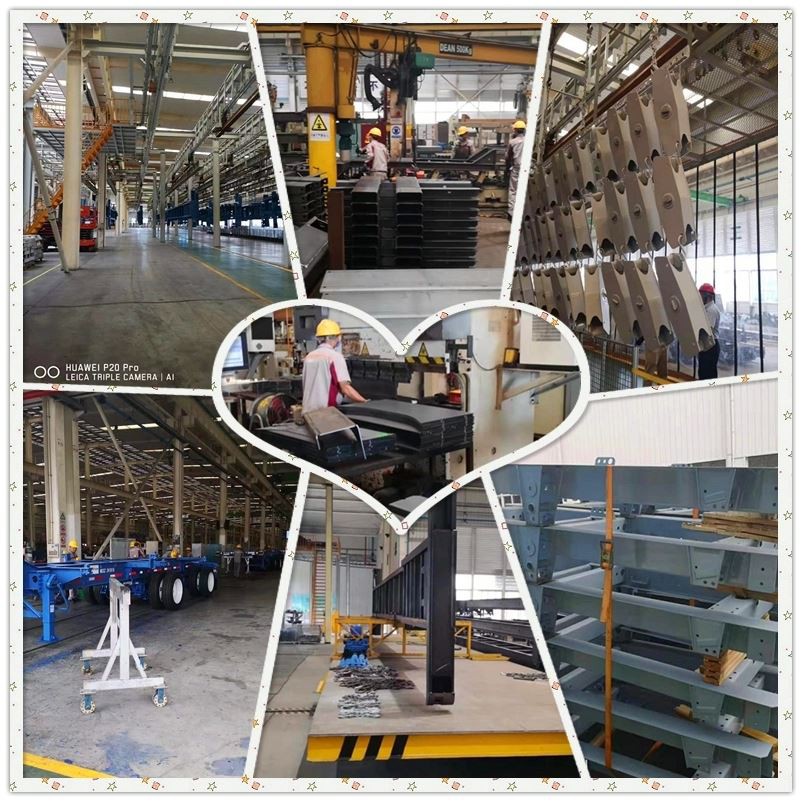

The workshop


03


FAQ

Q:Which semi trailer brand is best in China?

A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .The best expensive brand is CIMC ( this is government company ).Genron is private company ,we can supply low price in high quality .

Q: Can you satisfy my special requirement?

A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!

Q: How can I get your trailer?

A: I will shipping trailer to your port after you pay money

Q: What’s your payment terms?

A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .

2. L/C at sight .

Q: Can I paint my logo on trailer?

A: Of course, you can send me your company logo, then we will design it.

Q:How many cities have been exported ?

A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
