13m Box Semi Trailer

Best quality Low Bed Semi Trailer With Hydraulic, Low Bed Truck Trailer 60t, 13m Low Bed Trailer Dimensions, We hope to have long-term cooperation relationships with our clients.

Send Inquiry Chat Now

94.3

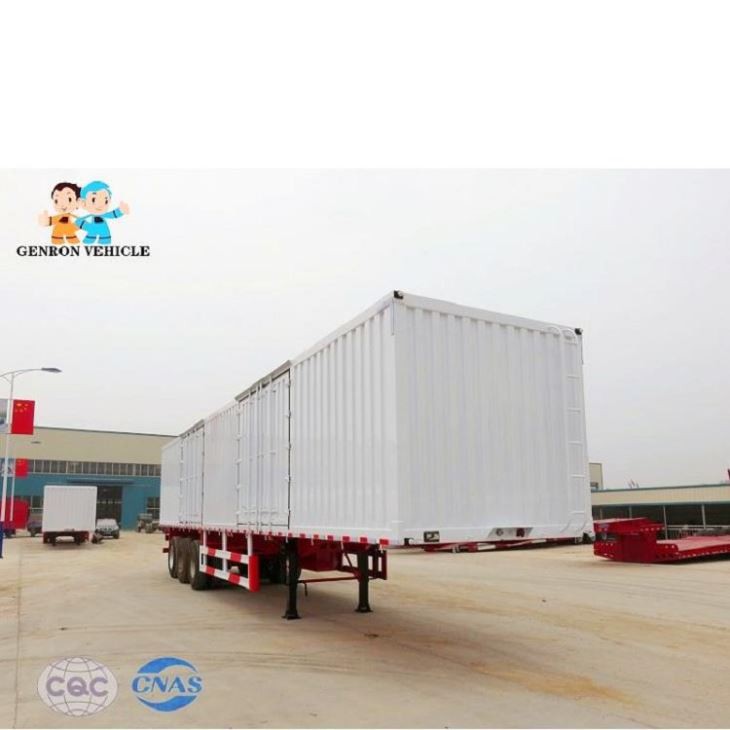

1.13m box semi trailer –To deliver light bubble goods and other bulk cargo.

Tare Weight	About 8.3T

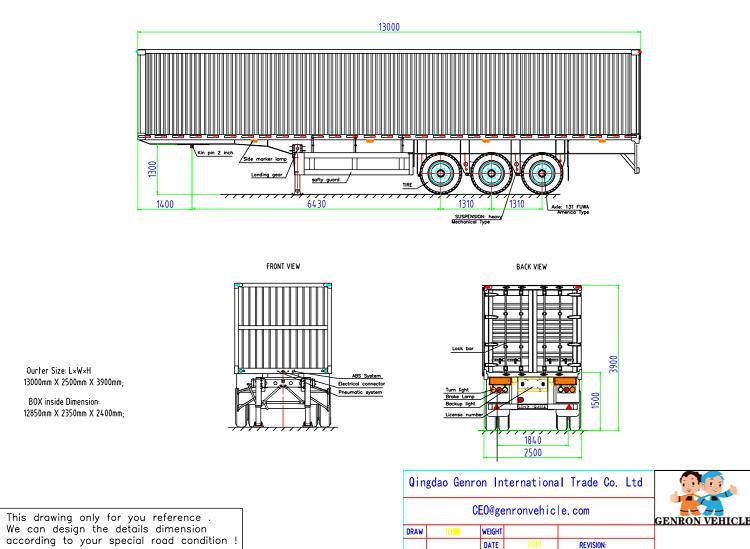

Dimension	13000mm2490mm2860mm (Outer side) 1280023001800mm (work space)
Loading Capacity (T)	≤ 60 T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	9.00-22.5 9.75-22.5, 8.25-20
Tire	12.00R22.5/ 315 80R22.5 12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Side beam	16mm or 18mm channel steel ( Material is Q235steel ).
Side Wall	600mm-1800mm ，the open door can be chosen freely.
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber; One piece of 45L air tanks （special for exporting market）
ABS	Optional
Valve	WABCO valve
Light	LED light ( special for exporting market )
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

We not only will try our greatest to present fantastic expert services to each purchaser, but also are ready to receive any suggestion offered by our prospects for Best quality Popular Model 40-60tons Heavy Duty Excavator Gooseneck Load Box Truck 3axle Power Low Bed Semi Trailer, We welcome you to inquire us by contact or mail and hope to construct an effective and cooperative romantic relationship.

Best quality Low Bed Semi Trailer With Hydraulic, Low Bed Truck Trailer 60t, 13m Low Bed Trailer Dimensions, We hope to have long-term cooperation relationships with our clients. If you are interested in any of our products and solutions, please do not hesitate to send enquiry to us/company name. We ensure that you can be totally satisfied with our best solutions!

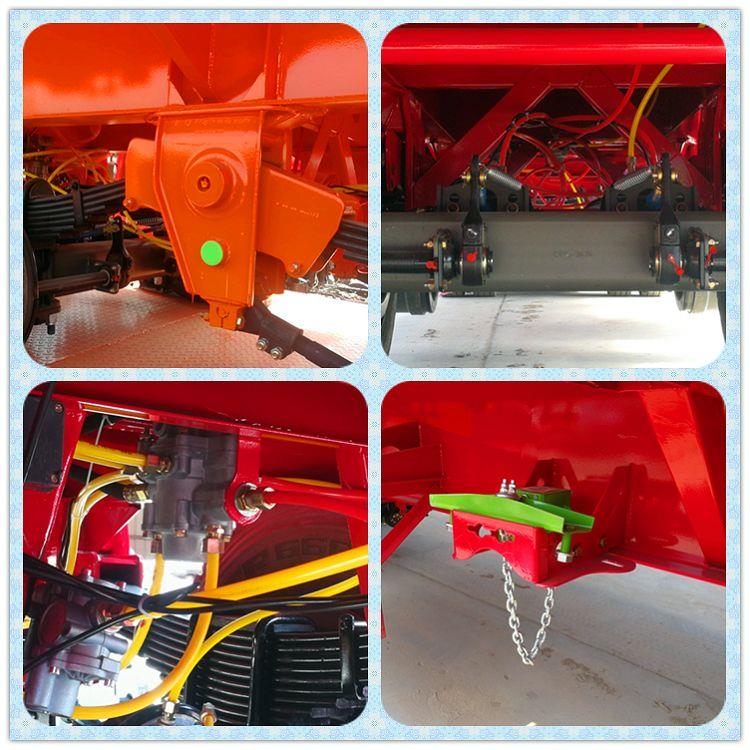

13m box semi-trailer Spare Parts:

91.6

86(001)

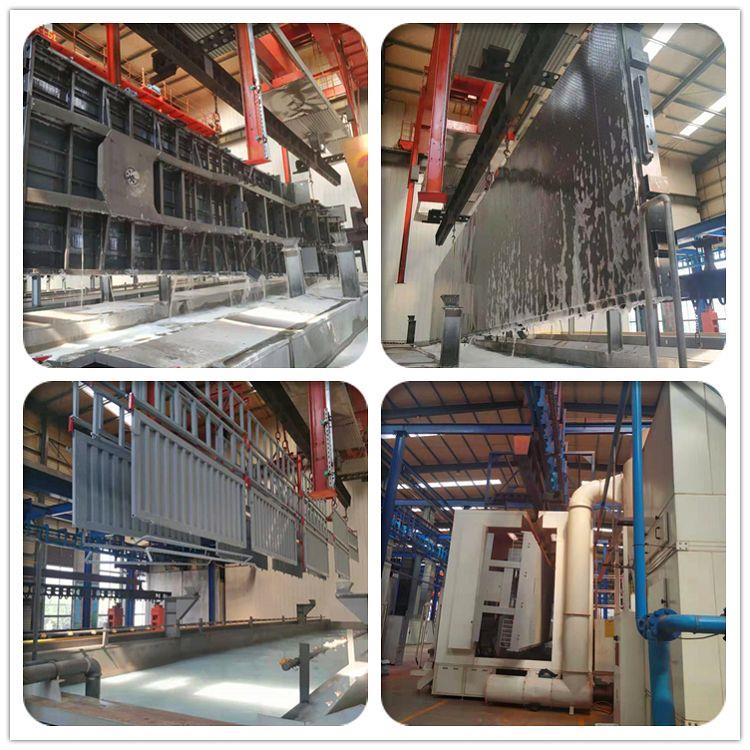

Spraying process :

84(001)

85.5(001)

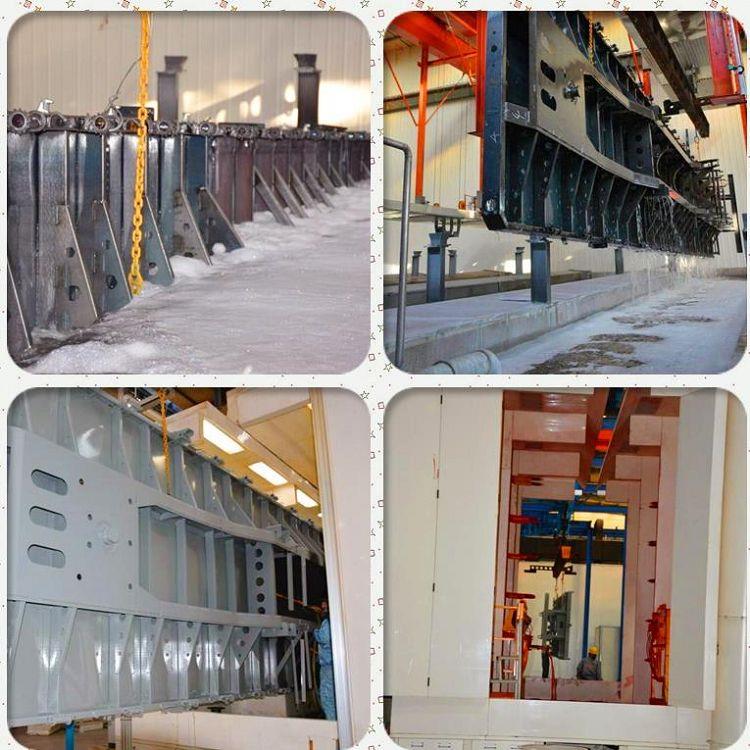

The first step of Electrophoresis Process:

Use this automatic washing machine can make the trailer all points very cleaning ,remove all residual.

The Last step of Electrophoresis Process:

Put the body of the trailer into the evaporation room for electrophoretic drying, adjust the temperature below 50 degrees Celsius, and then spray the powder to vaporize it again, so that the surface of the trailer is very smooth, and the paint is firmly in contact with the trailer for 7 years.

Pre-sales service

* Investigation and consultation support.

* Sample test support.

* Pick you up from the airport to visit the factory production line to ensure your safety in China

After-sale service

* Our technical support team will often go abroad to check our products .

* Engineers who provide mechanical services in overseas markets.

13m box semi-trailer Shipping:
