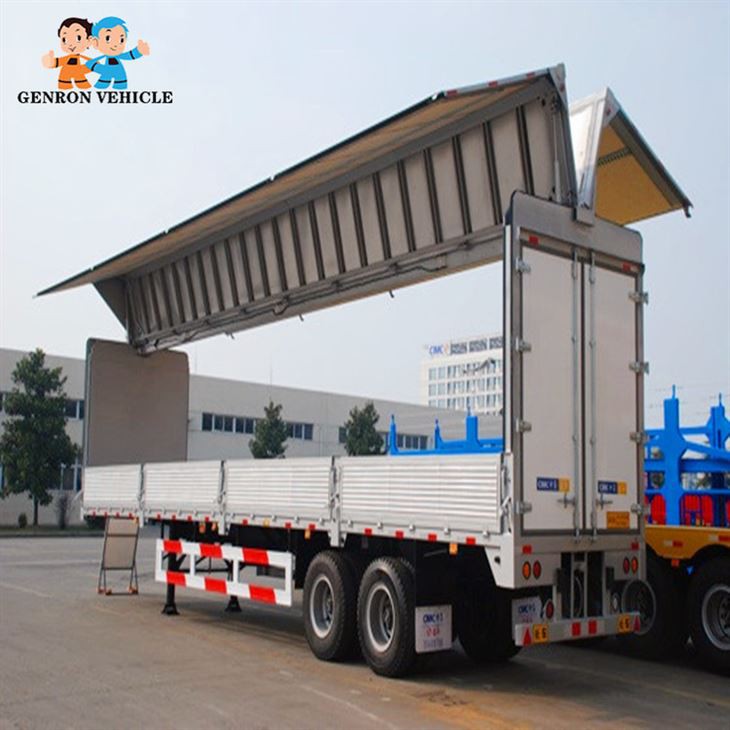

Wing Open Semi Trailer
The wing open semi trailer mainly used for the transportation of daily necessities, drinks, paper rolls, steel rolls, palletized goods, break bulk cargo carrier, Carrying truck, cold storage truck, refrigerator truck, household appliances , textile goods. And some for coal, sand, sandstone, building materials, construction material, etc.
Send InquiryChat NowWing Open Semi Trailer -- For Transporting Bulk Cargo
Product Name | Wing Open Semi Trailer for Transporting Bulk Cargo |
Tare Weight | About 8.3T |
Dimension | 13000mm*2490mm*2860mm (Outer side) 12800*2300*1800mm (work space) |
Loading Capacity (T) | ≤ 60 T |
Axle | 13 T/16T, FUWA /BPW /GV Brand |
Rim | 9.00-22.5 9.75-22.5, 8.25-20 |
Tire | 12.00R22.5/ 315 80R22.5 12.00R20 |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel . |
Side beam | 16mm or 18mm channel steel ( Material is Q235steel ). |
Side Wall | 600mm-1800mm ,the open door can be chosen freely. |
Brake chamber | 6 relay valves; T30/30+T30 Spring brake chamber; One piece of 45L air tanks (special for exporting market) |
ABS | Optional |
Valve | WABCO valve |
Light | LED light ( special for exporting market ) |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Product Description
The wing open semi trailer for sales:
1) reasonable product structure and convenient use.
2) reliable and durable, optimized materials, reliable quality and long service life.
The details of the wing open semi trailer

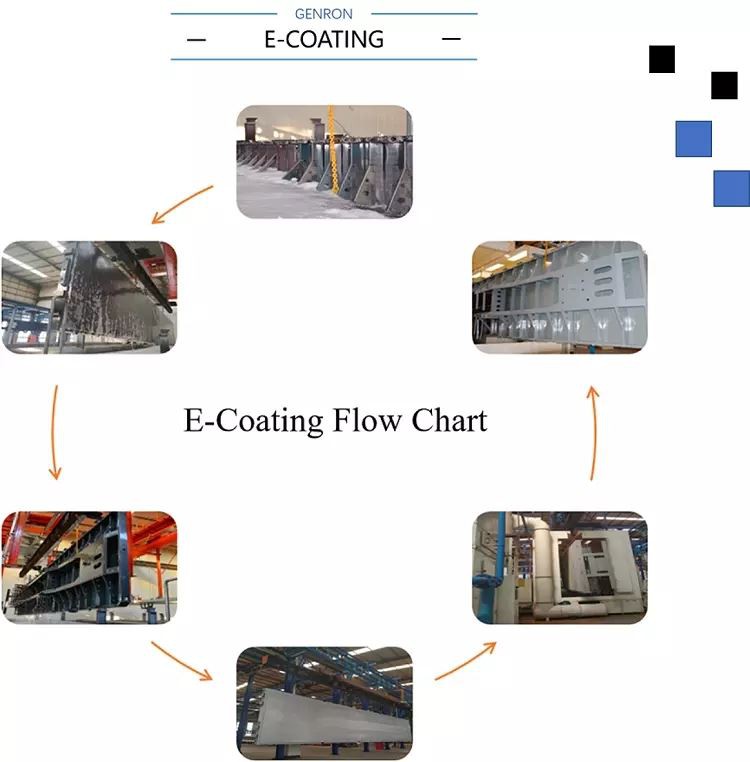

Electrophoresis Coating Vehicle painting results in more wear-resistant and corrosion-resistant than ordinary painting. Meanwhile Appearance performance much better than ordinary painting.
FAQ
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money
Q: What’s your payment terms?
A: T/T or L/C
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it
