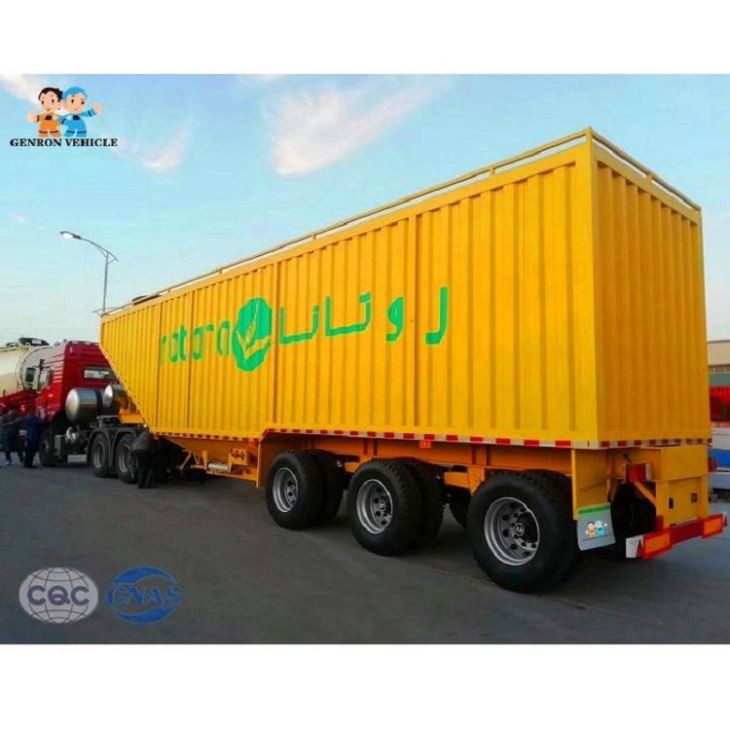

Food Storage Trailer

Factory Cheap Hot Heating Cooling Unit One Room, Cold Room In Tanzania, Cold Room Trailer, We supply OEM services and replacement parts to meet the varying needs of our customers.

Send Inquiry Chat Now

92.7

1.Food storage trailer –Shipping for light bubble goods and other bulk cargo.

Tare Weight	About 8.3T

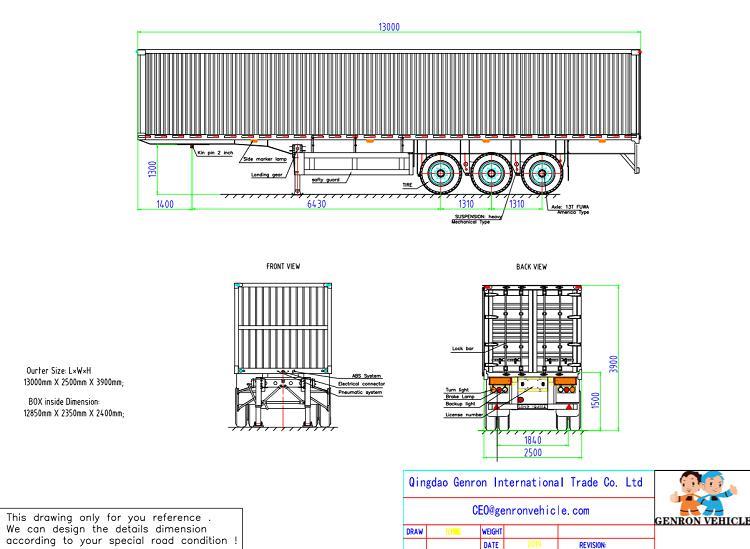

Dimension	13000mm2490mm2860mm (Outer side) 1280023001800mm (work space)
Loading Capacity (T)	≤ 60 T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	9.00-22.5 9.75-22.5, 8.25-20
Tire	12.00R22.5/ 315 80R22.5 12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Side beam	16mm or 18mm channel steel ( Material is Q235steel ).
Side Wall	600mm-1800mm ，the open door can be chosen freely.
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber;One piece of 45L air tanks （special for exporting market）
ABS	Optional
Valve	WABCO valve
Light	LED light ( special for exporting market )
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

Our company sticks into the basic principle of "Quality is definitely the life of the business, and status may be the soul of it" for Factory Cheap Hot Cooling Unit One Cold Room Trailer In Tanzania, We've been very aware of good quality, and have the certification ISO/TS16949:2009. We are dedicated to provide you high quality products and solutions with acceptable price.

Factory Cheap Hot Heating Cooling Unit One Room, Cold Room In Tanzania, Cold Room Trailer, We supply OEM services and replacement parts to meet the varying needs of our customers. We supply competitive price for quality goods and we are going to make certain your shipment is handled quickly by our logistics department. We sincerely hope to have the opportunity to meet with you and see how we can help you further your own business.

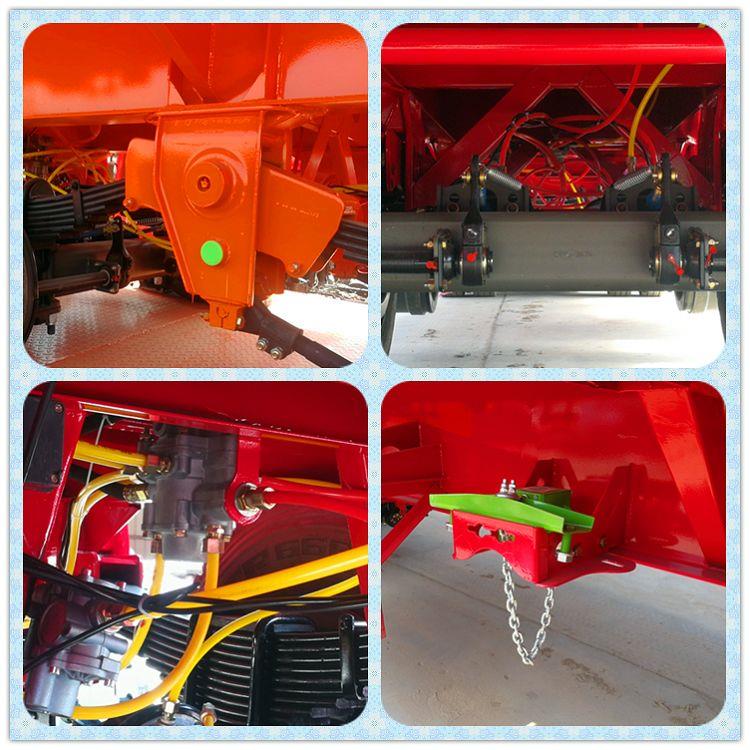

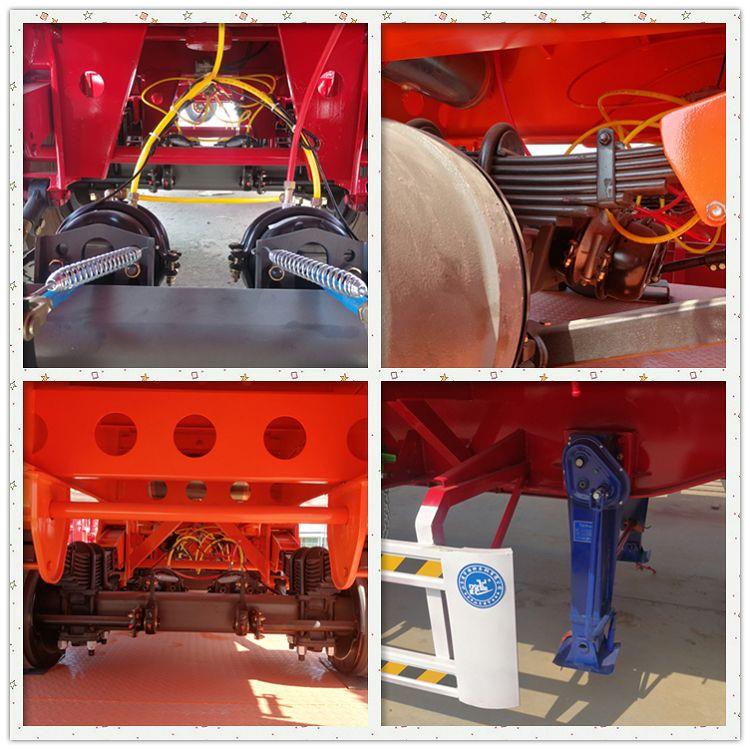

Food storage trailer Spare Parts photos :

85.2(001)

86(001)

Painting Process :

84(001)

85.5(001)

Process: The trailer body is put into the drying room for electrophoretic drying. Adjust the temperature below 50℃, bake again after spraying powder, make the surface very smooth and bright, guarantee paint 7 years fade.

Before sales service

*Based on the customer's country roads situation, transport goods and loading weight requirement, provide semi-trailer solution.

* Experienced sales and engineer support every requirement.

* You and your friends are welcome to come to our company to visit! We can pick you up from the airport.

After sale service

* We will often go abroad to check our products .

* Engineers available to service machinery overseas.

Food storage trailer Shipping way :

91.5
