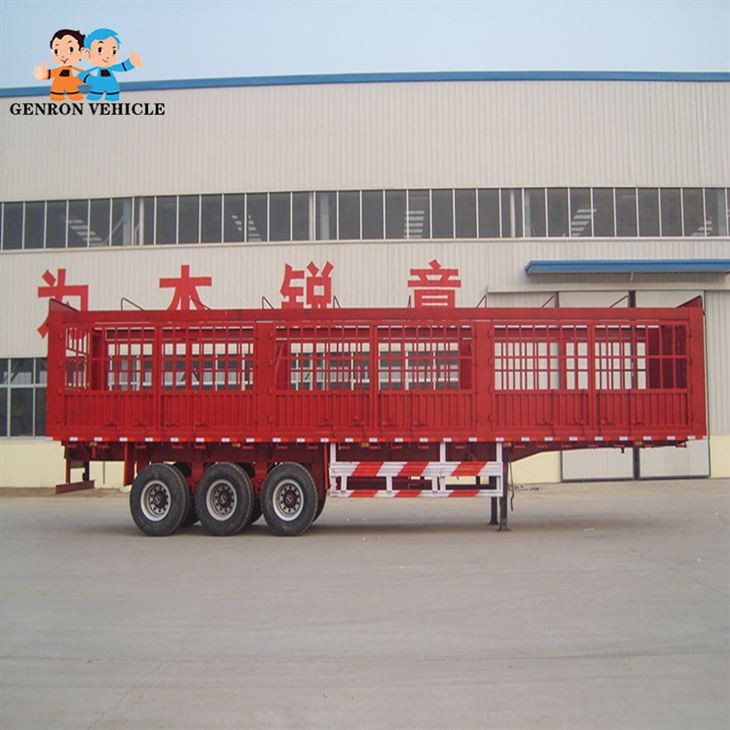

3 Axles Stake Fence Semi Trailer

Dimension

13000mm*2490mm*2860mm (Outerside)

12800*2300*1800mm

Loading Capacity (T)

≤ 60 T

Axle

13 T/16T, FUWA /BPW /Huajing Brand

Rim

9.00-22.5

Tire

12.00R22.5/ 315 80R22.5

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand )

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

King pin

JOST brand 2.0 or 3.5inch bolts type or Welding type

Support leg

JOST brand D200T or China brand 28Tons (Double speed)

Main beam

Height: 500mm, upper plate is 14mm, middle plate is 8mm,

Down plate is 16mm; Material is Q345B Steel.

Side beam

16mm or 18mm channel steel (Material is Q235steel).

Side Wall

600mm-1800mm ，the open door can be choose freely.

With 300-500mm height square tube or round tube

Bottom Platform

3mm-5mm thickness (According to the capacity which you loading for )

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber（TKL brand）; One piece of 45L air tanks

ABS

Optional

Twist Locks

Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional

Valve

WABCO valve

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms:

By bulk cargo carrier, RORO or 40HQ container.
