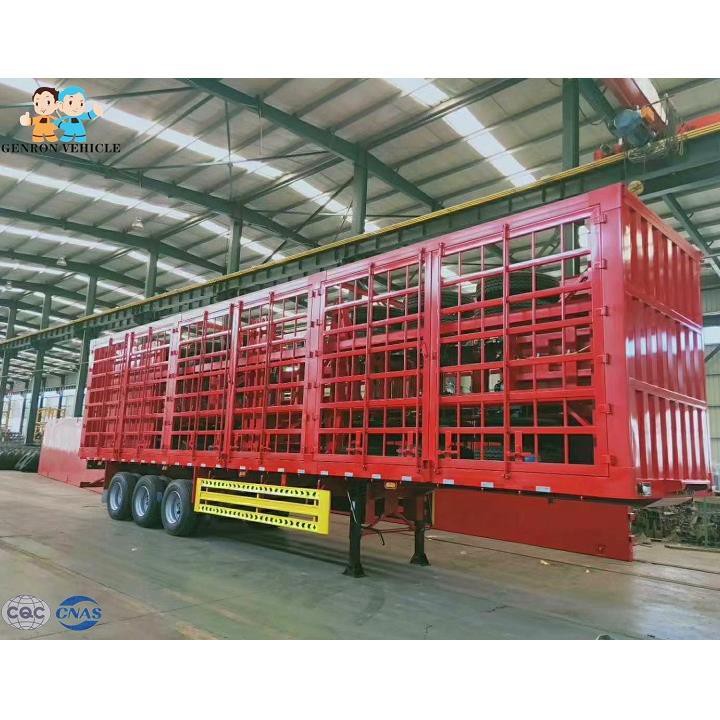

Fence Semi-trailer
We have sixteen years of production experience . Guarantee Quality and Delivery !Since our establishment, we have considered "products quality first" as our principle.
Send Inquiry
1.Fence semi-trailer –To deliver Cement Powder Bags or beer case and other bulk cargo.
Tare Weight | About 8.3-10TT |

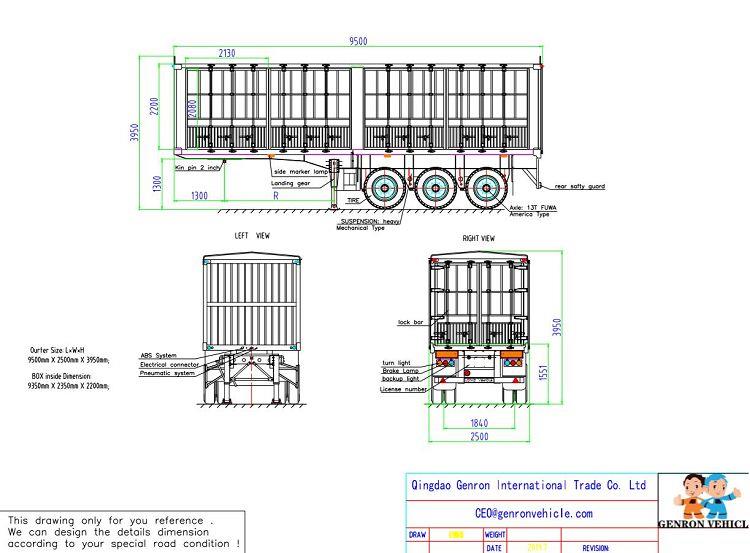

Dimension | 13000mm*2490mm*2860mm (Outer side) |
Loading Capacity (T) | ≤ 60 T |
Axle | 13 T/16T, FUWA /BPW /GV Brand |
Rim | 9.00-22.5 |
Tire | 12.00R22.5/ 315 80R22.5 |
Suspension | Mechanical suspension (Germany Type or America Type) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, |
Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
Side Wall | 600mm-1800mm ，the open door can be chosen freely. |
Bottom Platform | 3mm-5mm thickness (According to the capacity which you load for ) |
Brake chamber | 6 relay valves; T30/30+T30 Spring brake chamber（TKL brand）;One piece of 45L air tanks |
ABS | Optional |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
1. How about the quality of your products? Can I trust you?
We have sixteen years of production experience . Guarantee Quality and Delivery !Since our establishment, we have considered "products quality first" as our principle.
2. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
3.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
4. How about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

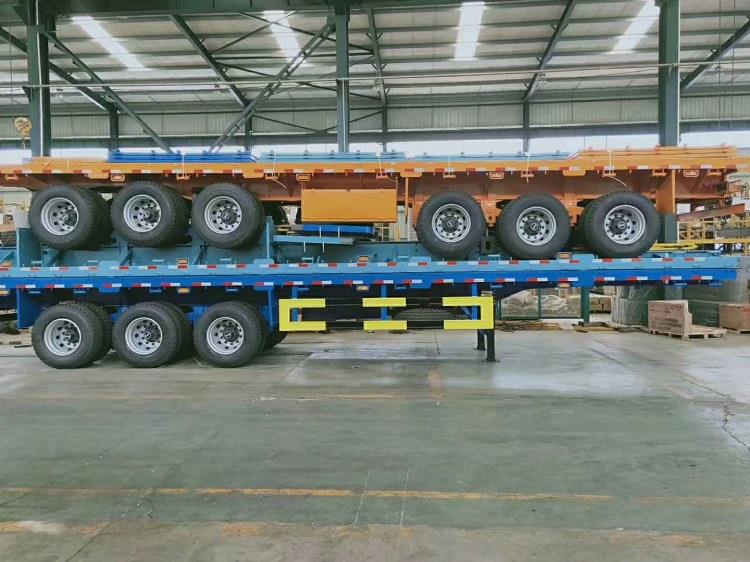

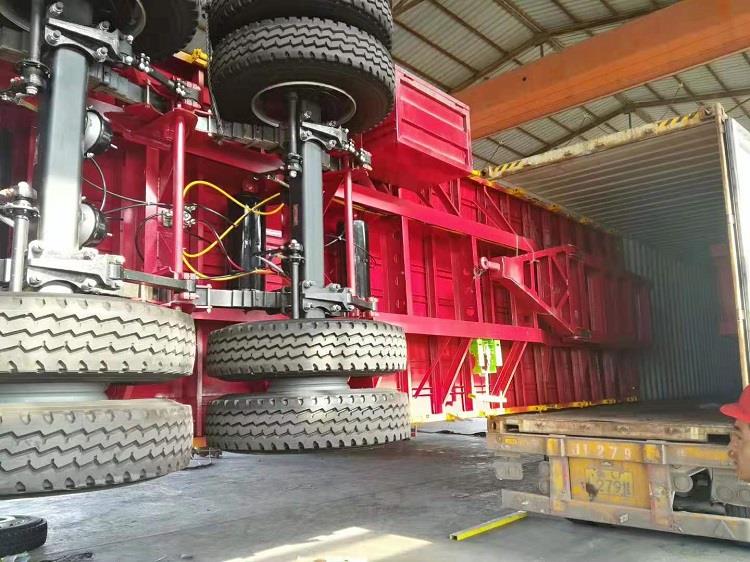

Fence Semi-Trailer Shipping way :

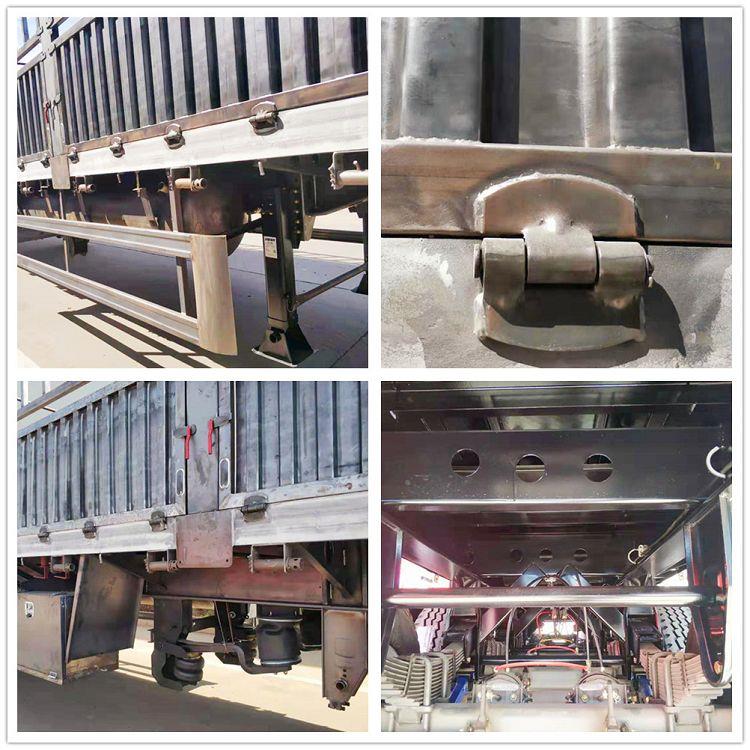

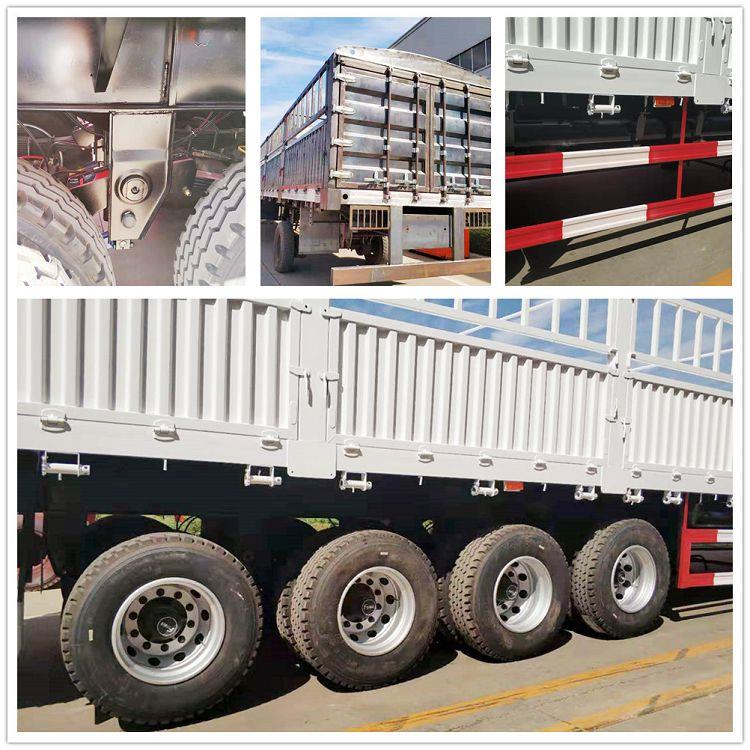

Fence Semi-Trailer Parts Exhibition:

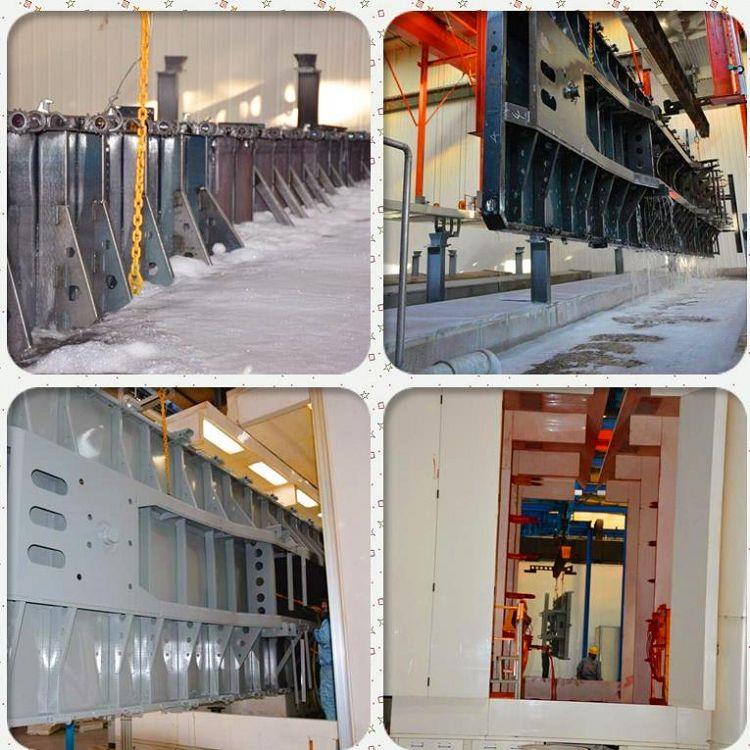

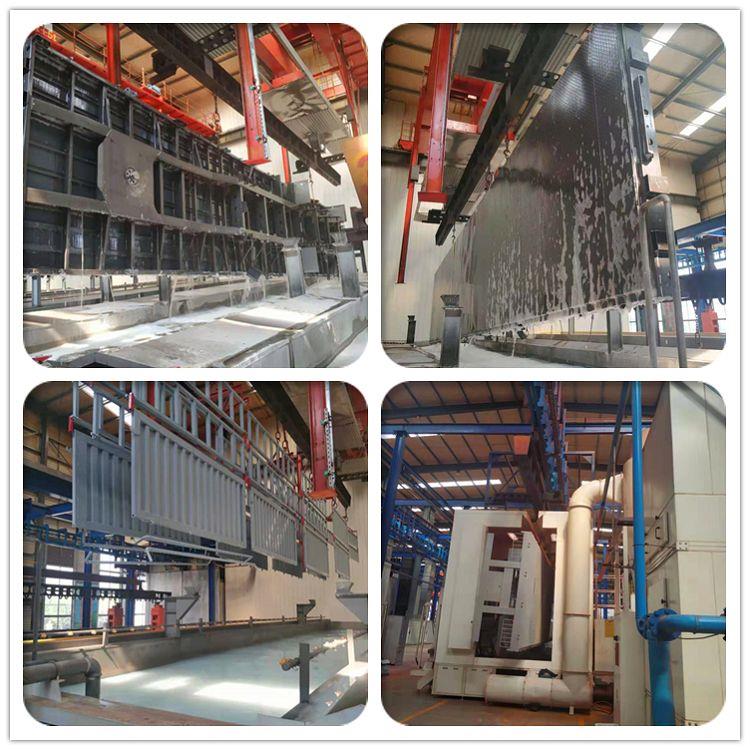

Electric Coating for Fence Semi-Trailer:
Put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under 50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.
Before sale service
* Inquiry and consulting support.
* Sample testing support.
* pick you from airport together to visit factory production line ,and make sure your safety in China.
After sale service
* We will often go abroad to check our products .
* Engineers available to service machinery overseas.
Our Technical Support Team
Company Introduction
Qingdao Genron International Trade Co., Ltd Main Business is Exporting all kinds of trailers, trailer parts and Man-hand Welding Machinery, Automatic Welding machinery, Trailer Production Line Etc. We have our own factory which produce trailers for more than 15 years, Our companny have 11 years export Construction and trailer trucks experiences; She have visited more than 22 countries for checking trailer truck markets. We can supply the right product in shortest ways and cheapest value.
WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
