Curtain Trailer Vehicle

The temperature is adjusted to below 50℃, and then the powder is sprayed to make it steam again, so that the surface is very smooth and the vehicle will not fade for 7 years.

Send Inquiry

96.1

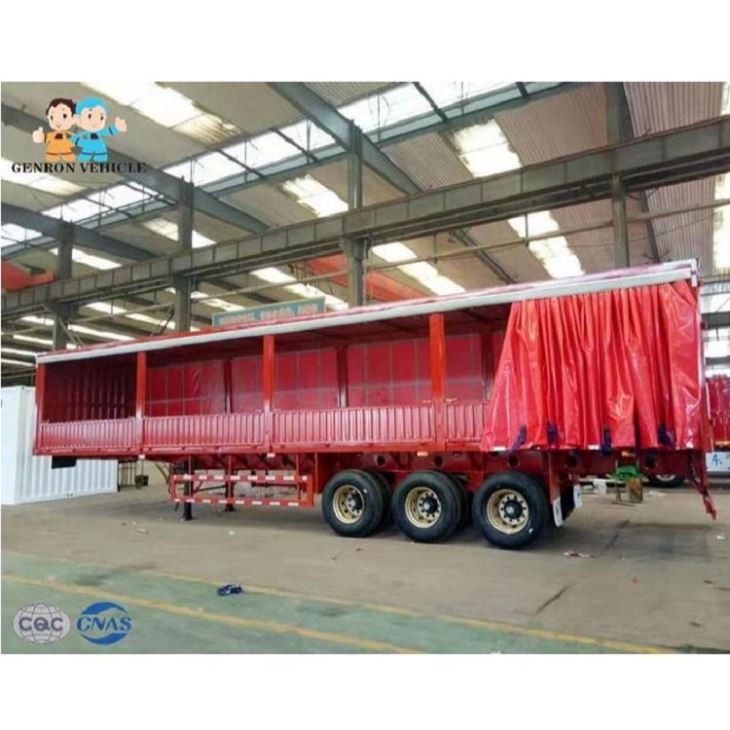

1.curtain trailer vehicle –Delivery for light bubble goods and other bulk cargo.

Tare Weight	About 8.3T
Dimension	13000mm2490mm2860mm (Outer side) 1280023001800mm (work space)
Loading Capacity (T)	≤ 60 T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	9.00-22.5 9.75-22.5, 8.25-20
Tire	12.00R22.5/ 315 80R22.5 12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Side beam	16mm or 18mm channel steel ( Material is Q235steel ).
Side Wall	600mm-1800mm ，the open door can be chosen freely.
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber;One piece of 45L air tanks （special for exporting market）
ABS	Optional
Valve	WABCO valve
Light	LED light ( special for exporting market )
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

Our pursuit and enterprise aim would be to "Always fulfill our buyer requirements". We carry on to acquire and layout excellent quality items for the two our old and new clients and realize a win-win prospect for our shoppers in addition as us for Best quality Four-axle 60tons Capacity Cargo Trailer Flat Bed Side Wall Trailer For Sale, We've been sincerely seeking ahead to cooperate with shoppers everywhere in the earth. We consider we are able to satisfy along with you. We also warmly welcome buyers to visit our manufacturing facility and purchase our products.

Best quality Curtain Side Trailers Sale, Low Bed Trailers For Sale, Flat Bed Side Wall, For anyone who is keen on any of our items right after you view our product list, you should definitely feel absolutely free to get in touch with us for inquiries. You are able to send us emails and contact us for consultation and we shall respond to you as soon as we can. If it's easy, you may locate out our address in our web-site and come to our business for far more information of our merchandise by your self. We're always ready to construct extended and steady co-operation relations with any possible customers in the related fields.

Curtain trailer vehicle Partial production process

95.3

E-Coating/Painting Process :

84(001)

The first step of E-coating Process

Use this automatic washing machine can make the trailer all points very cleaning, remove all residual.

Last step: The main body of the trailer is put into the drying room for electrophoretic drying. The temperature is adjusted to below 50℃, and then the powder is sprayed to make it steam again, so that the surface is very smooth and the vehicle will not fade for 7 years.

Before sale service

* Provide consulting support.

* Provide Sample testing support.

* Accompany you to visit and inspect the production lines of Chinese factories to ensure your personal safety.

After sale service

* We will often go abroad to check our products.

* Engineers available to service machinery overseas.

curtain trailer vehicle Shipping Item:
