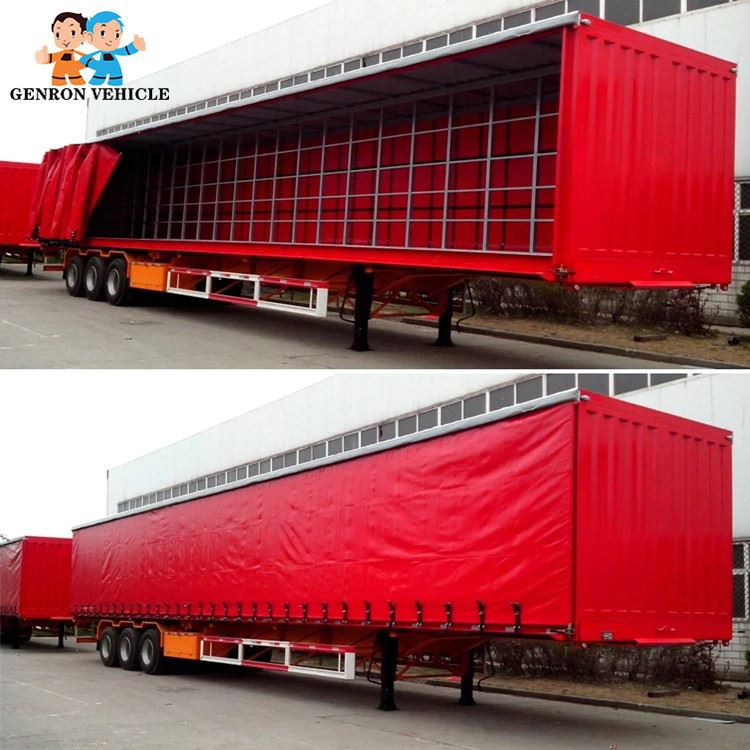

3 Axles Curtain Semi Trailer
The 3 axles curtain semi traile could delivery for light bubble goods and other bulk cargo ,such as rice ,bread ,beer ,water and so on. You could order the cord from us, we will give you a reasonable price . We can design the details dimension according to your requirement.
Send InquiryProduct Description
3 axles curtain semi trailer for light bubble goods and other bulk cargo | |
DIMENSIONS | |
Tare weight | 9000kg |

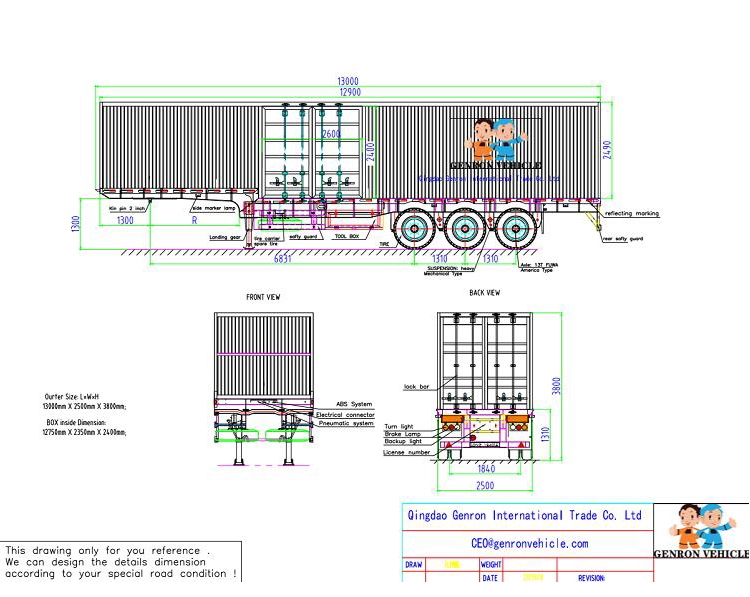

Size | 13000mm*2500mm*3700mm |
Payload | 60T |
Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 16mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm |
Side beam | 16# channel steel(Q235) |
Cross member | 10# channel steel(Q235) |
Floor | 3mm checkered plate |
Curtain | Height 2100mm |

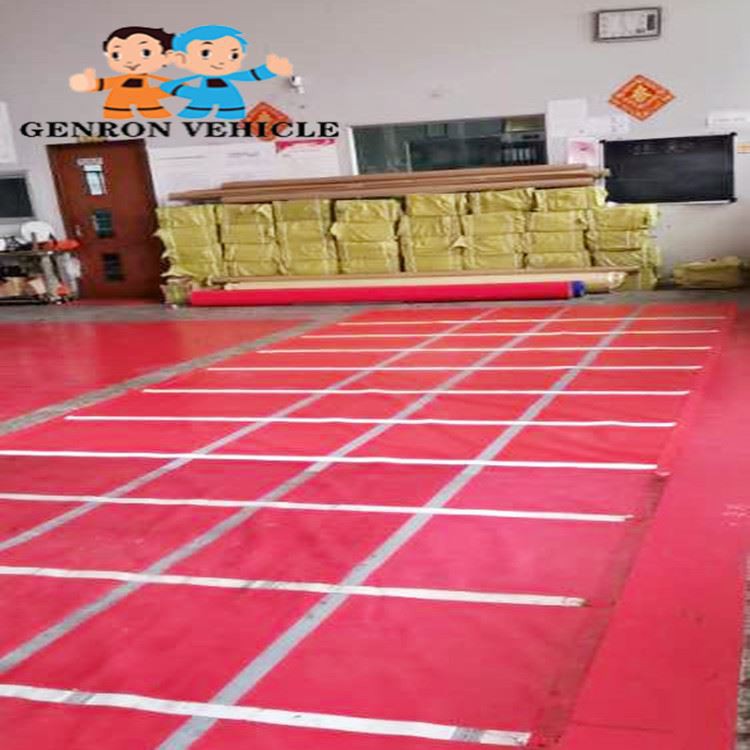

Curtain material | Best PVC |
Axle | 3 axles FUWA brand 13T |
Suspension | Mechanical suspension American type local brand |
Leaf spring | Leaf spring 10pcs*90*13mm |
Tire | 12R22.5 double star brand 12pcs |
Wheel rim | 9.0-22.5 china reliable brand 12pcs |
Kingpin | JOST brand 2” bolt-in king pin |
Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
Twist lock | Optional |
Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
ABS | Optional |
Light | LED 8 side lights and 2 rear lights 2 width lamp |
Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
Payment | T/T OR L/C |
Product Details
The advantages of the curtain semi trailer
Replacing iron with cloth is the best way to realize lightweight. Curtain semi trailer has its unique advantages in flexible operation and maximum attendance.
Improve cargo handling efficiency. In addition to loading and unloading at the rear of the curtain semi trailer , it can also be used on both sides or on the top of the vehicle .
In terms of appearance, the integrated side painting with advertisement or pattern is also more beautiful than the conventional trailer .
FAQ
We can design and produce according to your requirements, and show you the best-selling model pictures and reasonable best price.
After you accepted the offer price we have made to your company have the pre-interview ,you can come to visit our office and then go to visit factory ,we will arrange your everything in China. Or if you not sure which model of trailer or other product you should chose ,we can arrange our professional technical checking your market together with you.
We have our own technical team, we will gave you repaired method within 12 hours through calling or email. We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.
