Oil Tanker Semitrailer With Air Suspension
FOR TRANSPORTING diesel ,peteolum ,crude oil .edible oil ,palm oil ,liquid bitumen ,etc
Send InquiryProduct Description

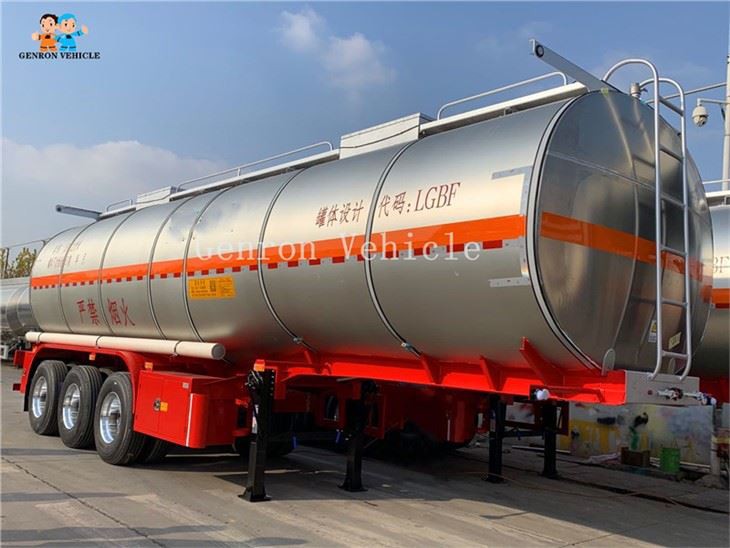

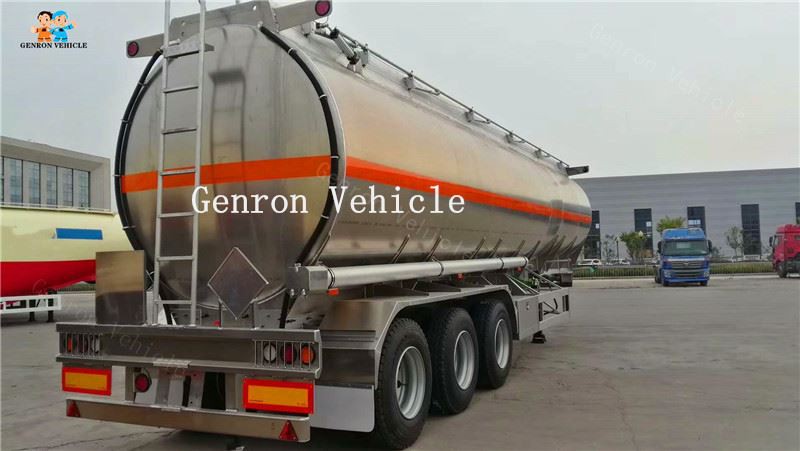

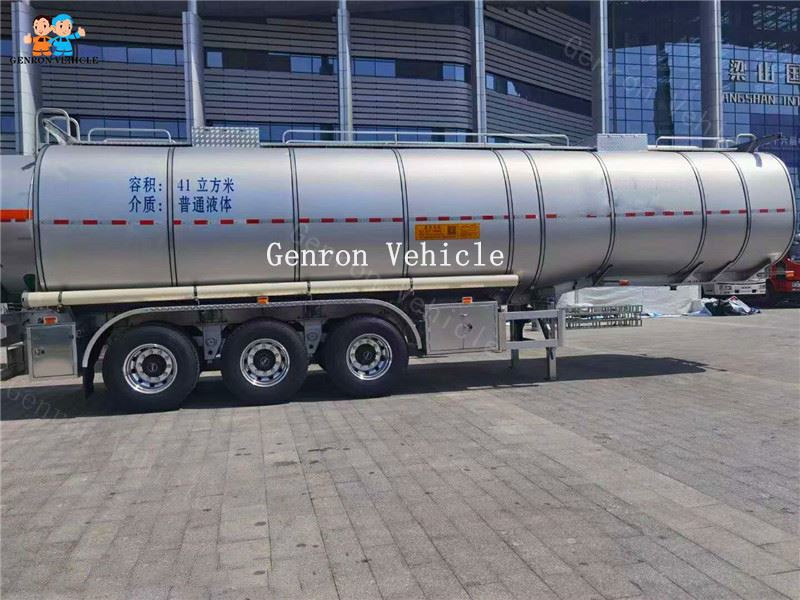

Aluminium oil tanker semitrailer with 3 axles 4 axles air suspension
1、FOR TRANSPORTING diesel ,peteolum ,crude oil .edible oil ,palm oil ,liquid bitumen ,etc
2. The oil semi-trailer is mainly used for the transportation of large-scale oil and liquid asphalt,
with a tonnage of about 40-60 cubic meters. There are usually two axle semi-trailer and three
axle semi-trailer. Q235 carbon steel plate, stainless steel or aluminum materials are mostly
used for the tank body of oil transport semi-trailer. The tank body is built with multi-channel
reinforced anti wave clapboard, and there are through holes at the lower end of the baffle plate,
so as to reduce the impact of oil in the tank and improve the strength of the tank body.

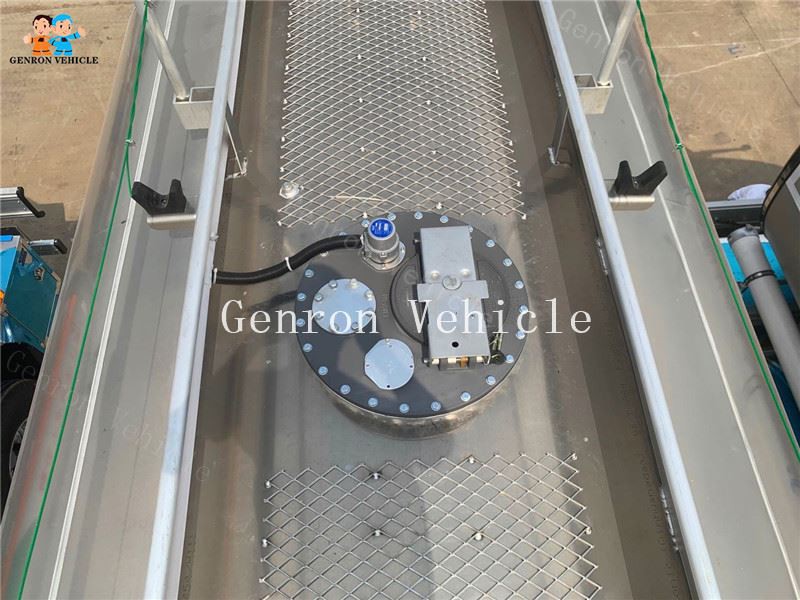

The combined tank mouth is located on the top of the tank body. There is a small self-locking
cover on the big cover. A breathing valve is installed on the upper side of the big cover to ensure
the consistent atmospheric pressure inside and outside the tank. There is an electrostatic grounding wire.
The pump oil system can be installed, and the force is taken from the gearbox side through the
power take-off device, which can be self-priming and self-discharging; it has two oil extraction pipes,
and is equipped with quick assembly joint, with a suction distance of 6m. Two fire extinguishers
and special tools. The oil semi-trailer is divided into two parts, the oil tank body and the framework
or bracket supporting the tank body
3. It can be designed separately according to the different needs of customers, or tell us that
the medium of the goods you carry is different. We will design the corresponding model for
you to meet the personalized needs of customers, and select different chassis, tank and tanker
according to the customer's needs.
4. The valve, discharge port and tank cover of tank car accessories are equipped according to
customers' habits, such as round or square.

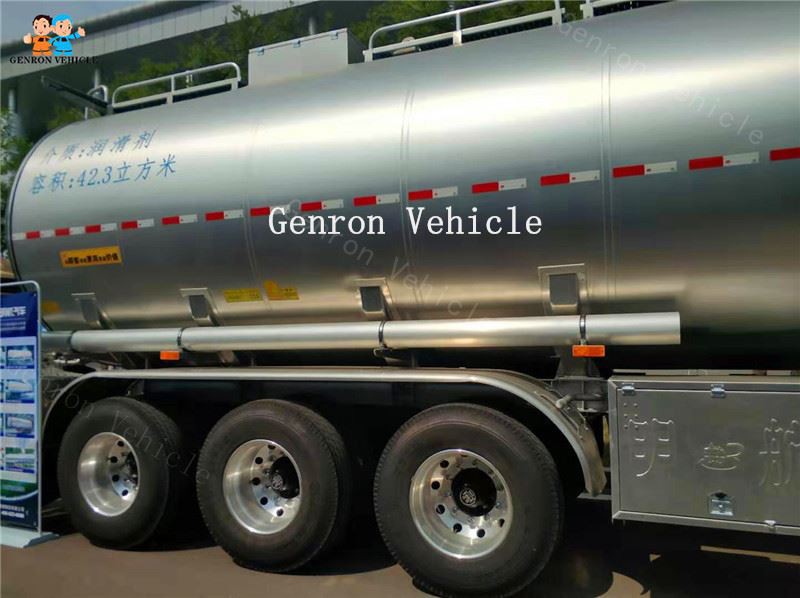

The Details of the Aluminium oil tanker semitrailer
Product Configuration
Aluminium oil tanker semitrailer with 3 axles 4 axles air suspension
Main Dimensions | |
Tank Body | |
Shape | Optional ( Round or Suare) |
Dimension | 12000mm*2490mm*3990mm ( Exact size depends on the final design) |
Tare weight | About 8000KGS-12800KGS |
Total Volume（m3） | 25m³-60 m³ |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel |
End Plate | 5mm or 6mm /Q235 carbon steel /aluminum /stainless steel |
Manhole Cover | Cabon steel or Aluminum alloy API manhole cover, 500mm |
Bottom Valve | Aluminum API Pneumatic Bottom Valve |
Discharging Valve | Diameter is 3 or 4 inch |
Compartments | Optional |
Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Weldding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material |
Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |

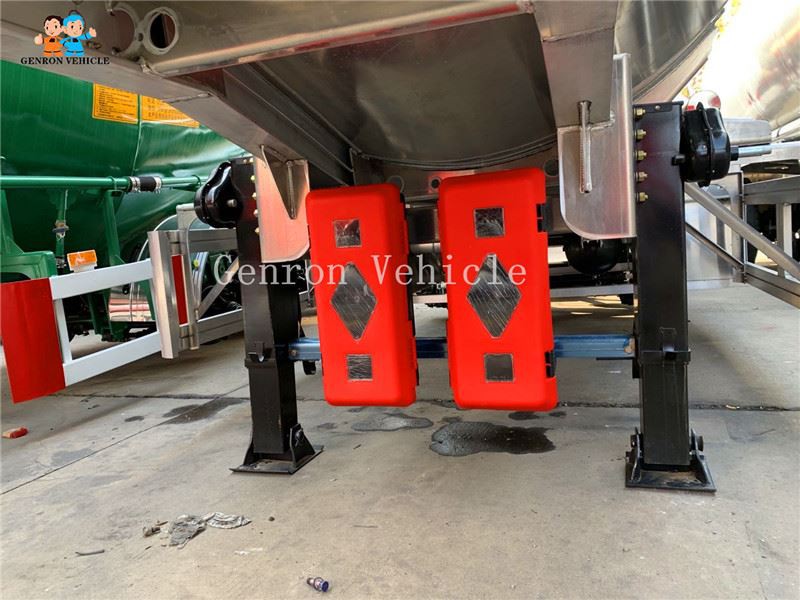

Landing Gear | JOST (D200T）or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |

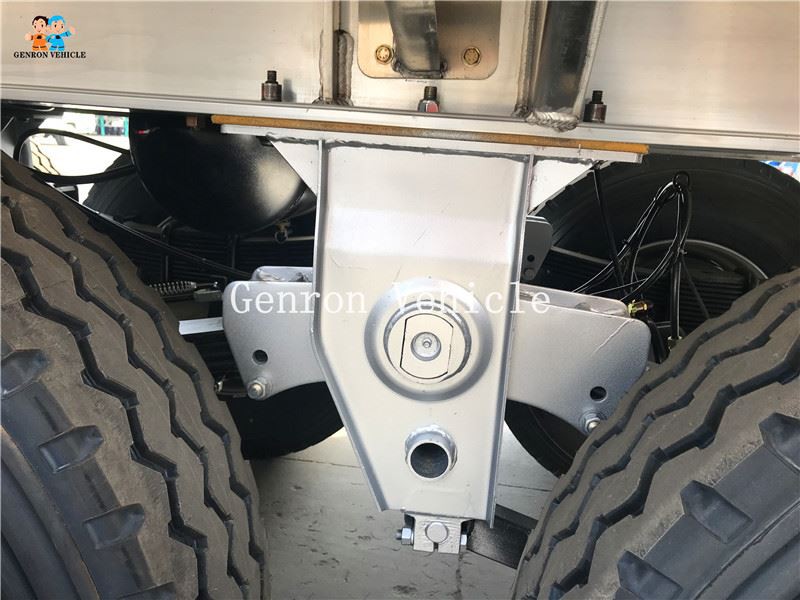

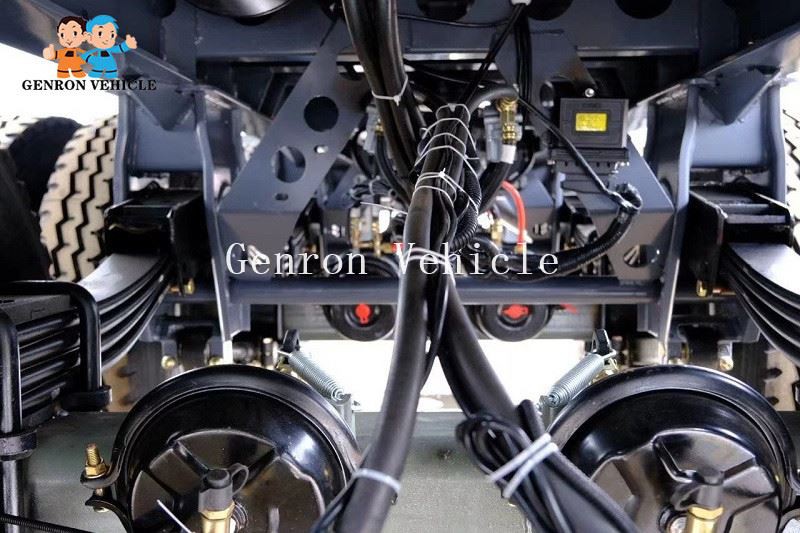

Suspension | Mechanical suspension/Germany or America type /air suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber（TKL brand）; one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |
Our Company
Qingdao Genron International Trade Co., Ltd Main Business is Exporting all kinds of trailers,
trailer parts and Man-hand Welding Machinery, Automatic Welding machinery, Trailer Production Line Etc.
We have our own factory which produce trailers for more than 15 years, Our CEO Mrs. Zhao have
11 years export Construction and trailer trucks experiences; She have visited more than 22 countries
for checking trailer truck markets. We can supply the right product in shortest ways and cheapest value.
The strong advantage of Genron company with other trading company is we have our own professional
technical design team.If you uncertain your products or your own design,we can go to visit you ,
help you checking and analysis your market and gave you special and right design according to
your country situation. As our more than 11 years overseas visited record and exporting business
experience focus on the trailer and truck filed ,we can gave you the right product in very short way.

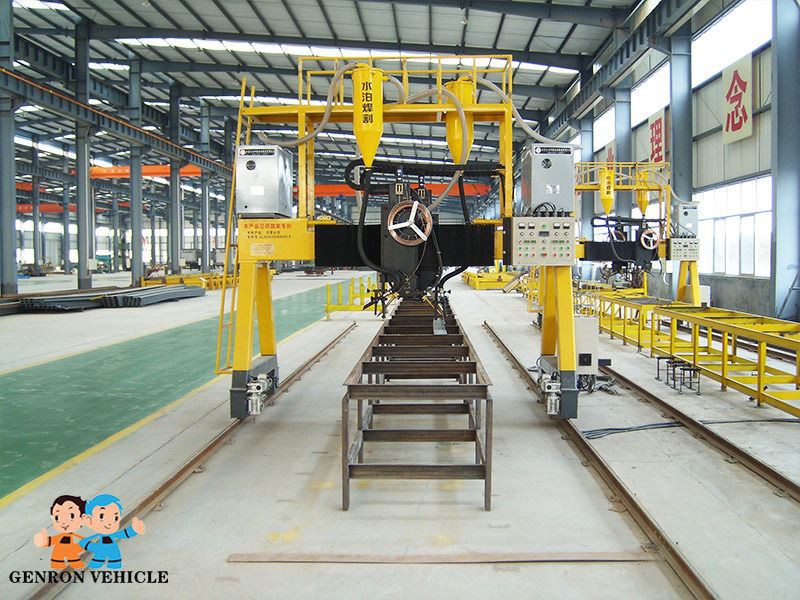

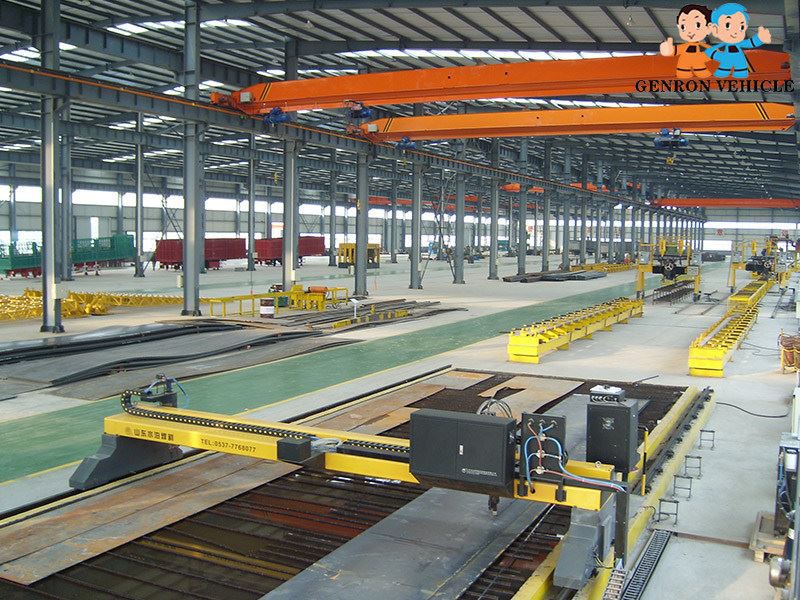

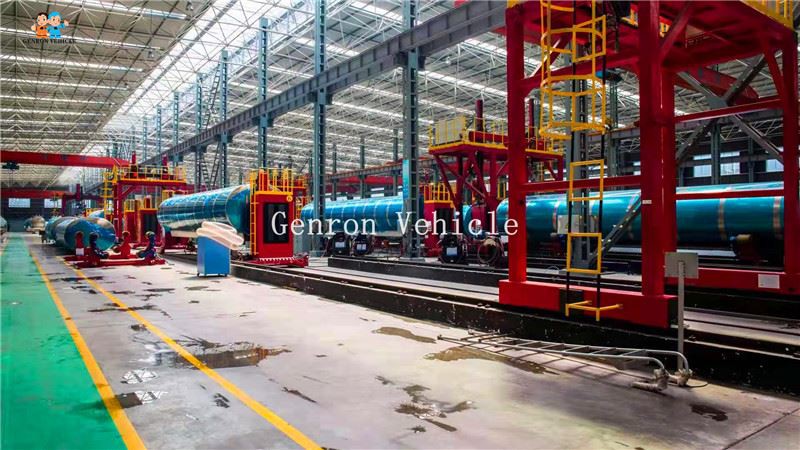

The Factory Workshop
Our Service
1.Before Sale Service
Quotation:
We will gave you the matched product details configuration and drawing according to your market ,
show you the best-selling model pictures and reasonable best price.
Reception & Accompany
After you accepted the offer price we have made to your company have the pre-interview ,you can
come to visit our office and then go to visit factory ,we will arrange your everything in China.
Or if you not sure which model of trailer or other product you should chose ,we can arrange
our professional technical checking your market together with you.
2.After Sale Service
We have our own technical team, we will gave you repaired method within 12 hours through calling or email.
We can go to visit you gave you technical guide after or before you buy ‘Genron’ products.
We will post to you all spare parts for free within guarantee period after the spare parts were
out of work which are under normal operation.
We can go to your place to teach your team how to operate the trailer or our machines .
Other Products

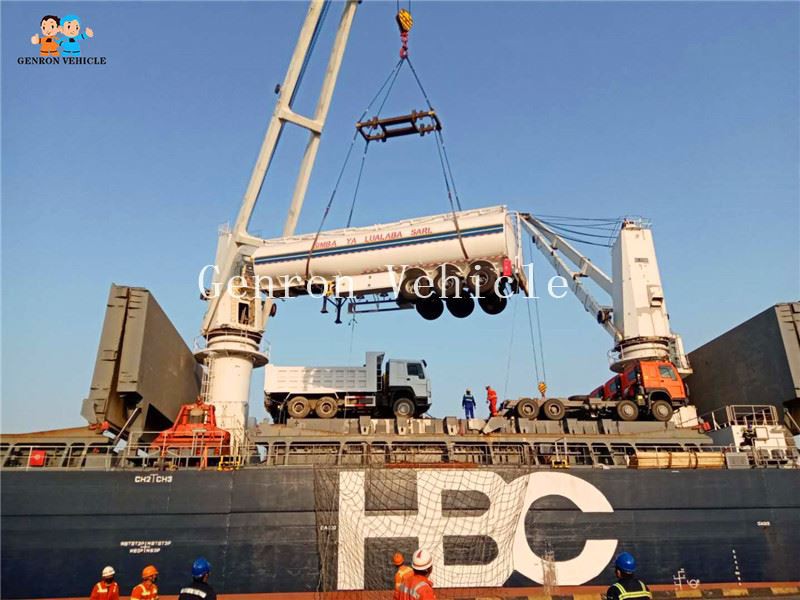

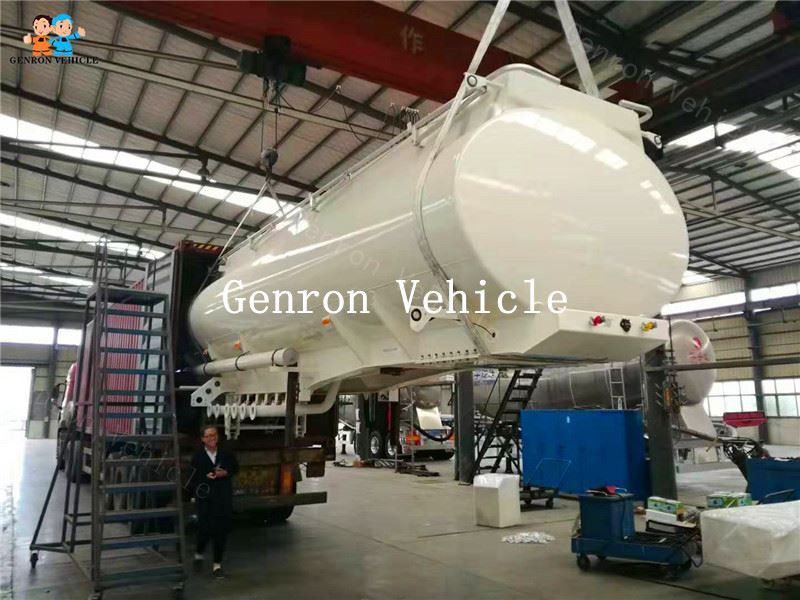

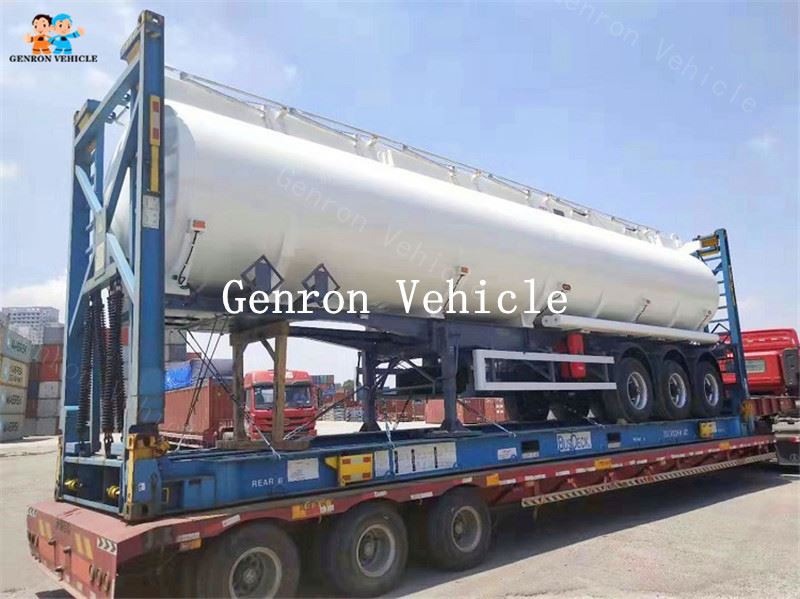

Delivery And Shipping
