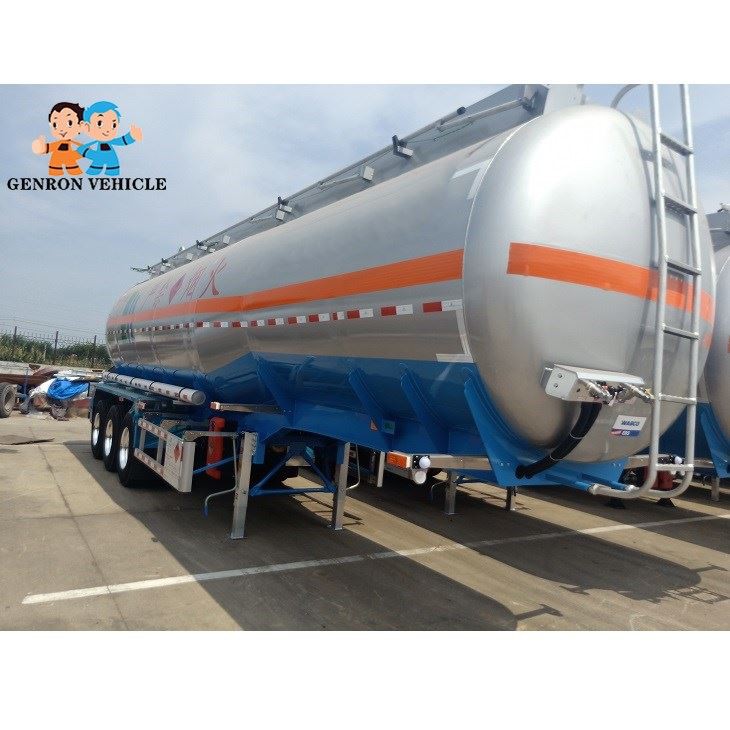

The Best Steel Aluminum Liquid Tanker Trailer
The best steel Aluminum 3 Axles liquid tanker trailer is ued to transport Oil, liquid asphalt, etc.
Send InquiryProduct introduction:
As a professional manufacturer in this field, we have now provided Chinese manufacturers with a wealth of practical experience in producing and managing three-axle tankers for Chinese manufacturers. we play a leading role in providing customers with high-quality products, very good suppliers and a competitive price range.
Main Dimensions | |
Tank Body | |
Shape | Optional ( Round or Suare) |
Dimension | 12000mm*2490mm*3990mm |
Tare weight | About 8000KGS-12800KGS |
Total Volume（m3） | 25m³-60 m³ |
Tanker Body Material | 5mm steel /aluminum /stainless steel |
End Plate | 5mm steel /aluminum /stainless steel |
Manhole Cover | Cabon steel or Aluminum alloy API manhole cover, ∮500mm |

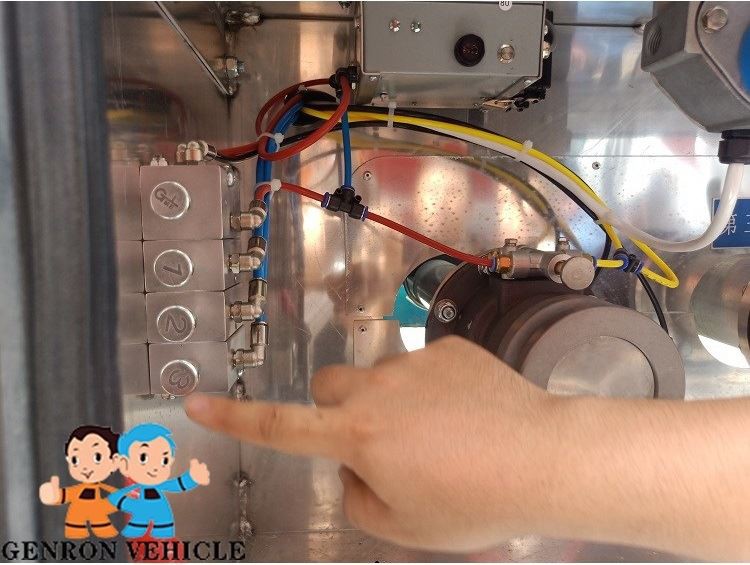

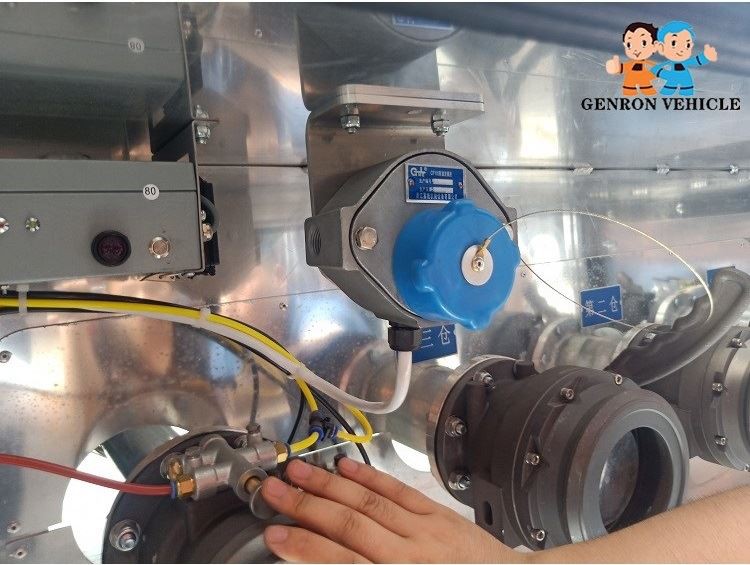

Bottom Valve | Aluminum API Pneumatic Bottom Valve |

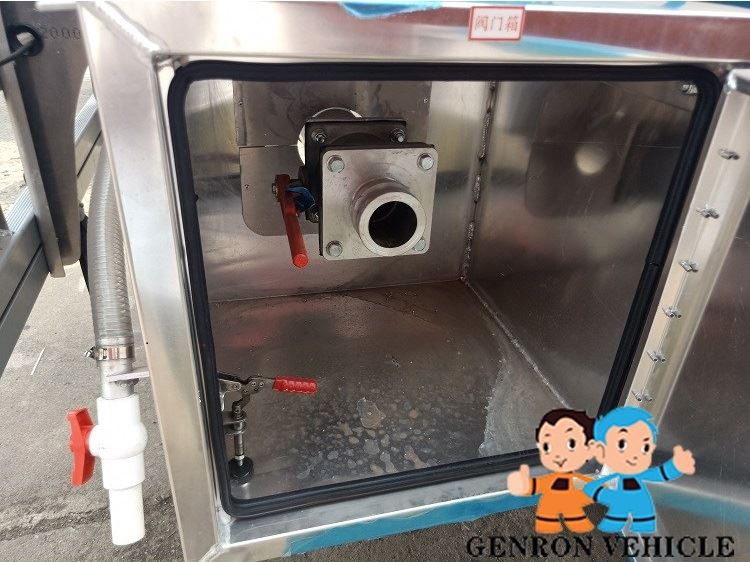

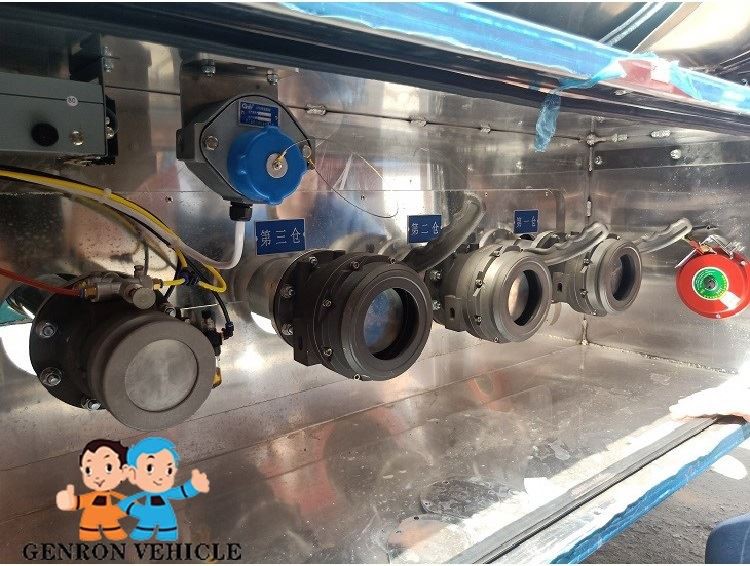

Discharging Valve | Diameter is 3 or 4 inch |
Compartments | Optional |
Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Weldding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material |
Axle | 3axles, BPW/FUWA/HUAJING brand |
Landing Gear | CHINA BRAND 28T |
King Pin | JOST 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /air suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber（TKL brand）; one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |
Detail information:
Optional Parts For You Choose:
1. Axle quantity: 2 axle 3 axle 4 axle
2. Volume: 10 cube meters to 70 cube meters
3. Axle brand: FUWA / BPW and so on with different tonnages by your need with price diffefrence.
4. Suspension: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. Material: Carbon steel/aluminum/stainless steel material
Advantage :
1Main frame is made of high strength low alloy steel, which can fully enhance its abilities of resistance to torsion, anti-seismic and anti-jolt, and meet the various loading requirements.
2The tanker can be produce with 1 compartments to 7 compartments according to customer demand
3Axles: The axle can be selected in different famous brand of BPW and FUWA. Domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
4Suspension system: Mechanical suspension and air suspension series optional.
5Single tire or double tire is optional
