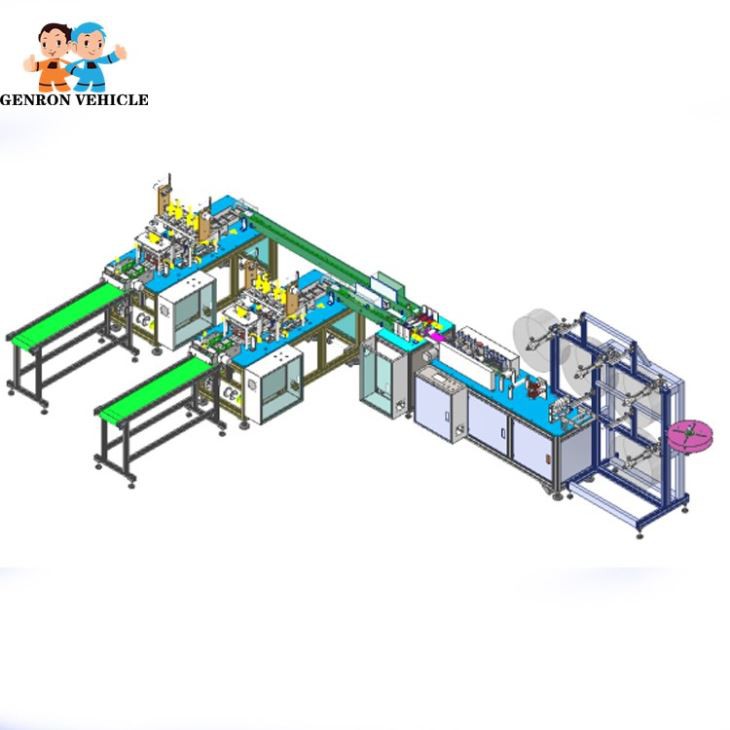

Automatic Disposable Mask Making Machine
This machine is mainly used for automatic forming of plane mask: the whole roll of cloth is driven by roller after being unrolled, and the cloth is folded and wrapped automatically.The nose bridge strip is rolled up for traction and unrolled. After cutting with a fixed length, it is imported into the edge cloth. The two sides are welded to the seal by ultrasonic welding.The mask was transported to two mask ear belt welding stations by the assembly line, and the mask was finally formed by ultrasonic welding.After the mask is made, it is transported to the flat belt line through the assembly line for collection.
Send InquiryChat NowProduct details:
Applicable specifications
Item
| Number of hanging shafts | Width (mm) | Outside diameter of coil (mm) | Inside diameter of barrel (mm) | Weight |
Cloth | 3 | 170~200 | Φ600 | Φ76.2 | Max 15kg |
Bridge of nose | 1 | 3-7 | Φ400 | Φ76.2 | Max 25kg |
Earband | 4 bags | 3 | —— | —— | —— |
This machine is mainly used for automatic forming of plane mask: the whole roll of cloth is driven by roller after being unrolled, and the cloth is folded and wrapped automatically.The nose bridge strip is rolled up for traction and unrolled. After cutting with a fixed length, it is imported into the edge cloth. The two sides are welded to the seal by ultrasonic welding.The mask was transported to two mask ear belt welding stations by the assembly line, and the mask was finally formed by ultrasonic welding.After the mask is made, it is transported to the flat belt line through the assembly line for collection.

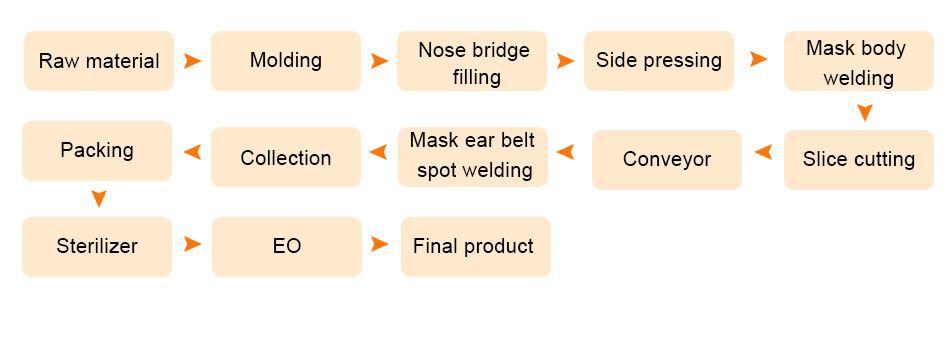

Equipment production flow chart

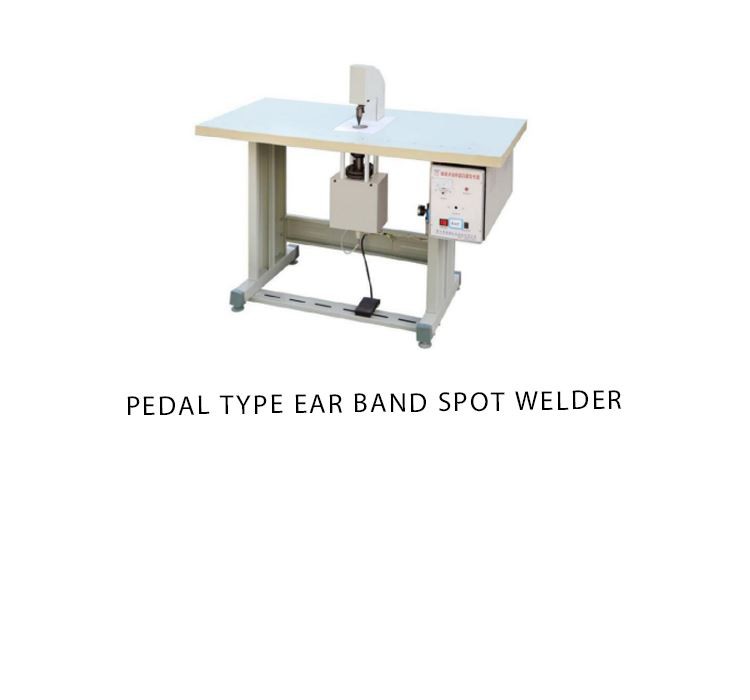

Our company can supply fully automatic production line to achieve the above manufacturing process Fully automatic equipment is all-in-one machine , including 1 mask slicer cutting machinery and 2 mask ear belt spot welding machines to achieve fully automatic production for raw material feeding and packaging final product.
