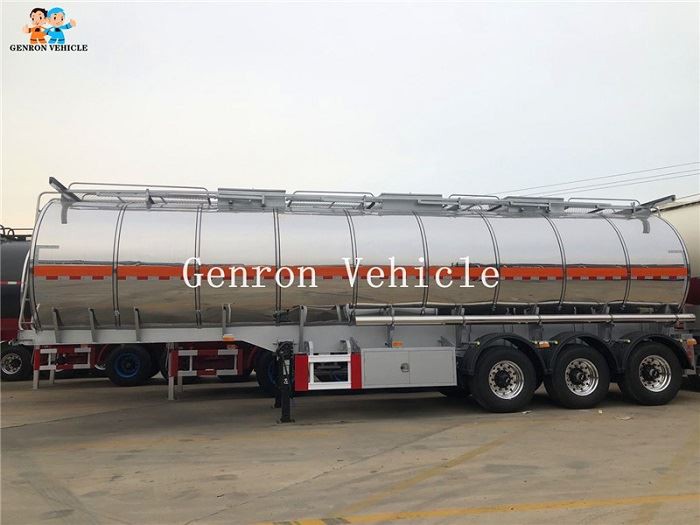

Fuel Tanker Semi Trailer 45000 Liters 3 Axles
FOR TRANSPORTING diesel ,peteolum ,crude oil .edible oil ,palm oil ,liquid bitumen ,etc
Send InquiryChat NowProduct Display
Product Description
1、FOR TRANSPORTING diesel ,peteolum ,crude oil .edible oil ,palm oil ,liquid bitumen ,etc
2. Oil semitrailer is mainly used for large oil, liquid asphalt and other transportation, the tonnage is
generally about 40 ~ 60 cubic meters. There are usually two axle semi-trailer and three axle semi-trailer.
The tank body of oil transportation semi-trailer is mostly made of Q235 carbon steel plate, stainless steel
or aluminum material. The tank body is built with multi-channel reinforced anti wave partition plate,
and there are through holes at the bottom of the partition plate, so as to reduce the impact of oil in the
tank body and improve the strength of the tank body. The combined tank mouth is located on the top of
the tank body. There is a small self-locking cover on the big cover. A breathing valve is installed
on the upper side of the big cover to ensure the consistent atmospheric pressure inside and outside the tank.
There is an electrostatic grounding wire. The pump system can be selected and installed, and the power can
be taken from the gearbox side through the power take-off, which can be self-priming and self discharging;
with two oil pumping pipes, equipped with quick fitting joint, the suction head is 6m.
Two fire extinguishers and special tools. The oil semi-trailer is divided into two parts, the tank body and the
framework or bracket supporting the tank body.
3. It can be designed separately according to the different needs of customers, or tell us that the
medium of the goods you carry is different. We will design the corresponding model for you to meet
the personalized needs of customers, and choose different chassis, tank and tanker according to the needs of customers.
4. The valve, discharge port and tank cover of tank car accessories are equipped according to customers' habits,
such as round or square.

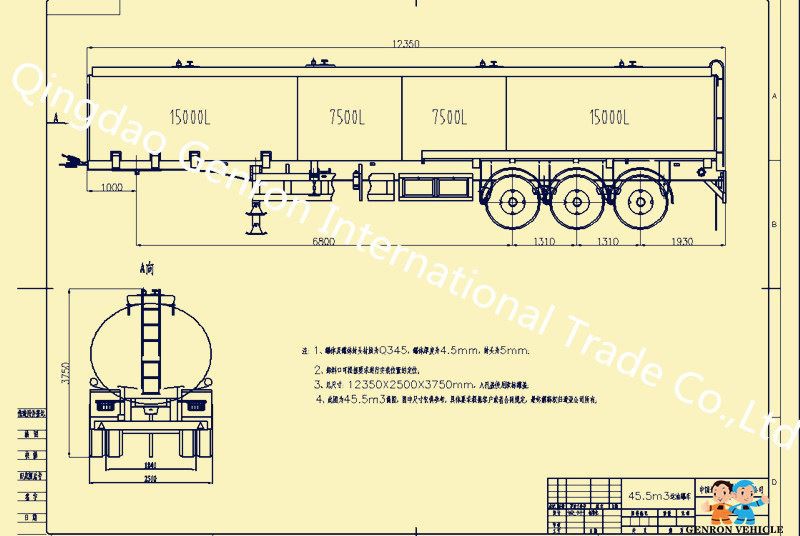

The Drawing Of the Fuel oil tanker semi trailer
The configuration
Heavy duty Fuel oil tanker semi trailer Aluminium 45000 Liters 3 axles
Main Dimensions | |
Tank Body | |
Shape | Optional ( Round or Suare) |
Dimension | 12000mm*2490mm*3990mm ( Exact size depends on the final design) |
Tare weight | About 8000KGS-12800KGS |
Total Volume（m3） | 25m³-60 m³ |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel |
End Plate | 5mm or 6mm /Q235 carbon steel /aluminum /stainless steel |
Manhole Cover | Cabon steel or Aluminum alloy API manhole cover, 500mm |
Bottom Valve | Aluminum API Pneumatic Bottom Valve |
Discharging Valve | Diameter is 3 or 4 inch |
Compartments | Optional |
Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Weldding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material |
Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
Landing Gear | JOST (D200T）or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /air suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber（TKL brand）; one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |

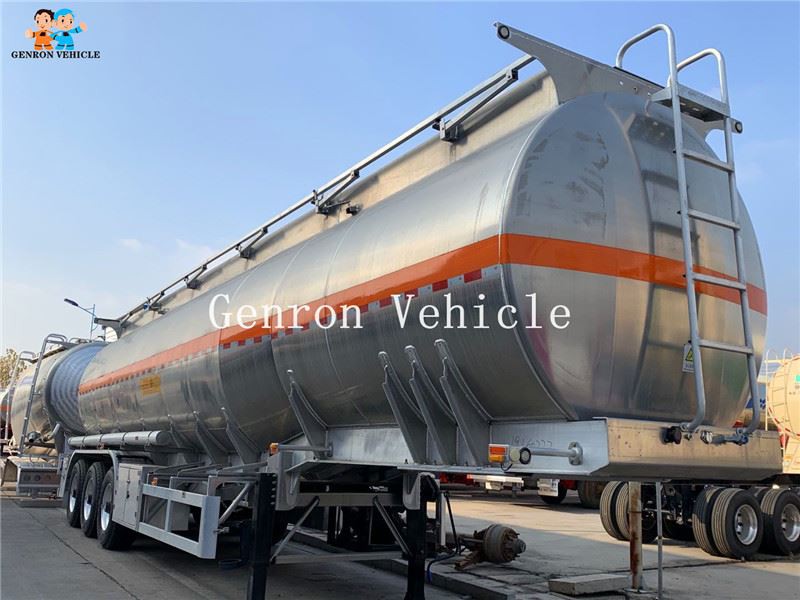

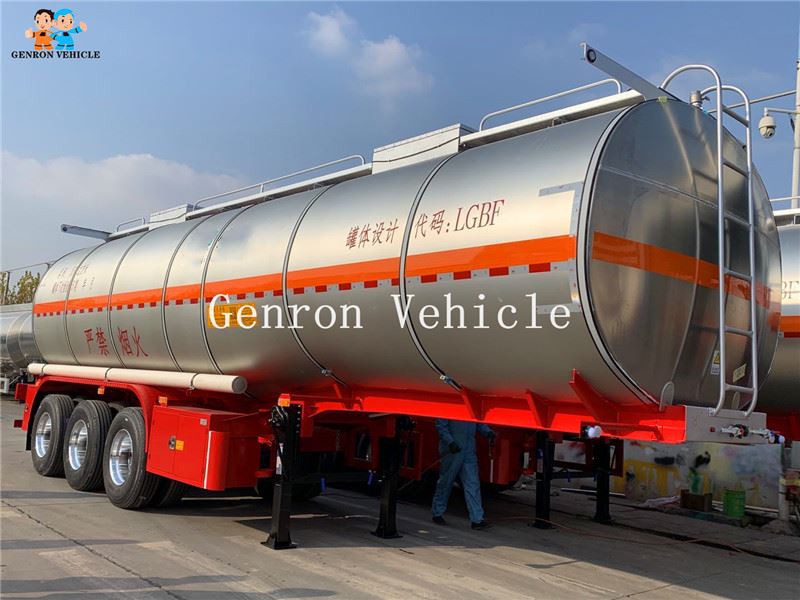

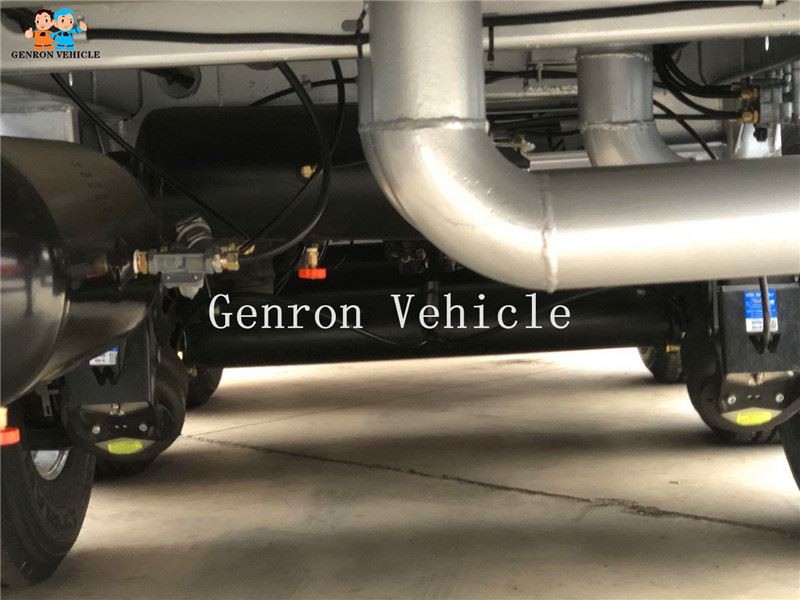

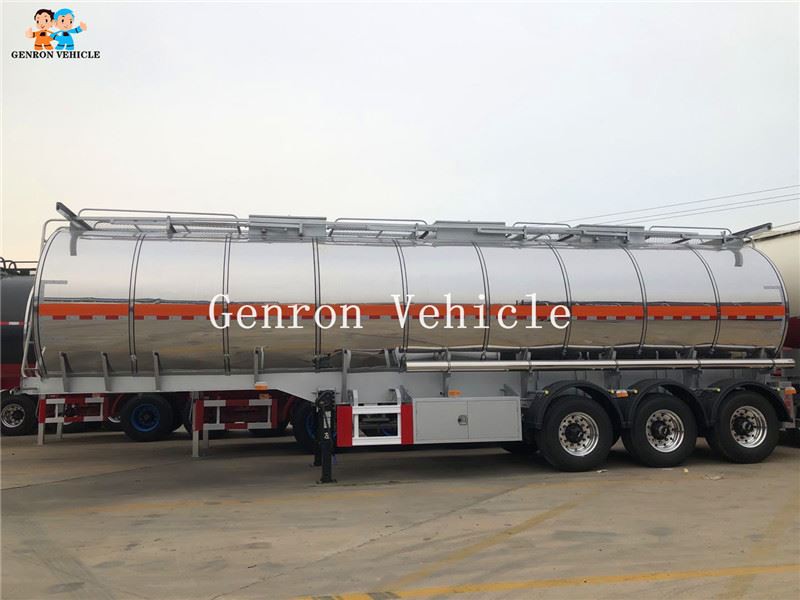

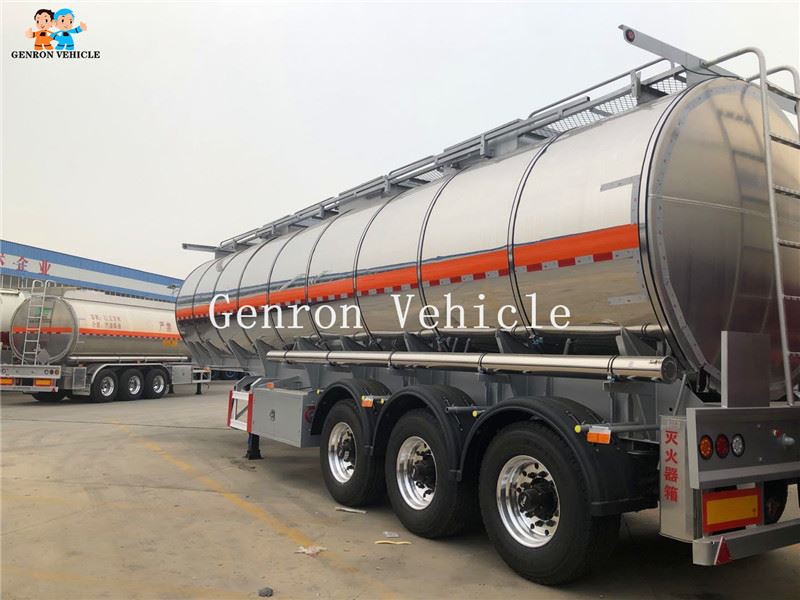

The Details Of the Heavy duty Fuel oil tanker semi trailer Aluminium 45000 Liters 3 axles

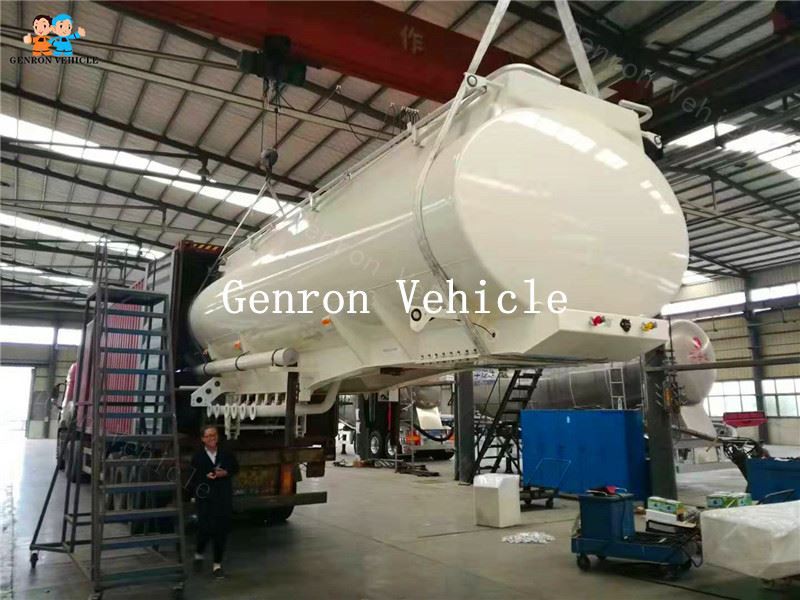

The Factory Workshop
Delivery & Shipping
FAQ
Q:Which semi trailer brand is best in China?
A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .
The best expensive brand is CIMC ( this is government company ).Genron is private company ,
we can supply low price in high quality .
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money .
Q: What’s your payment terms?
A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time
after production finished and inspection .
2.L/C at sight .
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it.
Q:How many cities have been exported ?
A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
