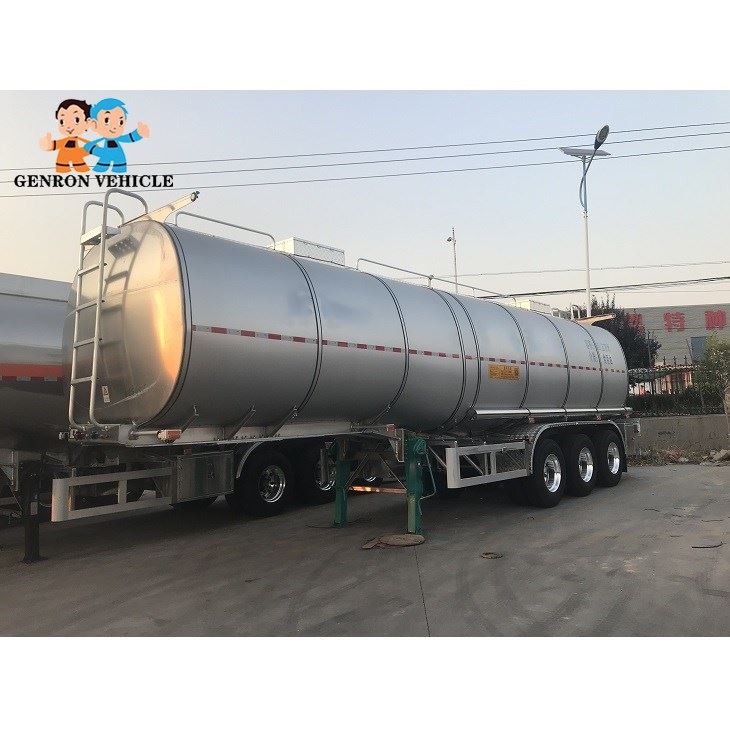

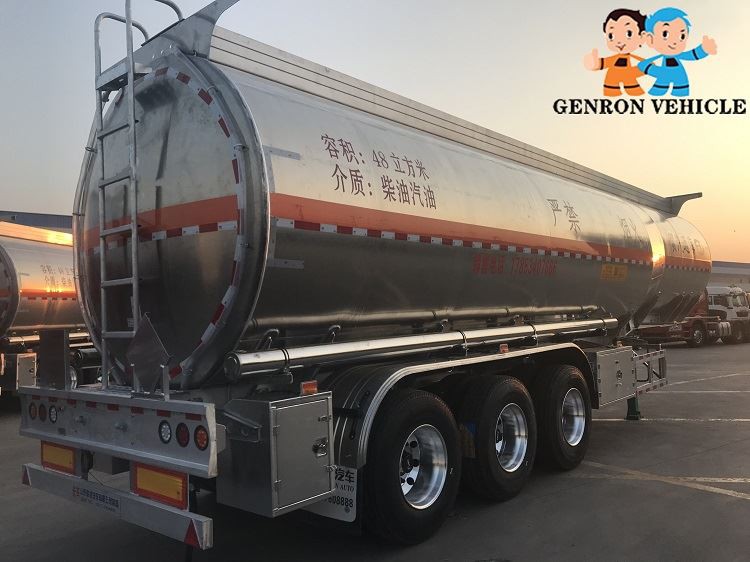

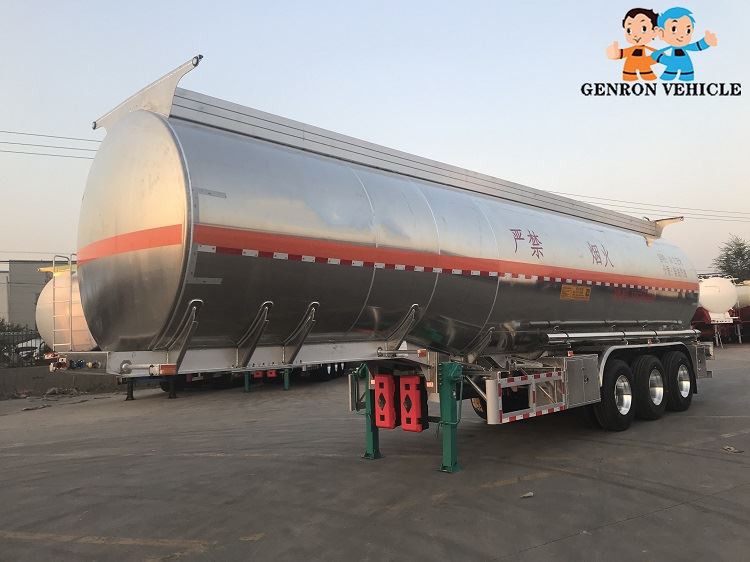

3 Axles Liquid Tanker Trailer
3 Axles liquid tanker trailer used to transport Gasoline, kerosene, diesel oil, vegetable oil, edible oils, heavy oils, coal tar
Send InquiryProduct introduction of the 3Axles liquid tanker trailer :
Main Dimensions | |
Tank Body | |
Shape | Optional |
Dimension | 12000mm*2490mm*3990mm |
Tare weight | About 8000KGS-12800KGS |
Total Volume（m3） | 25m³-60 m³ |
Bottom Valve | Aluminum API Pneumatic Bottom Valve |
Discharging Valve | Diameter is 3 or 4 inch |
Compartments | Optional |
Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Welding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material |
Axle | 3 axles, BPW/FUWA/GV brand |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | 12.00R22.5 Brand is optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |
Optional Parts For You Choose:
1. Axle quantity: 2 axle 3 axle 4 axle
2. Volume: 10 cube meters to 70 cube meters
3. Axle brand: FUWA / BPW and so on with different tonnages by your need with price diffefrence.
4. Suspension: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. Material: Carbon steel/aluminum/stainless steel material
