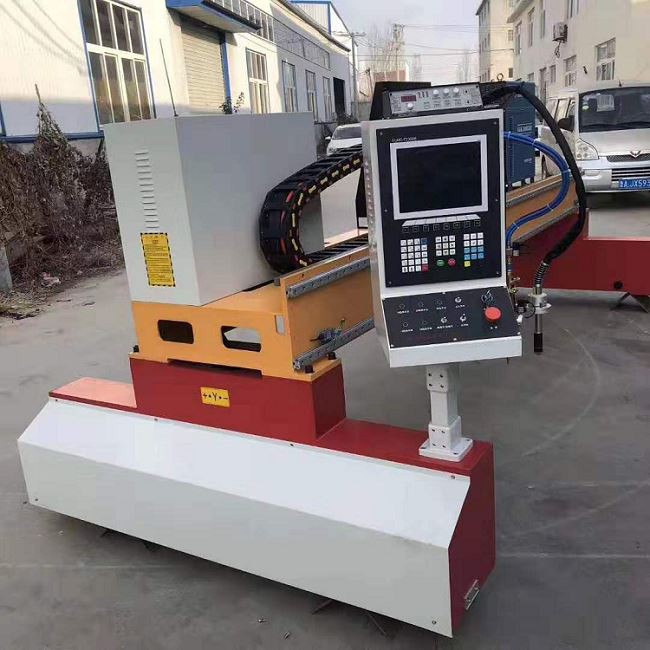

Plasma Cutting Machine
The plasma cutting machine is used to cut the carbon steel, the stainless steel and the non-ferrous metal sheets, featuring in high speed and good cutting quality, which is an ideal choice for high quality cutting. The beam is made of profiled steel of good intension; each part is precisely processed to ensure the correct position. The processing of the double-side drive mode makes sure of Smooth running. And all the welded parts have a destress processing to avoid deformation.The horizontal transmission adopts the gear assembly equipped with the precise slowdown device. It features in strong torque, low noise and long life.
Send InquiryChat NowMachine Technical Parameters
TECHNICAL SPECIFICATIONS | |
Effective Cutting width (can be customized) | 2000-5000mm |
Effective Cutting Length (can be customized) | 6000-13000mm |
Cutting plate material | Stainless steel plate / carbon steel plate / copper plate / iron plate / titanium alloy plate / cold rolled plate and other materials |
Thickness of plate | 1-20mm(Depending on the power supply) |
Cutting process | Plasma precision cutting |
Effect of the Cutting Seam | Ra≤12.5μm |
Cutting Speed | 500-5000mm/min |
Cutting power | Huayuan power supply (multiple models optional) |
Input voltage | AC220V/50Hz |
control system | Beijing Starfire control system |
Adjustment High way | Hongyuda professional arc voltage automatic elevation system |
Drive way | Double side drive |
cutting torch | Plasma cutting torch |

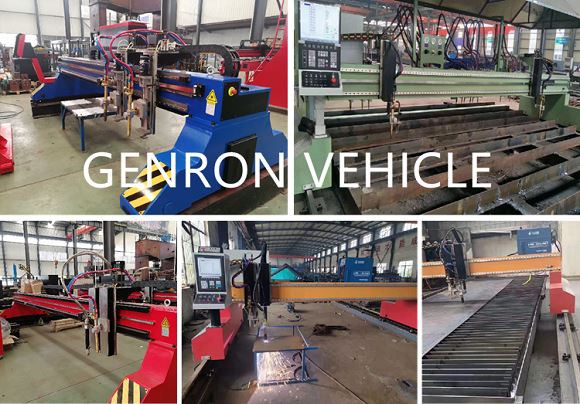

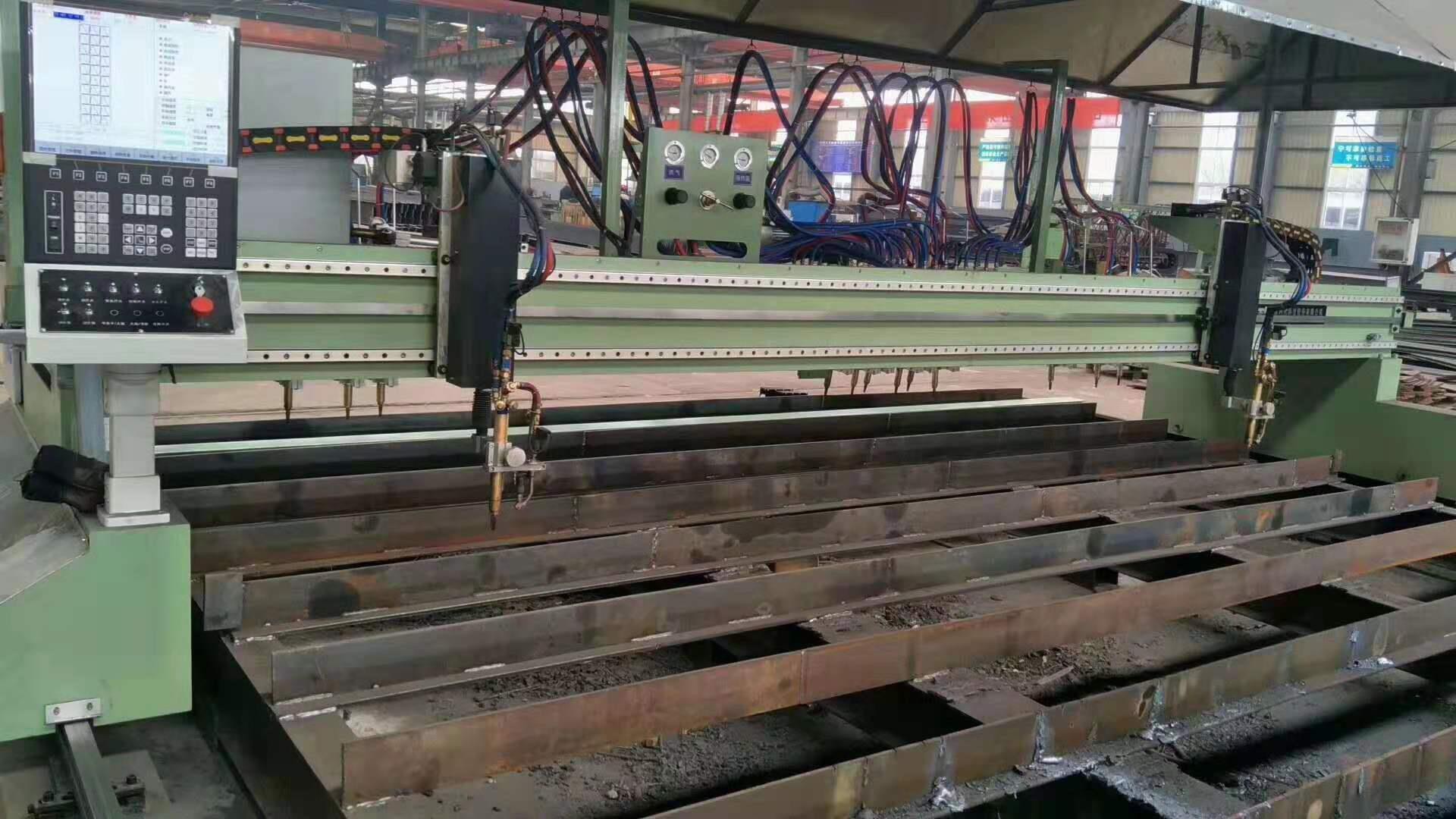

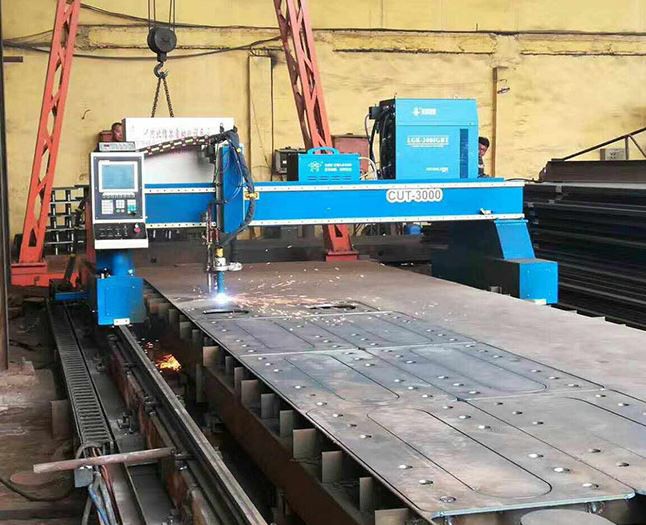

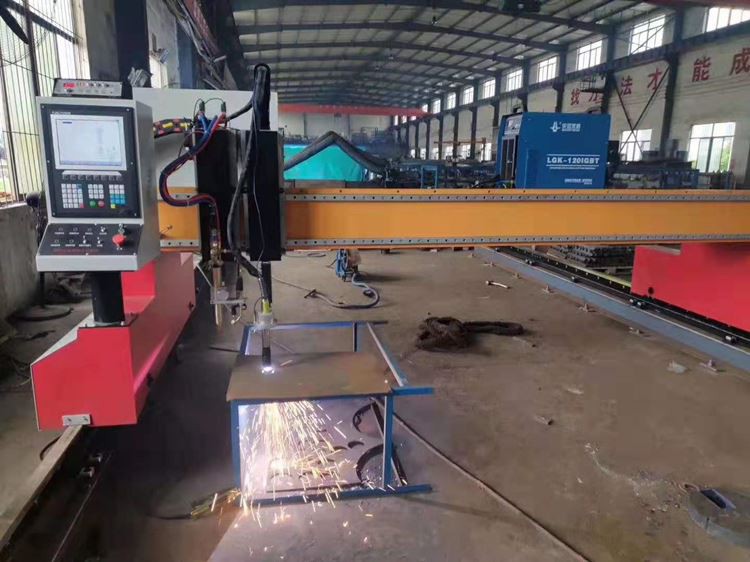

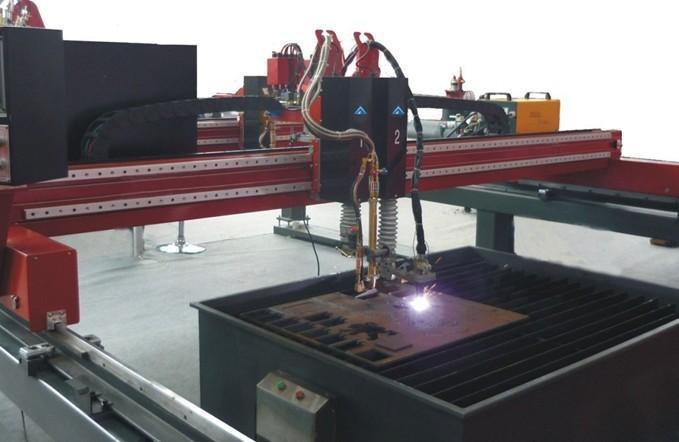

Application example
Different types of plasma power can be supplied according to the needs of customers.

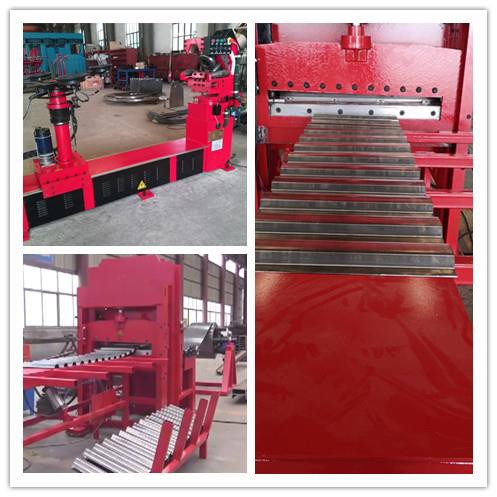

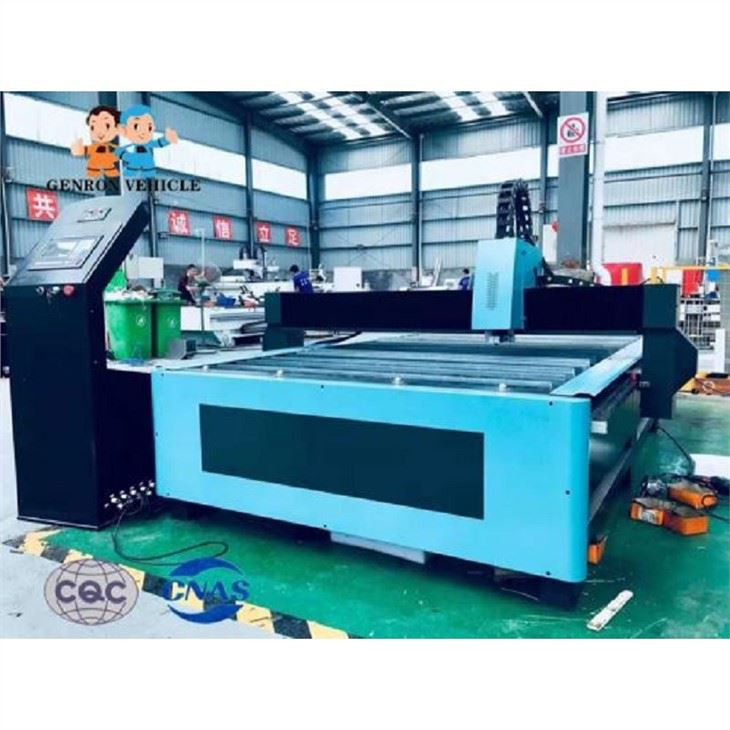

Other types:
