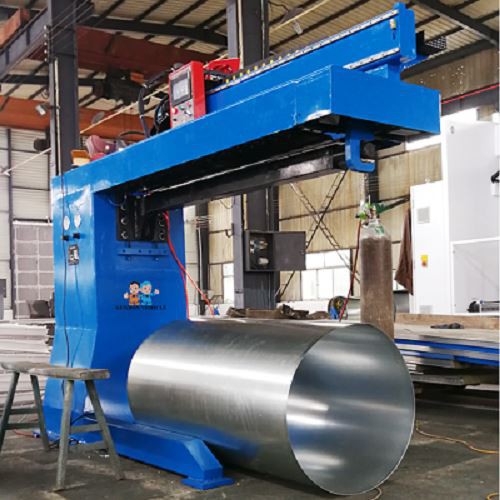

Sheet Metal Longitudinal Welding Machines
This product feature is ensure that the steel is flat,one-Side is Welded; Two Sides are Shaped.The width of the welding seam is 5-12mm.There are clean and beautiful seam on both sides, round and smooth transfers.Ensure within 30 mm near the weld seam and the weld seam without oil, burr, rust and other defects.The gap between two plates less than 1mm.Must add arc starting and arc stopping plate.
Send InquiryChat NowDeuma Sheet Metal Longitudinal Welding Machines for Small Diameters TECHNICAL SPECIFICATIONS | |
Welding Length | 3000mm |
Welding palte material | Carbon steel, stainless steel, galvanized sheet, aluminum alloy |
Thickness of workpiece | 0.5mm-1.5mm /2mm-8mm |
Welding process | TIG/MIG |
Welding power source | SAF / Miller/ Panasonic |
Effect of the Welding Seam | One-Side is Welded; Two Sides are Shaped(Finished) |
Method of Pressing the stainless steel plate | The Cylinder help Pressed |
Welding Speed | 100-1500mm/min |
Molding channel material | Red copper |
Molding channel cooling type | Water-cooling (cooling water should use antifreeze) |
Walking speed (empty) | Infinitely variable speeds (The adjusting range is 0 to 4000 mm/min) |
Weld adjusting | Manual fine-tuning |
Power | 30KW |
Welding torch quantity | 1 set |
Feeding dolly | 1 set |
Boundary dimension | 5200mm×2500mm×3000mm |
Weight | About 6T |
Production Term | 65 days |
FEATURES
To ensure that the steel is flat,one-Side is Welded; Two Sides are Shaped. |
The width of the welding seam is 5-12mm |
There are clean and beautiful seam on both sides, round and smooth transfers. |
Ensure within 30 mm near the weld seam and the weld seam without oil, burr, rust and other defects. |
The gap between two plates less than 1mm; |
Must add arc starting and arc stopping plate. |
Sheet Metal Longitudinal Welding Machines
Other type

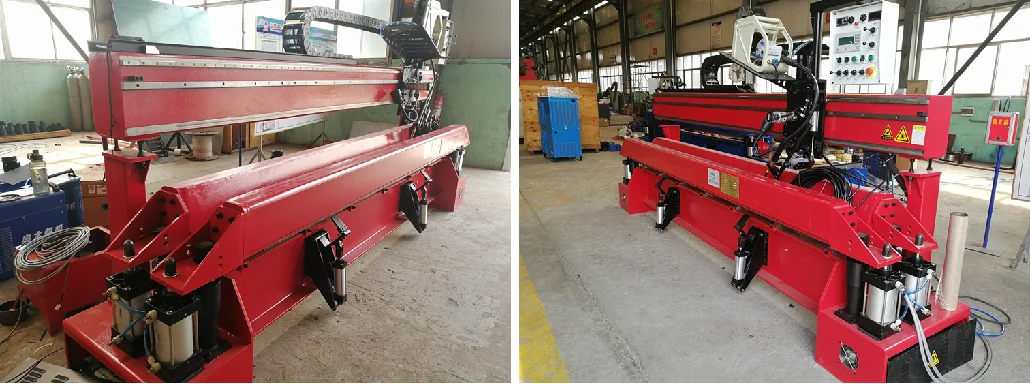

Automatic Flat Butt Welding Machine
