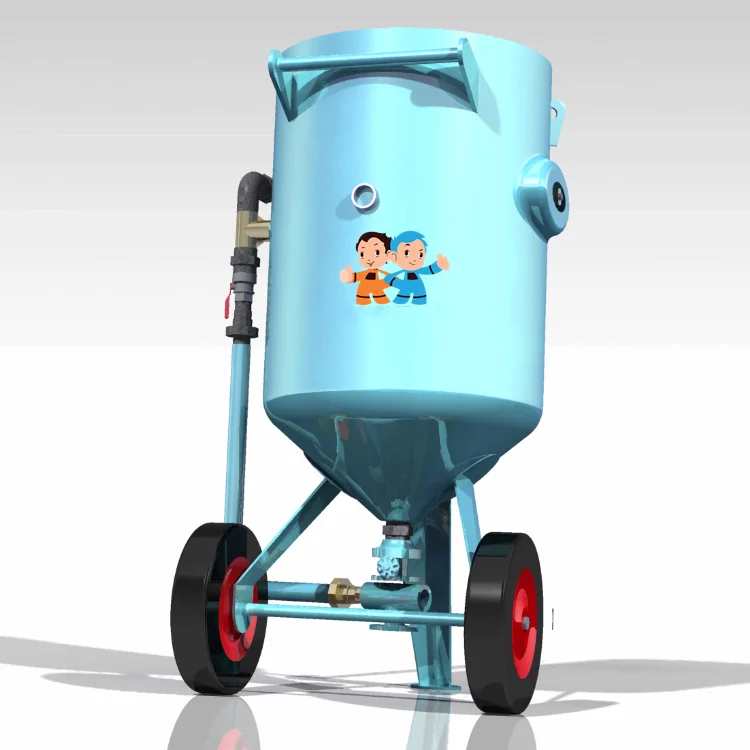

Sand Blasting Machine
The machine adopts the pressure blasting (shot peening) mechanism, that is, the high-pressure effect is formed by the high-speed flow of compressed air in the high-pressure tank, the sand in the high-pressure tank is ejected through the sand conveying pipe, and then it is ejected to the workpiece surface by the nozzle of the spray gun with the compressed air flow, so as to achieve the purpose of sand blasting.
Send InquiryChat NowProduct characteristics:
1. full function, complete set, fast speed, simple and convenient operation;
2. As long as there is a compressed air source, high efficiency surface cleaning and polishing sandblasting can be carried out;
3. Manual or pneumatic sandblasting mode can be selected according to actual needs;
4. Introduce advanced technology from abroad, conduct efficient derusting and cleaning, and the surface grade can reach sa2.5-sa3;
5.Good applicability to sand, all kinds of sand can be used, can be shot blasting.

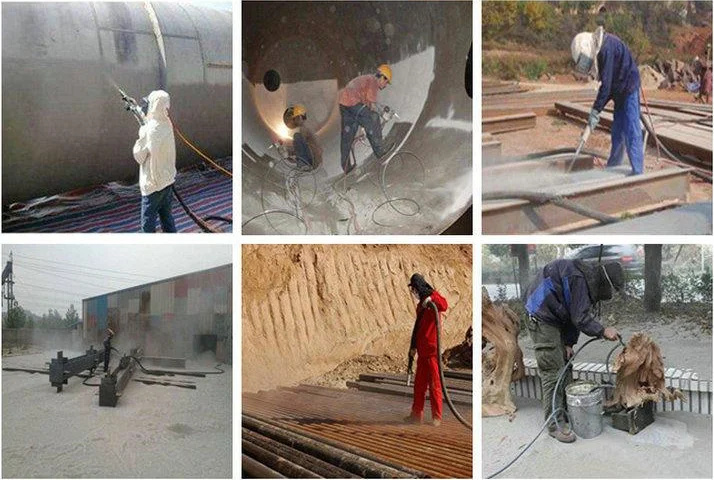

Scope of use:
1.metal structure derusting, large steel structure, fitness equipment.Ship repair, Bridges, mines, machinery, oil pipelines, water conservancy projects, water towers, freight cars, guardrails, stone raw material peeling, casting metal sheet peeling, ships, marble slabs.
2.Sandblasting machine is suitable for extensive abrasive river sand, sea sand, quartz sand, copper ore sand, emery sand, steel sand, etc., it is suitable for sandblasting between, sandblasting room, open sandblasting operations in the open field, applied to the special material, hard material work pieces of oxide processing work.
Main technical specifications | |
Overall size | Φ622*1540(mm) |
weight | 65kg |
Working gas pressure | 0.5-0.8MPa |
Power Supply | 220V 50Hz |
Sandblasting machine structure | |
1) the shell is made of 5-8mm cold-rolled steel plate by welding, and the surface is sprayed with plastic. 2) equipped with 8mm large boron carbide nozzle. 3) the sand volume can be adjusted by the handle under the machine body. 4) this machine is equipped with 9 m sand pipe. 5) manual travel pneumatic switch (convenient for operation). 6) the machine is required to be equipped with an air compressor of more than 1 cubic meter (15 KW). 7) the machine can handle 15-20 square meters per hour. | |
Sand blasting machine working principle | |
The machine adopts the pressure blasting (shot peening) mechanism, that is, the high-pressure effect is formed by the high-speed flow of compressed air in the high-pressure tank, the sand in the high-pressure tank is ejected through the sand conveying pipe, and then it is ejected to the workpiece surface by the nozzle of the spray gun with the compressed air flow, so as to achieve the purpose of sand blasting. | |
Composition of sand blasting system, screw air compressor ,air storage tank,sandblasting machine,high pressure connection pipe ,sandblasting pipe ,sandblasting suit.
