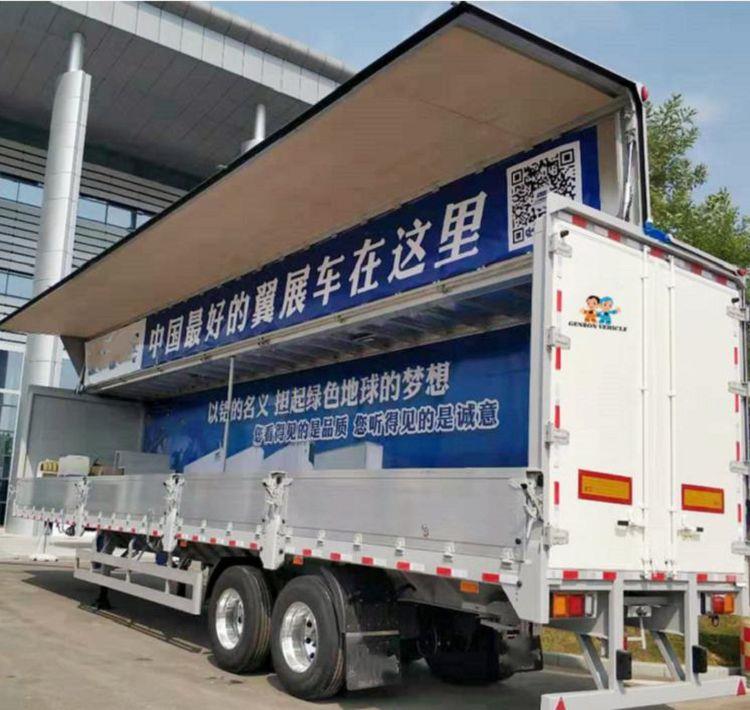

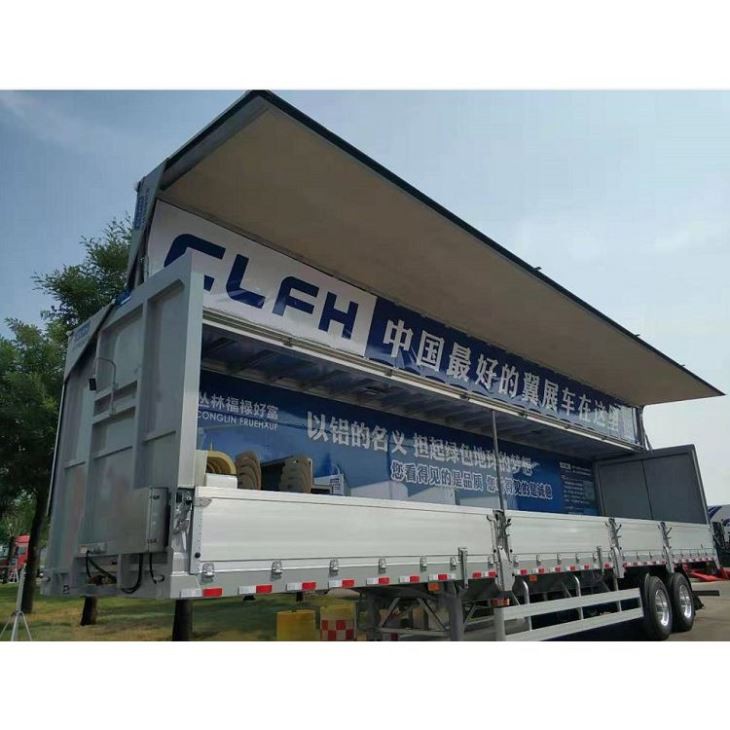

Bulk Cargo Trailer

Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and better fuel economy.

Send Inquiry Chat Now

96.5(001)

1.Bulk Cargo Trailer –Transport for light bubble goods and other bulk cargo.

Tare Weight	About 8.3T
Dimension	13000mm2490mm2860mm (Outer side) 1280023001800mm (work space)
Loading Capacity (T)	≤ 60 T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	9.00-22.5 9.75-22.5, 8.25-20
Tire	12.00R22.5/ 315 80R22.5 12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Side beam	16mm or 18mm channel steel ( Material is Q235steel ).
Side Wall	600mm-1800mm ，the open door can be chosen freely.
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber; One piece of 45L air tanks （special for exporting market）
ABS	Optional
Valve	WABCO valve
Light	LED light ( special for exporting market )
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

Our advantage

1. Steel structure Steel frames are built with top-class hot rolled or rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.

2. Different types of suspension are designed for various operating condition Bogie suspension; Air suspension; Mechanical suspension.

3. Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.

4. Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and better fuel economy.

5. State-of-the-art detection devices Components, hardness, and phase of metal are analyzed to ensure the standards of processed material; Weld seam defects, paint thickness and adhesuveness are checked and amended to guarantee the quality of finished products.

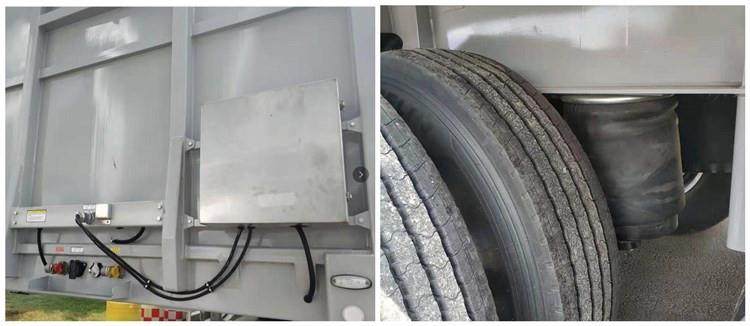

Bulk Cargo Trailer Spare Parts Image

initpintu_FD initpintu_SDDS

E-Coating/Painting Process :

84(001)

The first step of Electrophoresis Paint:

Use this automatic washing machine remove from all residual.

Last Process:

The trailer body is put into the steam room for electrophoretic drying, and then the powder is sprayed to steam it again to make the surface very smooth and keep the color for seven years

Before sale service

* Counseling and counseling support.

* sample test support.

* pick you up from the airport to visit the factory production line to ensure your safety in China.*

After sale service

* We often go abroad to inspect our products.

* Engineers can repair machines overseas.

Mode of Semi-trailer shipping:
