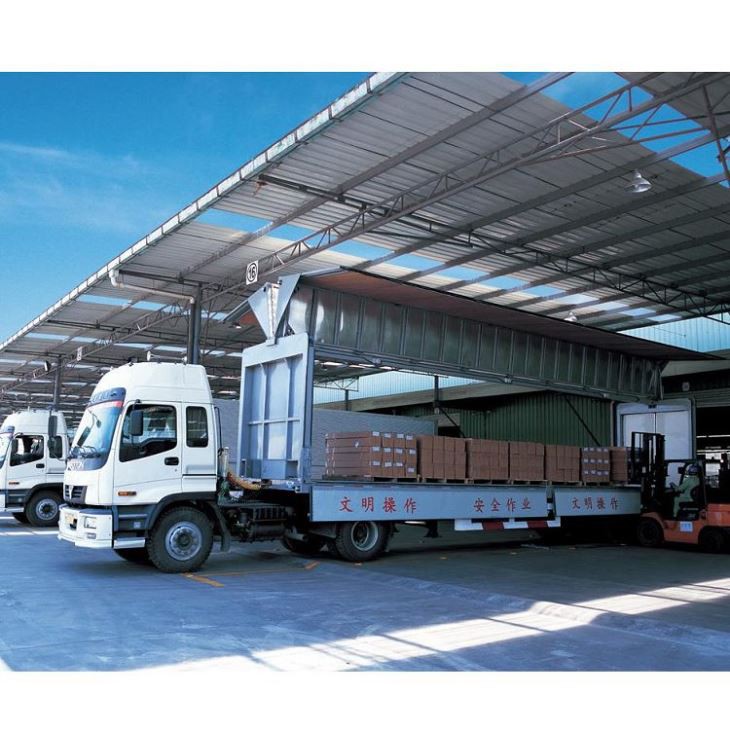

Autometic Side Open Van Long Vehicle

Our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle.

Send Inquiry Chat Now

97.4(001)

1.Automatic side open van long vehicle –Transport for light bubble goods and other bulk cargo.

Tare Weight	About 8.3T
Dimension	13000mm2490mm2860mm (Outer side) 1280023001800mm (work space)
Loading Capacity (T)	≤ 40 T
Axle	13 T/16T, FUWA /BPW /GV Brand
Rim	9.00-22.5 9.75-22.5, 8.25-20
Tire	12.00R22.5/ 315 80R22.5 12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Side beam	16mm or 18mm channel steel ( Material is Q235steel ).
Side Wall	600mm-1800mm ，the open door can be chosen freely.
Brake chamber	6 relay valves; T30/30+T30 Spring brake chamber;One piece of 45L air tanks （special for exporting market）
ABS	Optional
Valve	WABCO valve
Light	LED light ( special for exporting market )
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

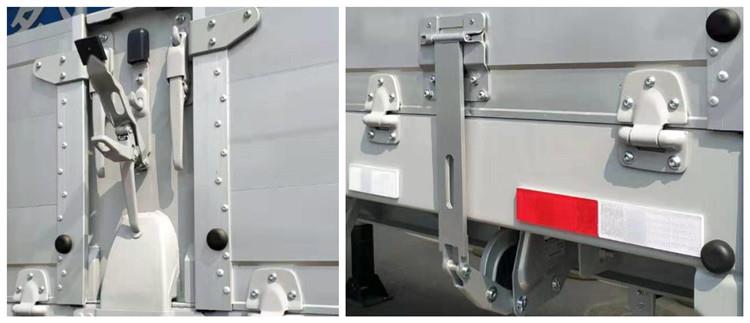

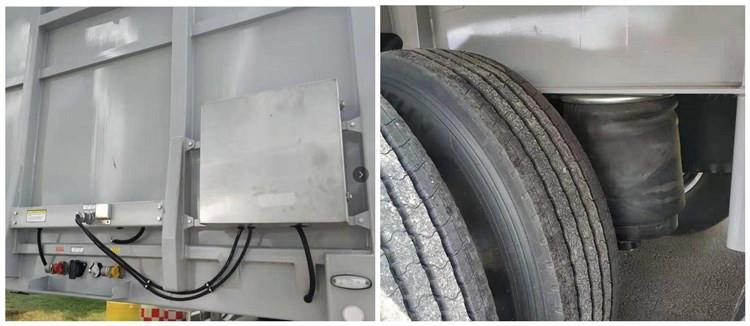

Automatic side open van long vehicle Spare Parts Show

initpintu_FD

initpintu_SDDSS

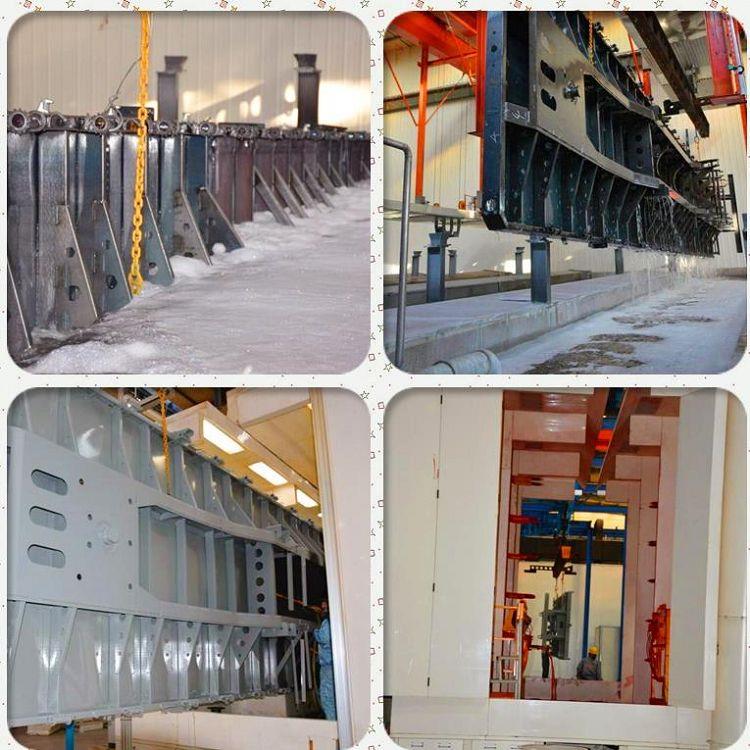

Electric Coating :

84(001)

Before sale service

* Inquiry and consulting support.

* Sample testing support.

* You and your friends are welcome to come to our company to visit! We can pick you up from the airport.

After sale service

Our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle. We always do our best to solve all the problems and put our customer's interests in the first place.

1. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?

- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...

- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing, We Need To Adjust The Height And Overhang To Couple With The Using Truck.

2. What‘s The Time For Delivery & Arrival ?

- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.

- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.

- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries,

25 Workdays Will Be Achieved.

3. If We Can Provide Terms For Reducing Your Import Duties ?

- Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction, Will Also Offer You The Best Way For Import Duty Reduction.

Type of Automatic side open van long vehicle Shipping:

91.5
