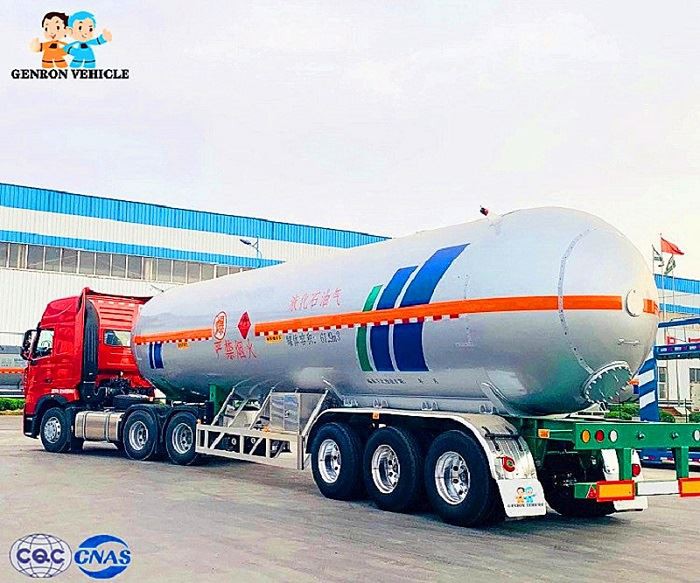

Quality Guaranteed LPG Gas Tanker Trailer
Professional Supplier LPG Gas Tanker Trailer for Sale 1. 20cbm 25cbm 32cbm 40cbm 45cbm 50cbm 60cbm LPG 25 mt tank semi trailer, gas tank trailer. 2. 40000liters 45000liters 50000liters 55000liters 52000liters 60000liters LPG 20 tons 25tons LPG transport tank trailer. 3. ISO CCC ASME lpg 20 mt...
Send InquiryChat NowProfessional Supplier LPG Gas Tanker Trailer for Sale
1. 20cbm 25cbm 32cbm 40cbm 45cbm 50cbm 60cbm LPG 25 mt tank semi trailer, gas tank trailer.
2. 40000liters 45000liters 50000liters 55000liters 52000liters 60000liters LPG 20 tons 25tons LPG transport tank trailer.
3. ISO CCC ASME lpg 20 mt transport tank semi trailer.
4. Nigeria,Niger,Bolivia,Tanzania.Mozanbique,senegal and other 50 countries oriented lpg 25mt transport gas tank semi trailer.
5. Cooking gas tank environmentally friendly gas lpg 52000Liters LPG storage tank, gas tank semi trailer.
6. 10~20 years long time durable lpg 20 mt storage tank, gas tank semi trailer.
7. Accessories availble lpg 52000Liters 20 mt gas tank semi trailer.
8. 20ton 20t 21ton 21t 22ton 22t 25ton 30ton 40ton 50ton lpg 20 mt storage tank, 52000Liters LPG gas tank trailer.
9. Q345R material lpg 20 mt 52000Liters LPG gas tank trailer.
10.good welding lpg 20 mt storage tank, 25 tons LPG gas tank trailer.

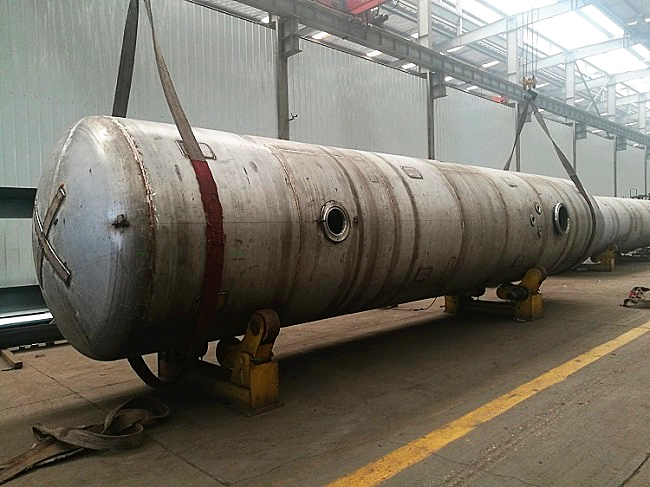

| Tank Body | |
| Dimension | 12460×2500×3980mm ( Exact size depends on the final design) |
| Tare weight | About13977KGS |
| Loading Capacity | 26023KG / 45m3 |
| Tanker Body Material | Q370R |
| End Plate | Q370R |
| Work Temperature | -20～50 ℃ |
| Working Pressure | ≤1.91 MPa |
| Safety Valve | A412F-25-16(For ammonia / Gas) |
| Rated Discharge Pressure: ≤2.29 MPa | |
| Unit charge of medium | 530 kg/M3 |
Emergency Stop Valve | QGJ43F-25-8(Liquid ammonia gas phase)DN25 |
| QGJ43F-25-7(liquid ammonia)DN50 | |
| Stop time: within 5 seconds | |
| Stop Temperature: 75±5 ℃ | |
| Loading Unloading Equipment | YKAG-33-6 / DN25 Liquid ammonia gas phase |
| YKAG-33-7 / DN50 liquid ammonia | |
| Nominal pressure:3.3 MPa | |
| Conducting electrostatic belt | JD-2 |
| Chassis | |
| Fir extinguisher | TWO pieces |
| Axle | FUWA/ brand 10T / three axles |
| Landing Gear | FUWA 28T |
| King Pin | JOST 2.00 inch bolt-in king pin |
| Suspension | Mechanical suspension/ |
| Leaf Spring | 4 pcs |
| Pneumatic Braking System | 6 relay valves; Spring brake chamber; one piece of 45L air tanks. |
| Rim | 9.00-22.5 China Brand 12 pcs |
| Tire | /12.00R22.5 12 pcs |
| ABS | Optional |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |

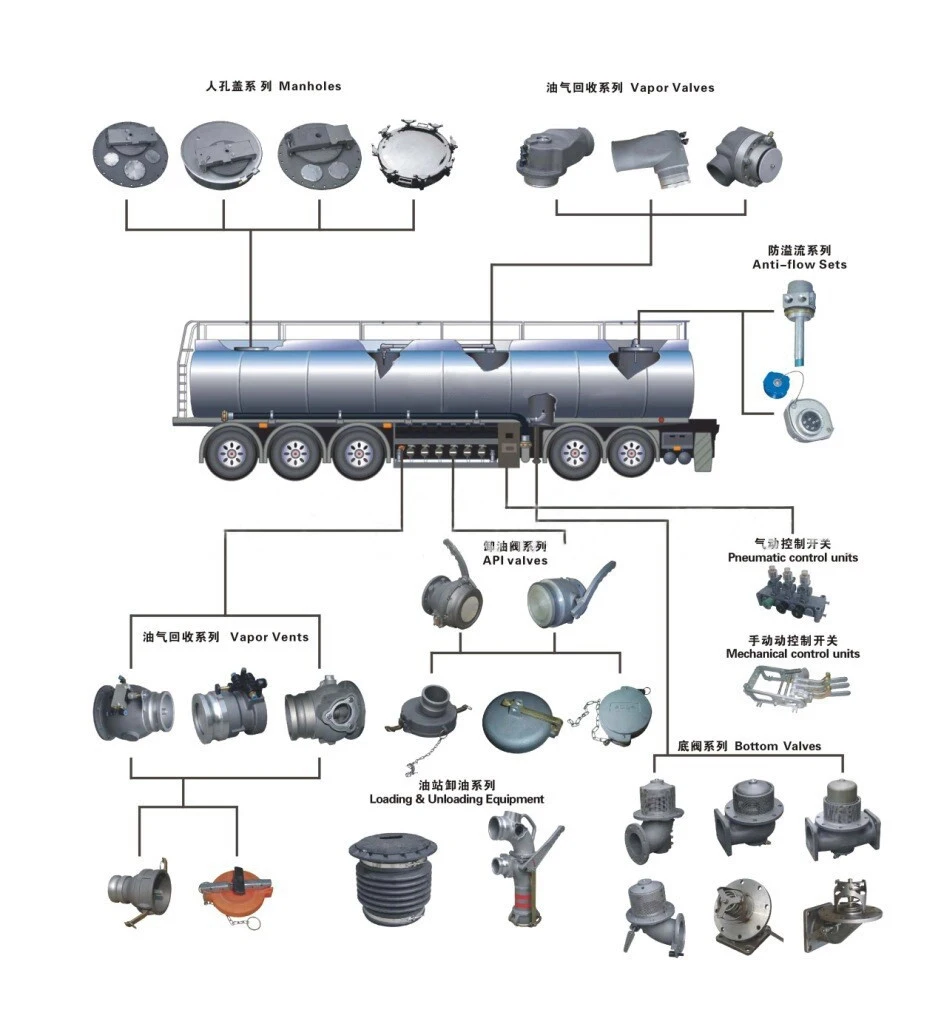

| Accessories | One standard Aluminum tool box Aluminum Mud Guard |
| Shipping Terms | By Bulk Cargo ,RORO |
