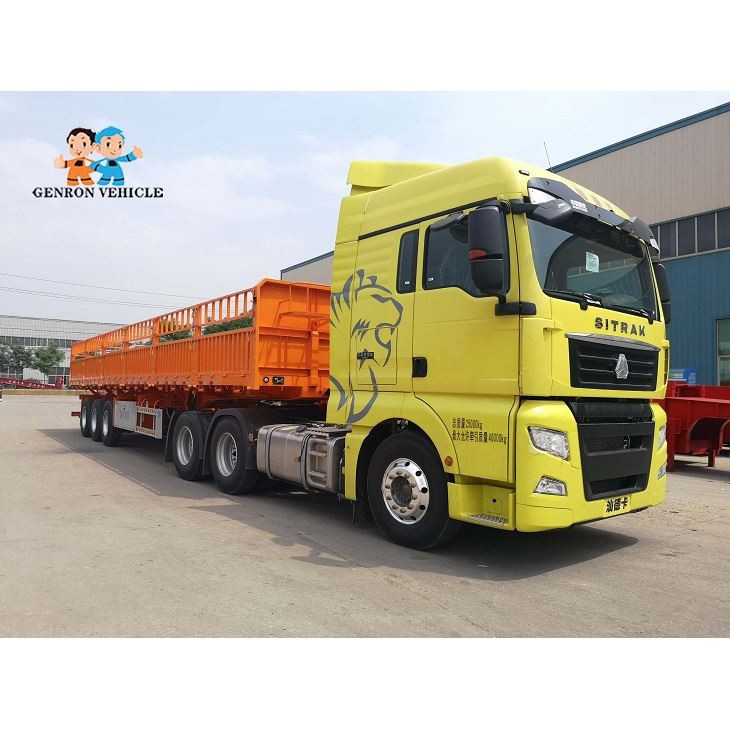

40ft Stake Semi Trailer
3 Axles 40Feet stake semi trailer used to transport feed, livestock and poultry or bulk particles, etc. The utility model has the advantages of simple structure and a wide range of uses, which is very suitable for medium and long distance freight transportation.
Send InquiryChat NowProduct introduction of 40ft Stake Semi Trailer:
Tare Weight | About 8.3-10T |
Dimension | 10000-13000mm*2490mm*2860mm (Outer side) 12000-13500*2300*1800mm |
Loading Capacity | ≤ 60 T |
Axle | 13 T/16T, FUWA /BPW /GV Brand |
Rim | 9.00-22.5 |
Tire | 12.00R22.5 |
Suspension | Mechanical suspension Or Air suspension |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel. |
Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
Side Wall | 600mm-1800mm ，the open door can be chosen freely. With 300-500mm height square tube or round tube |
Bottom Platform | 3mm-5mm thickness |
Brake chamber | 6 relay valves; T30/30+T30 Spring brake chamber;One piece of 45L air tanks |
ABS | Optional |
Twist Locks | Four ,Eight or Twelve pieces ,optional |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Advantage of 40ft Stake Semi Trailer:
The structure of stake semi trailer is simple, and there is no other configuration system, which is characterized by the addition of some fences in the warehouse, so this improves the safety of transporting goods and the transport volume of goods, such as transporting livestock and poultry. then the barn-fence transport vehicle is the best choice, the air circulation, so that the livestock and poultry need not be insufficient, at the same time, add guardrails to them, improve the protection of livestock and poultry in the process of road transportation. In case of hot and rainy weather, you can also cover the roof with tarpaulins to protect you from the sun and rain, which is convenient and simple.

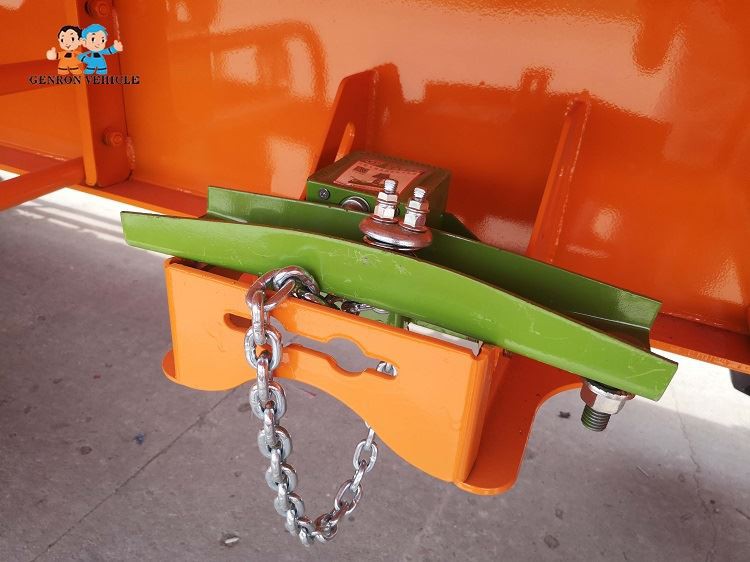

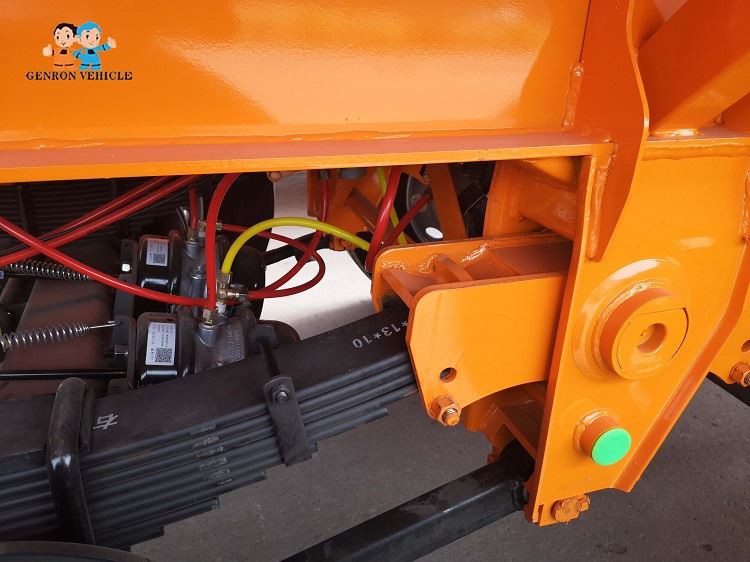

Detail of 40ft Stake Semi Trailer:
Certificate:

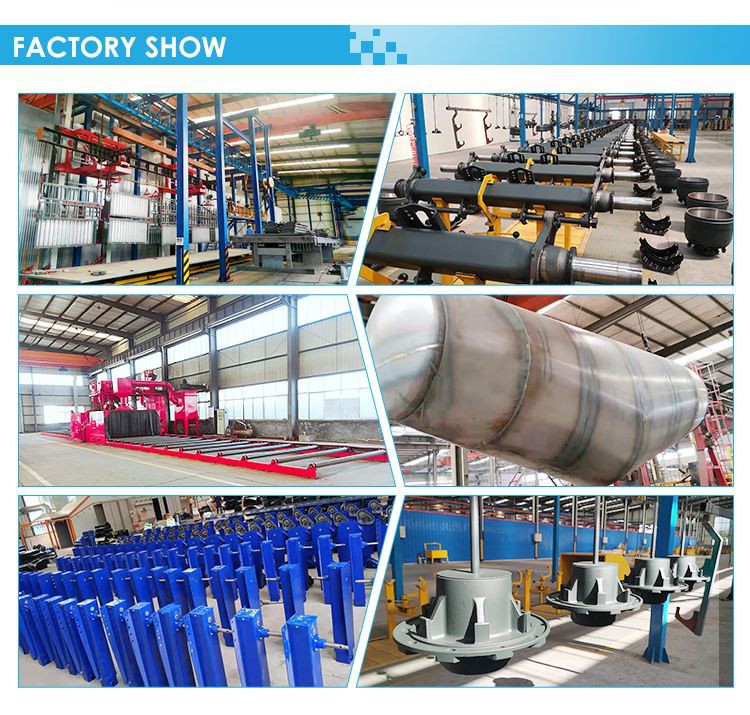

Our company:
