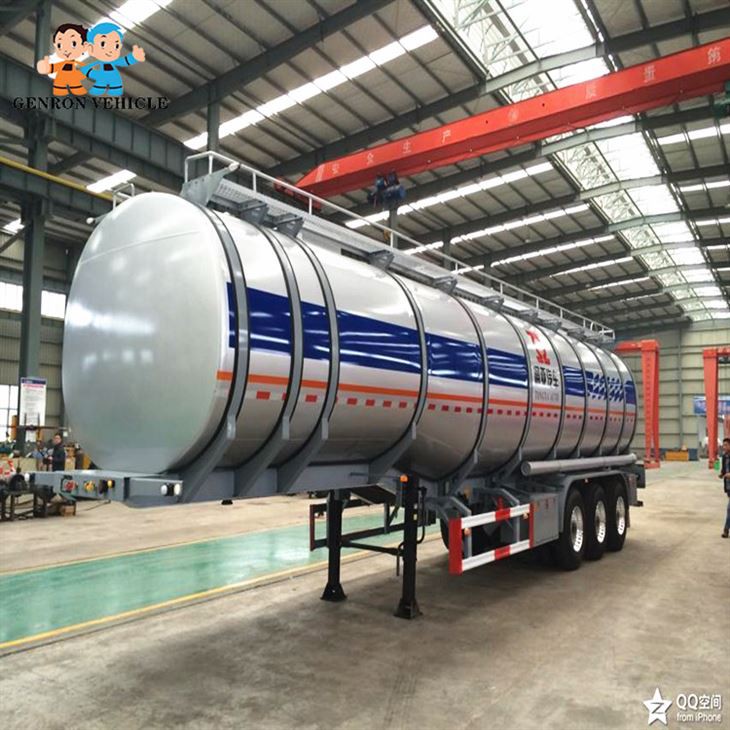

3 Axles Aluminum Oil Tanker Semi Trailer
1. It can be used in different compartments 2. It can be designed separately according to the special requirements of different countries 3. Meet different design requirements of customers
Send Inquiry
3 Axles Aluminum Oil Tanker Semi Trailer --For Transporting Diesel ,Petrolum ,etc.
Tank A : Main Configeration | |

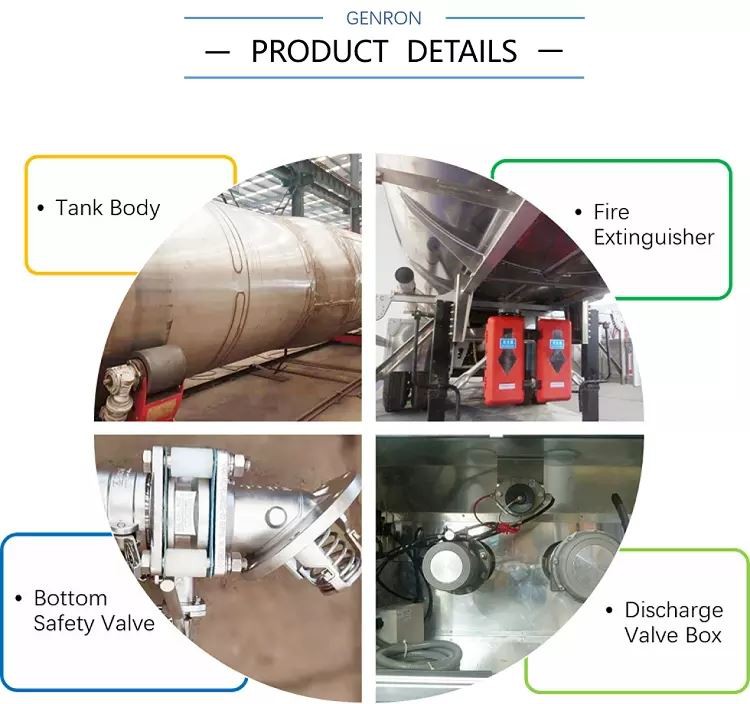

Tank Body | |
Shape | Cylindrical |
Dimension | 13000m*2500mm*3850mm |
Tare weight | 7700Kg |
Total Volume（m3） | 50 m³ |
Tanker Body Material | 6mm aluminium alloy 5083 |
End Plate | 6mm aluminium alloy 5083 |
Manhole Cover | stainless steel manhole ,diameter 500mm,two pieces （jia long brand） |
Bottom Valve | Aluminum API Pneumatic Bottom Valve, one pieces （jia long brand） |
Discharging Valve | aluminium alloy ball valve 4 inch ,2 pieces |
Compartments | 1 pieces |
Discharging Pipe | 4”Rubber tube ,two pieces , six meters length |
Cat Walk | As requirement |
Chassis | |
Main Beams | High strength plate T700 |
Axle | 3 axles FUWA |
Landing Gear | JOST D200T |
King Pin | 3.5 inch bolts type kin pin |
Suspension | Mechanical suspension (America system ) |
Leaf Spring | 90mm（width）/13mm（thickness）/10pieces |
Pneumatic Braking System | Vabco emergency valve,four double and two single chamber, one pieces air tanker . |
Rim | 9.00-22.5 13 pieces |
Tire | 12.00R22.5 Triangle Brand |
ABS | With |
Fire extinguisher | Two pieces 4 KG , |
Painting | Main Beam ,suspension 2 coats of final paint ;tanker body no painting . |
Accessories | One standard tool box ,steel |
Tank B :Main Configeration | |
Tank Body | |
Shape | Cylindrical |
Dimension | 11000m*2500mm*3880mm |
Tare weight | About 7000Kg |
Total Volume（m3） | 46m³ |
Tanker Body Material | 6mm aluminium alloy 5083 |
End Plate | 6mm aluminium alloy 5083 |
Manhole Cover | stainless steel manhole ,diameter500mm,two pieces （jia long brand）,with two Oil and gas recovery system |
Bottom Valve | Aluminum API Pneumatic Bottom Valve, two pieces（jia long brand） |
Discharging Valve | aluminium alloy ball valve 4 inch ,2 pieces |
Compartments | 2 compartments |
Discharging Pipe | 4”Rubber tube ,two pieces , six meters length |
Cat Walk | As requirement |
Chassis | |
Main Beams | aluminium alloy 5083 |
Axle | 3 axles BPW |
Landing Gear | JOST D200T |
King Pin | 2.00inch bolts type kin pin |
Suspension | Air suspension (America system ) front lifting system BPW brand
|
Leaf Spring | Without |
Pneumatic Braking System | Vabco emergency valve，four double and two single chamber, one pieces air tanker . |
Rim | 13.00-22.5 7 pieces |
Tire | 425/60R22.5 Chaoyang Brand , 7 pieces |
ABS | With |
Fire extinguisher | Two pieces 4 KG , |
Spare Tire Carrier | 2 pieces aluminum alloy 5083 |
Side,rear safty guard | All aluminum alloy |
Painting | Without Painting |
Accessories | One standard tool box,aluminium alloy 5083 |
Advantages of 3 Axles Aluminum Oil Tanker Semi Trailer
1. The oil semi-trailer is mainly used for the transportation of large-scale oil and liquid asphalt, with a tonnage of about 40-60 cubic meters.
2. Q235 carbon steel plate, stainless steel or aluminum material are mostly used for tank body material of oil semi-trailer.
3. The pump oil system can be installed, and the force is taken from the gearbox side through the power take-off device, which can be self-priming and self-discharging; it has two oil extraction pipes, and is equipped with quick assembly joint, with a suction distance of 6m. Two fire extinguishers and special tools.
4. It can be designed separately according to different needs of customers, and different chassis, tank body and fuel dispenser can be selected according to customers' needs.
5. The valve, discharge port and tank cover of tank car accessories are provided according to customers' habits, such as round or square.

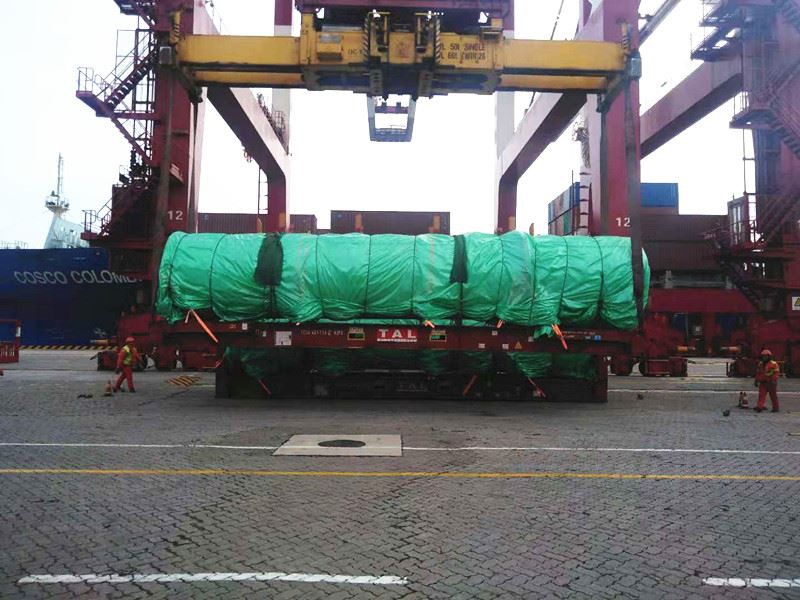

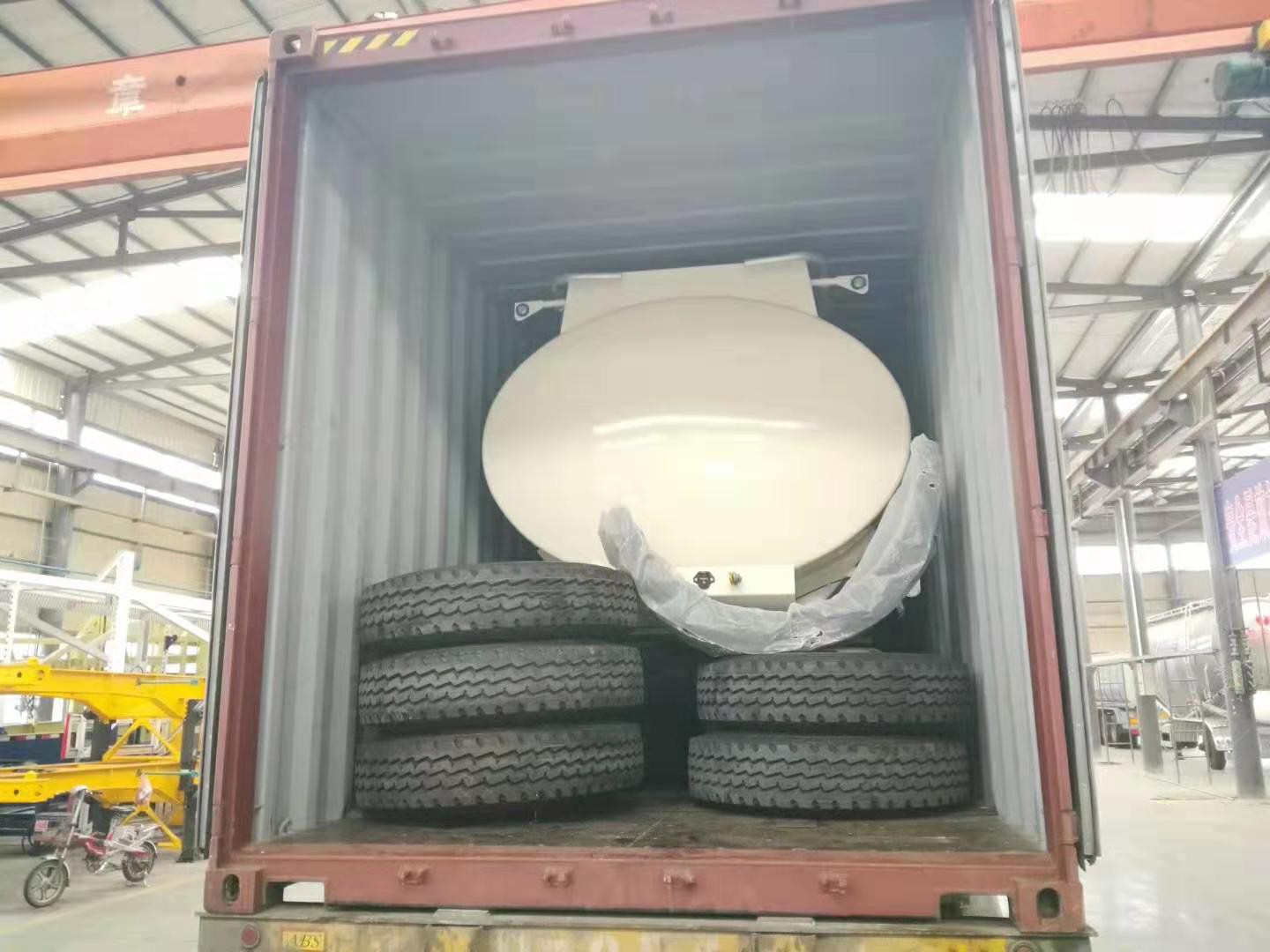

Shipping And Delivery
FAQ
Q:Which semi trailer brand is best in China?
A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .The best expensive brand is CIMC ( this is government company ).Genron is private company ,we can supply low price in high quality .
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money
Q: What’s your payment terms?
A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .
2.L/C at sight .
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it.
Q:How many cities have been exported ?
A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
