2 Axles / 3 Axles LNG Tanker Semi Trailer
1. It can be designed separately according to the special requirements of different countries 2. Meet different design requirements of customers
Send Inquiry
2 Axles / 3 Axles LNG Tanker Semi Trailer For Sale

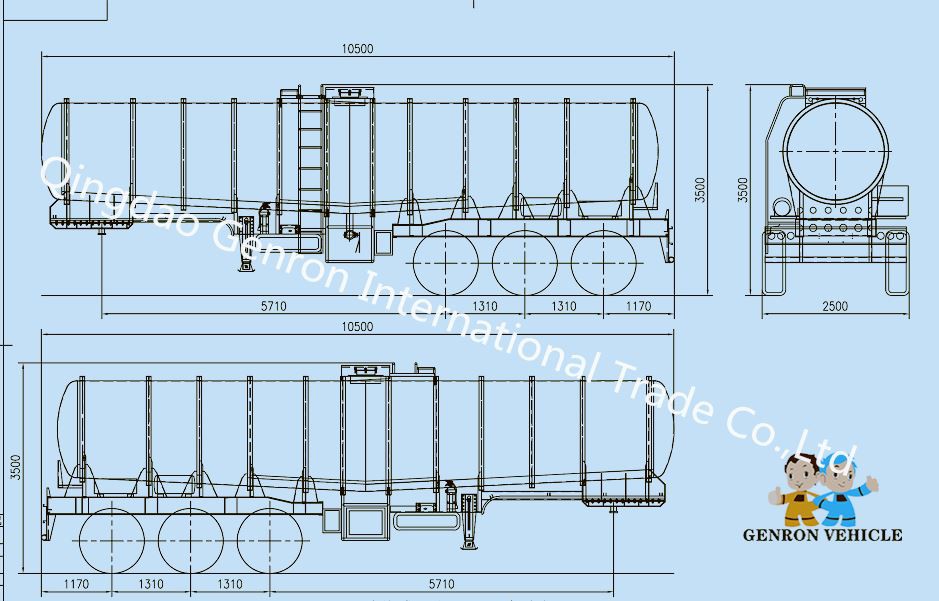

Main Dimensions | |
Tank Body | |
Dimension | 12460×2500×3980mm ( Exact size depends on the final design) |
Tare weight | About13977KGS |
Loading Capacity | 26023KG / 49.1m3 |
Tanker Body Material | Q370R |
End Plate | Q370R |
Work Temperature | -20～50 ℃ |
Working Pressure | ≤1.91 MPa |
Safety Valve | A412F-25-16（For ammonia / Gas） |
Rated Discharge Pressure: ≤2.29 MPa | |
Unit charge of medium | 530 kg/M3 |
Emergency Stop Valve
| QGJ43F-25-8（Liquid ammonia gas phase）DN25 |
QGJ43F-25-7（liquid ammonia）DN50 | |
Stop time: within 5 seconds | |
Stop Temperature: 75±5 ℃ | |
Loading Unloading Equipment | YKAG-33-6 / DN25 Liquid ammonia gas phase |
YKAG-33-7 / DN50 liquid ammonia | |
Nominal pressure:3.3 MPa | |
Conducting electrostatic belt | JD-2 |
Chassis | |
Fir extinguisher
| TWO pieces |
Axle | FUWA/ brand 10T / three axles |
Landing Gear | FUWA 28T |
King Pin | JOST 2.00 inch bolt-in king pin |
Suspension | Mechanical suspension/ |
Leaf Spring | 4 pcs |
Pneumatic Braking System | 6 relay valves; Spring brake chamber; one piece of 45L air tanks. |
Rim | 9.00-22.5 China Brand 12 pcs |
Tire | /12.00R22.5 12 pcs |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard Aluminum tool box Aluminum Mud Guard |
Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |
Advantages
1.Good at gas refrigeration,cold insulation and pressure control in tank.
2.The safety valve, liquid level gauge, thermometer, expansion joint of the inlet and outlet pipe and other accessories can operate normally under low temperature condition.
3.Valves like safety valve, liquid phase valve, vent valve are good in sealing and without material leakage.
4.Safety transportation and quality assurance.

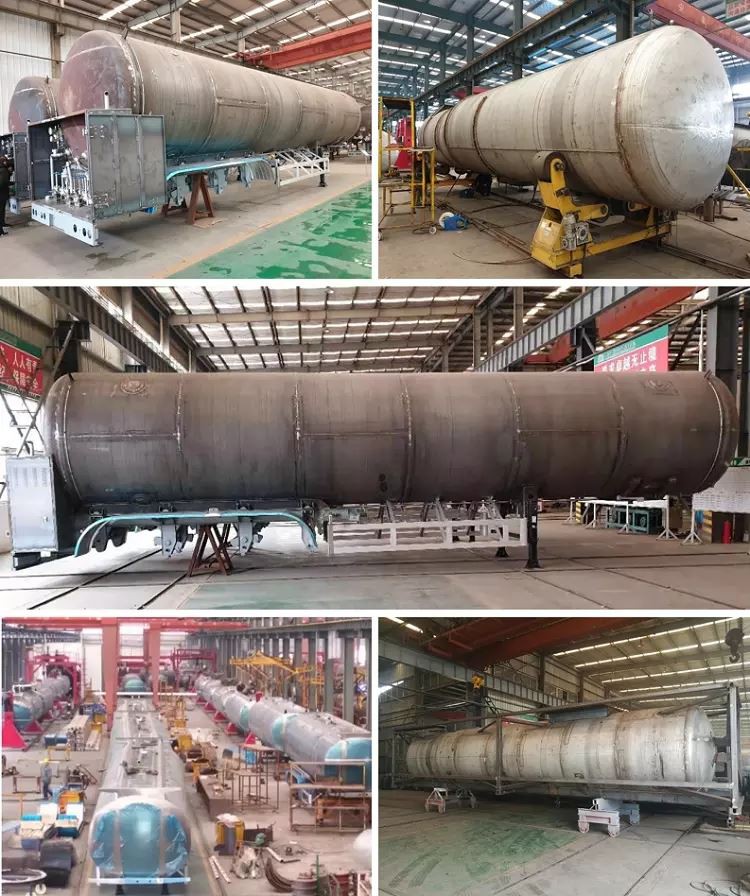

The Workshop
FAQ
Q:Which semi trailer brand is best in China?
A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .The best expensive brand is CIMC ( this is government company ).Genron is private company ,we can supply low price in high quality .
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money
Q: What’s your payment terms?
A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .
2.L/C at sight .
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it.
Q:How many cities have been exported ?
A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
