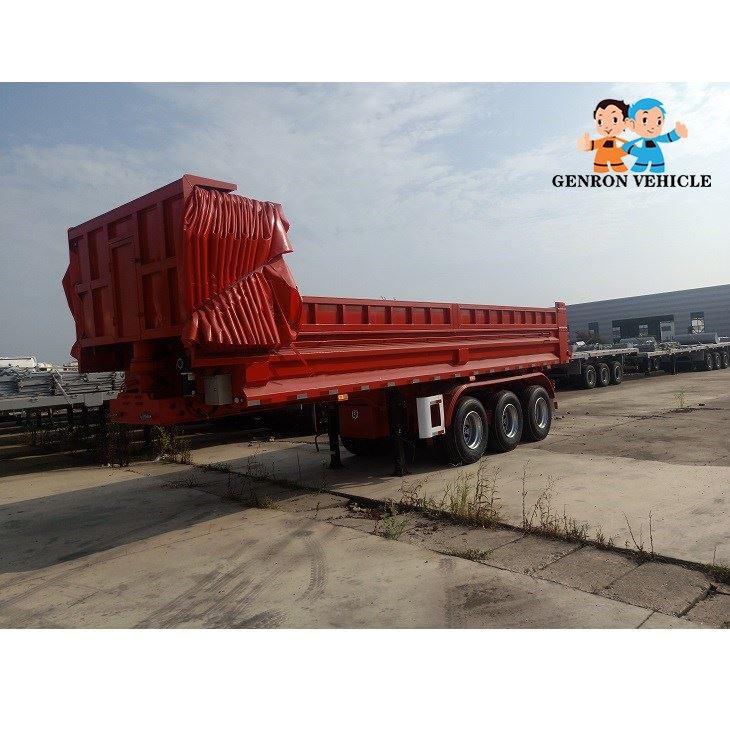

3 Axles With Tarpaulin Rear Dumping Semi Trailer
3 Axles steel heavy duty rear dumping semi trailer with Tarpaulin is used to transport Coal, ore and so on, Our tipper has high load strength, low center of gravity, not easy to overturn, and much less damage to tires, leaf springs and frame.
Send InquiryProduct Introduction :
3 Axles steel heavy duty rear dumping semi trailer with Tarpaulin is used to transport Coal, ore and so on, Our tipper has high load strength, low center of gravity, not easy to overturn, and much less damage to tires, leaf springs and frame.
Main Dimensions | |
Dimension | 11280*2495*3970mm ( outside) 10500*2300*1700mm (work space ) |
Tare weight | About 15600KGS |
Total Volume（m3） | less than 80tons |
Side wall thickness（mm） | 6mm Q235 steel |
Bottom plate thickness(mm) | 8mm |
Lifting system | Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder |
Chassis | |
Main Beams | Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel |
Axle | 3 axles, FUWA brand 16tons per axles |
Landing Gear | CHINA BRAND 28T |
King Pin | JOST 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks. |
Rim | 8.5-20 China Brand |
Tire | 12.00R20 Brand can be Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model . |
Detail of the rear dumping semi trailer :
The Feature of the rear dumping semi trailer :
1 The backward turning and self-unloading mode is adopted in the carriage, which can effectively improve the transport efficiency of the loader in transporting bulk goods.
2 The frame and the longitudinal beam of the carriage are welded with high-quality manganese plate, and there are two kinds of boxes: dustpan and rectangle. It has high strength, strong lifting force, good stiffness and toughness, strong bearing capacity and no permanent deformation.
3 We can design separately according to the different needs of customers, or tell us that the media of the goods you carry are different, and we will design corresponding models for you to meet the individual needs of customers.
