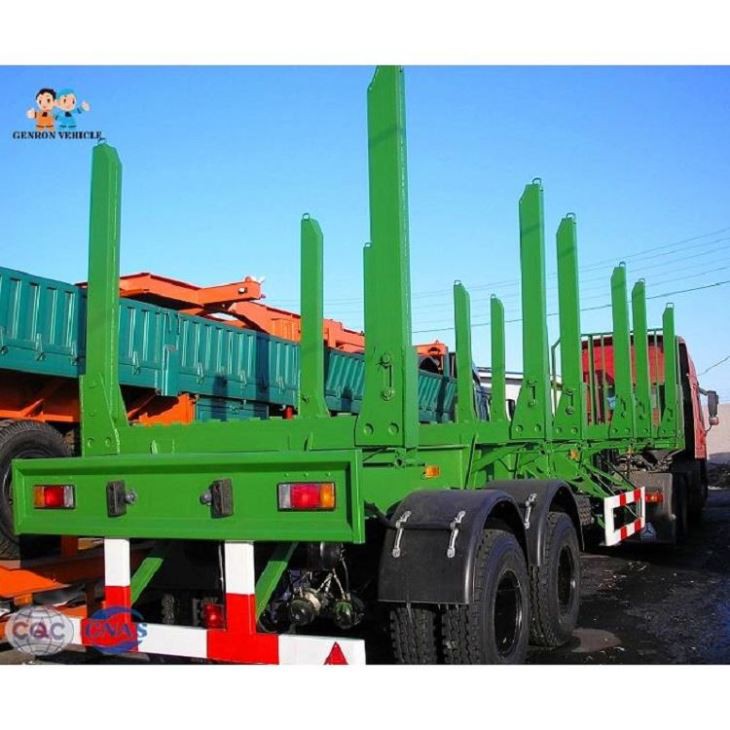

Wooden Stick Transport Truck Trailer

The second step of E-coating Process: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.

Send InquiryChat Now

103.5

1.wooden stick transport truck trailer –To deliver wooden stick.


Tare Weight

About 6.8-8.6T

Dimension

13000mm*2490mm*2860mm (Outer side)
12800*2300*1800mm

Loading Capacity (T)

≤60 T

Axle

13 T/16T, FUWA /BPW /GV Brand two or three axles

Rim

9.00-22.5

Tire

12.00R22.5/ 315 80R22.5

Suspension

Mechanical suspension (Germany Type or America Type)
Or Air suspension (China brand or BPW brand ) or Single point suspension

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

King pin

JOST brand 2.0 or 3.5inch bolts type or Welding type

Support leg

JOST brand D200T or China brand 28Tons (Double speed)

Main beam

Height: 500mm, upper plate is 14mm, middle plate is 8mm,
down plate is 16mm ; Material is Q345B Steel .

Side beam

16mm or 18mm channel steel ( Material is Q235steel ).

Side tube

Seven pieces of square tube on each side of trailer, tube size is 10*10cm

Brake chamber

6 relay valves; T30/30+T30 Spring brake chamber; one piece of 45L air tanks

ABS

Optional

Twist Locks

Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional

Valve

WABCO valve

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms:

By bulk cargo carrier, RORO or 40HQ container.

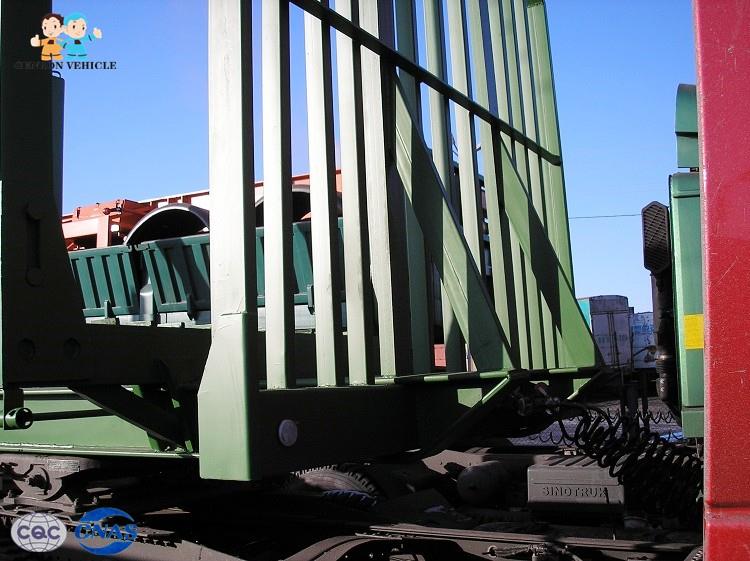

Wooden stick transport truck trailer Parts Display:

104.2

104.3

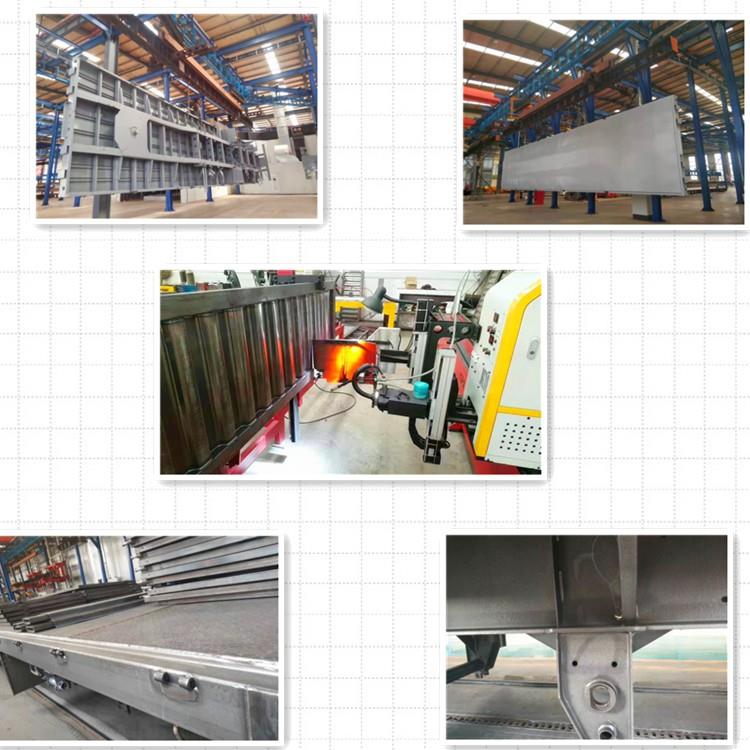

Painting Process :

84(001)


The first step of E-coating Process

Use this automatic washing machine can make the trailer all points very cleaning ,remove all residual.

85.5(001)


The second step of E-coating Process: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.


Wooden stick transport truck trailer Shipping Item : A & B

104.4

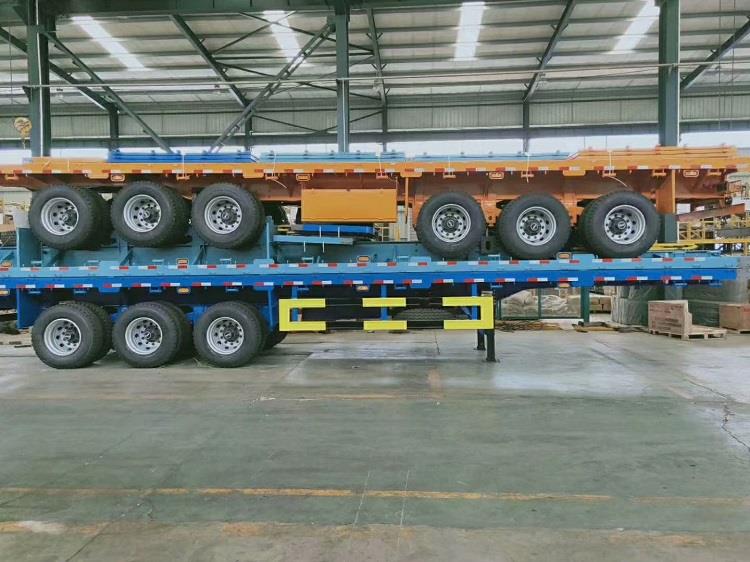

A: This package for roro ship or bulk cargo ship delivery .

IF your order is more than three units or 6 or 9 can be package like this .

Pls check your destination port if there is bulk cargo port near to your city.

Disadvantage : the bulk cargo fee is a little expensive than the container fee.

Advantage: no need welding ,can be work directly after you received

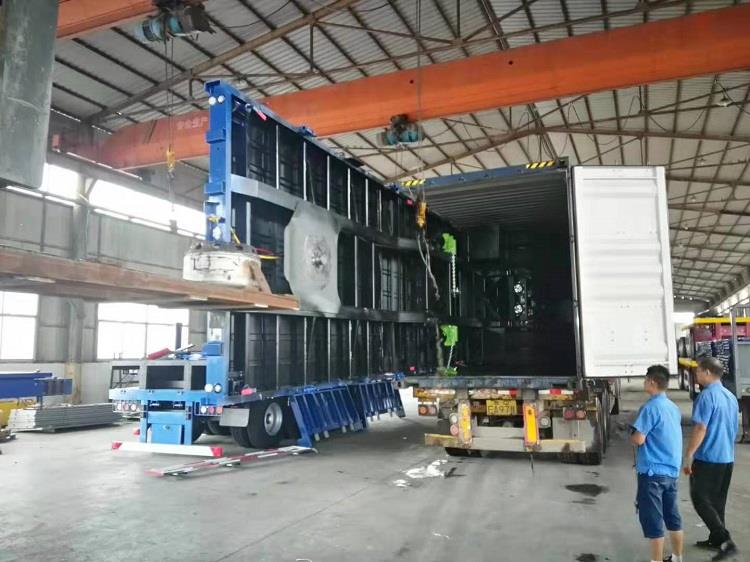

B: If your order is two units flatbed trailer or double pieces you can choose put two units into one 40HQ container for shipping , we will design one tail part connected by strong bolts ,after you received the trailer you should connecting them by strong bolts first and then welding the two parts together ,Its easily work for welding man.


104.5


1.Why do you chose Genron?

11 years overseas experience :

As our more than 11 years overseas produce and exporting business experience focus on the trailer and truck filed ,We used nine years visited on Ghana,Burkina faso,Cameroon,Nigeria,Mozambique,Zambia ,Tanzania ,Kenya,Malaysia ,Indonesia ,Philippine,Vietnam ,LAOS ,Mayanmar,Algeria,Dubai.

A.Mirror Trading:

we will gave you the best price and quality product .Because we hope our cooperation like mirror ,Customer as mirror ,one side is factory ,inside is Genron,

We Minimize all loses that may arise from the producers .We respond to the demands and requirements of the companies , we work with in the most effective way and as soon as possible.

B.Professional Technical Team:

The strong advantage of Genron compare with other trading company and company is we have our own professional design team: One engineer Mr.Fanming Bu (working for CIMC company five years, design trailer and production line six years),Five technical person: Mr.Wenming Zhao(design tanker trailer for 11 years),Mr. Xianzhen Zhao(design welding machinery four years),Mr.Haifeng Liu(design trailer axles four years). Mr.Zuoliang Yang( design tipper trailer six years).Mr.Jihe Cao(Design tanker trailer five years).

2.What is Genron profit ?

To be Purchase agent : You buy the product from the factory I help you export off china and shipping to your Country port, you should pay 5% FOB price of the goods for us .

You buy from Genron or to be agent of Genron:

The factory will pay us export agent fees.


Our Technical Support Team:

85.6(001)


Cooperate with professionals! Spent your Money on valued things!

Let us to be your business partner is the shortest way to get your goods!


WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
