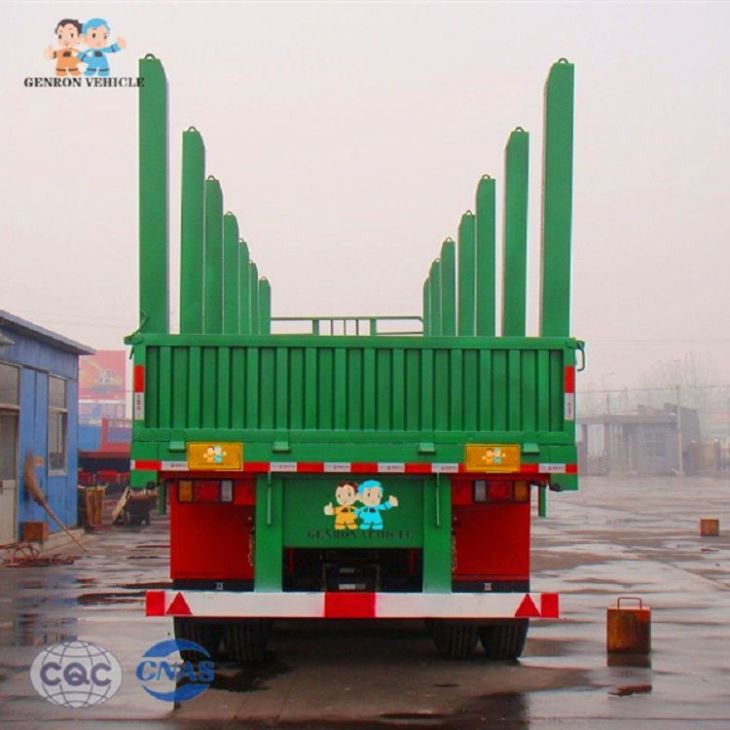

Timber Transport Semi Trailer
The trailer is generally assembled with a flatbed and railings, which are installed by welding and other mechanical processes, to keep the logs in place. The structure can hold a large amount of raw materials.
Send Inquiry
1.timber transport semi trailer –Transport timbers and logs.
Tare Weight | About 6.8-8.6T |

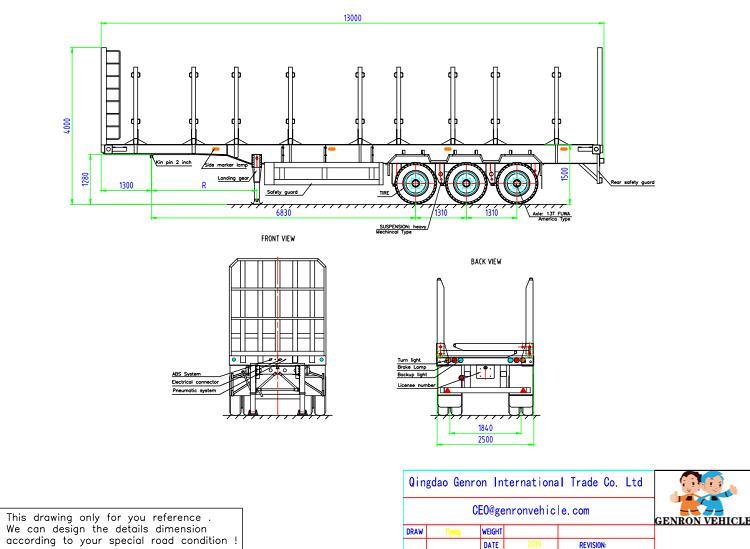

Dimension | 13000mm*2490mm*2860mm (Outer side) |
Loading Capacity (T) | ≤60 T |
Axle | 13 T/16T, FUWA /BPW /GV Brand two or three axles |
Rim | 9.00-22.5 |
Tire | 12.00R22.5/ 315 80R22.5 |
Suspension | Mechanical suspension (Germany Type or America Type) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, |
Side beam | 16mm or 18mm channel steel ( Material is Q235steel ). |
Side tube | Seven pieces of square tube on each side of trailer, tube size is 10*10cm |
Brake chamber | 6 relay valves; T30/30+T30 Spring brake chamber; one piece of 45L air tanks |
ABS | Optional |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Genron container semi-trailer category includes 20ft (feet) / 40ft skeletal trailers, and container flatbed trailers. A timber trailer is a special vehicle which is used to transport timber or logs. It is usually a customized product according to customer needs, such as the length of the logs. The semi–trailer’s length needs to match the length of the timbers which are transported. The trailer is generally assembled with a flatbed and railings, which are installed by welding and other mechanical processes, to keep the logs in place. The structure can hold a large amount of raw materials. This trailer is widely used on farms, in forests and other places, and it is also used to transport wood over long distances.

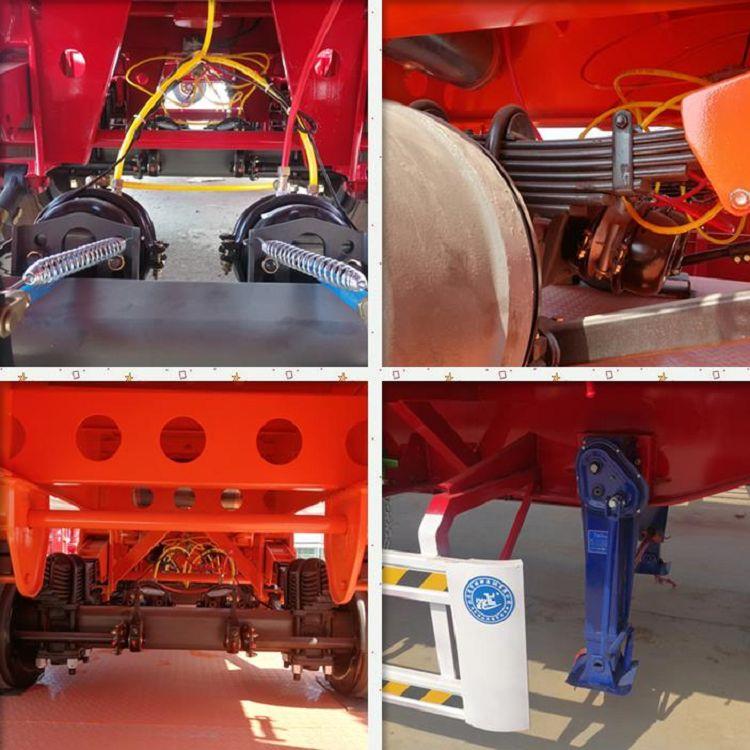

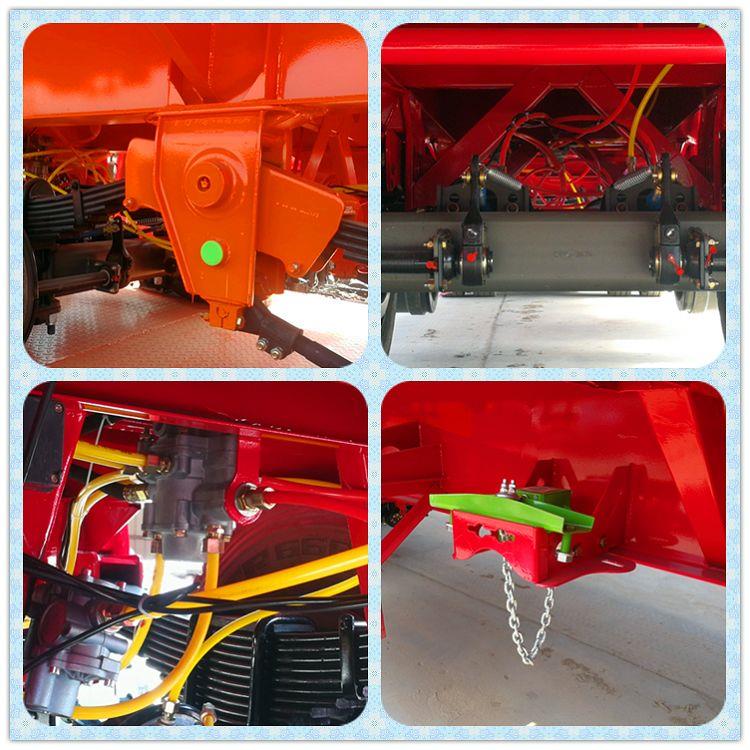

Timber transport semi trailer Parts Pictures

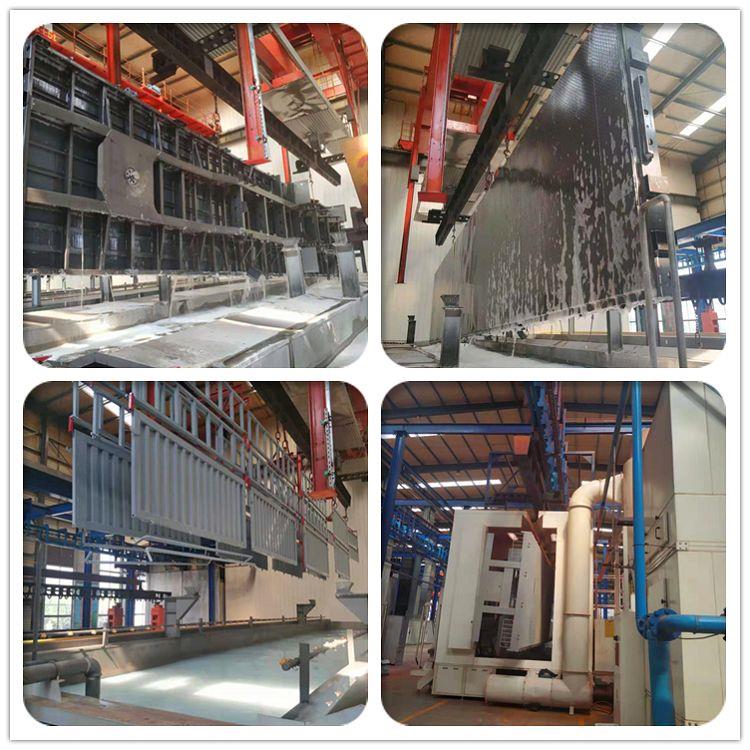

E-Coating Flow :
First step:
Use this automatic washing machining can make the trailer all points very cleaning ,remove all residual.
Final step: put the trailer body into the steaming room to Electrophoresis drying, and adjust the temperature under -50 centigrade ,and then powder painting to make steam again to make the surface very smoothly and painting touch the trailer firmly till 7 years.
Timber transport semi trailer Shipping Item : A & B

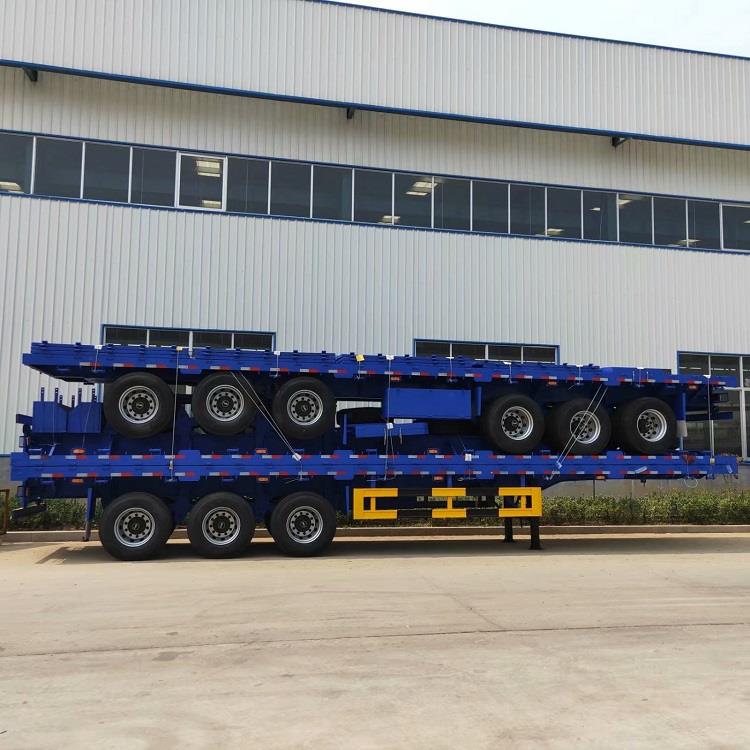

A This package for roro ship or bulk cargo ship delivery .
IF your order is more than three units or 6 or 9 can be package like this .
Pls check your destination port if there is bulk cargo port near to your city.
Disadvantage : the bulk cargo fee is a little expensive than the container fee.
Advantage: no need welding ,can be work directly after you received

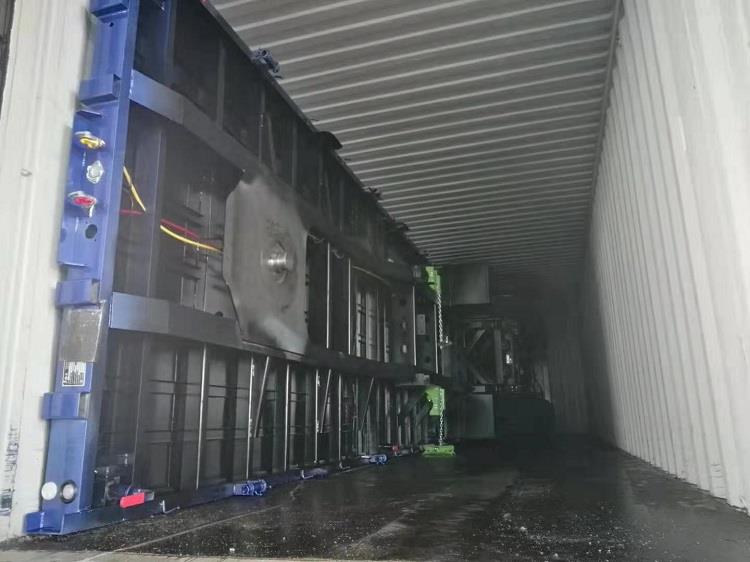

B: If your order is two units flatbed trailer or double pieces you can choose put two units into one 40HQ container for shipping , we will design one tail part connected by strong bolts ,after you received the trailer you should connecting them by strong bolts first and then welding the two parts together ,Its easily work for welding man.
The strong advantage of Genron company with other trading company is we have our own professional technical design team. If you uncertain your products or your own design ,we can go to visit you ,help you checking and analysis your market and gave you special and right design according to your country situation. As our more than 11 years overseas visited record and exporting business experience focus on the trailer and truck filed ,we can gave you the right product in very short way.
