3Axles Dry Bulk Tanker Trailer
3 Axles dry bulk tanker trailer used to transport cement,Fly ash, lime powder, ore powder
Send InquiryProduct introduction:
Main Dimensions | |
Tank Body | |
Shape | Optional ( One Silo with V type or Two ,Three Silos Design) |
Dimension | 12000mm*2490mm*3990mm ( Exact size depends on the final design) |
Tare weight | About 7500KGS-15000KGS |
Total Volume（m3） | 25m³-68 m³ |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel |
End Plate | 5mm or 6mm /Q235 carbon steel |
Diesel Engine | WEICHAI ，Tianhe 4100/4102 or other brand |
Compressor | BOHAI 10m³/12 m³or other brand |
Manhole Cover | Carbon steel or Aluminum∮500mm |
Discharging Valve | Diameter is 3 or 4 inch （Material: Aluminum ） |
Discharging Pipe | 3 or 4 inch rubber hose, 1pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Welding Design ,Q345 carbon steel |
Axle | 2 or 3 axles, 12T/13T/16T, BPW/FUWA/GV brand |
Landing Gear | JOST (D200T）or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /Air Suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
Pneumatic Braking System | 6 relay valves; T30/30+T30 Spring brake chamber; 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO |

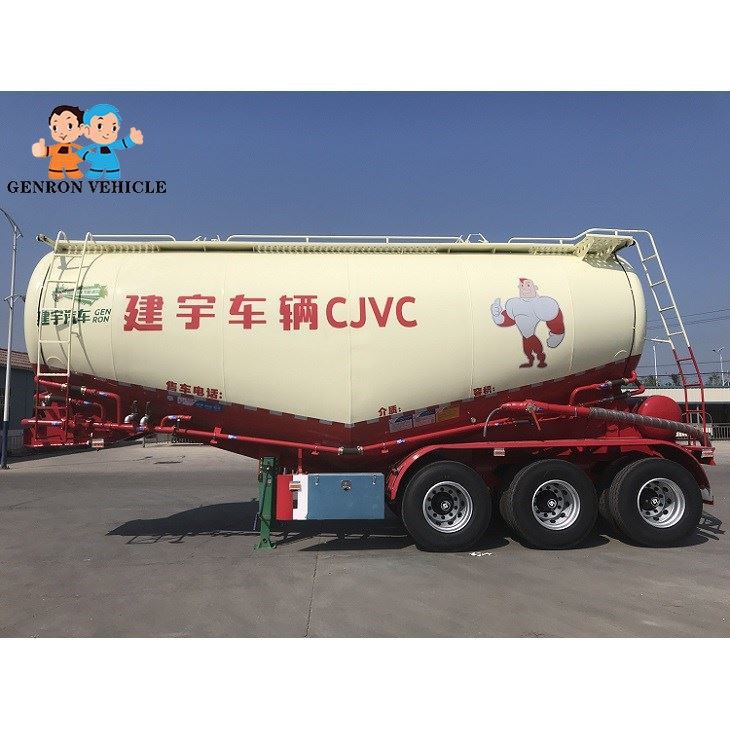

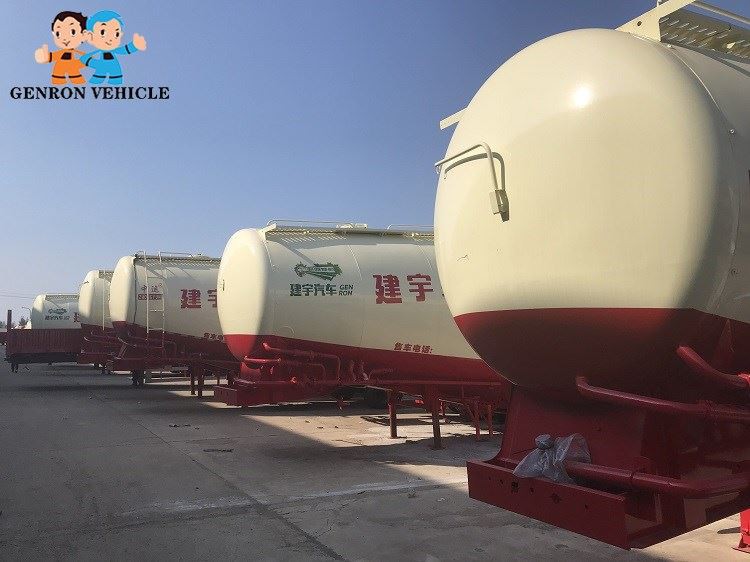

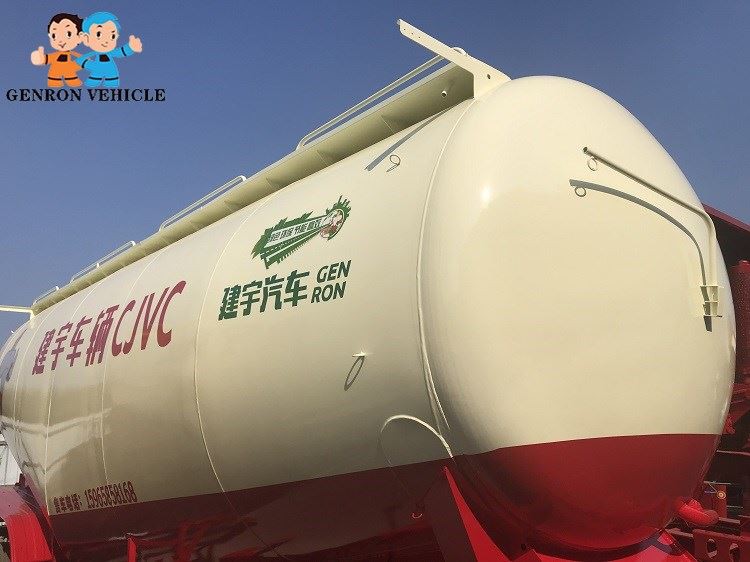

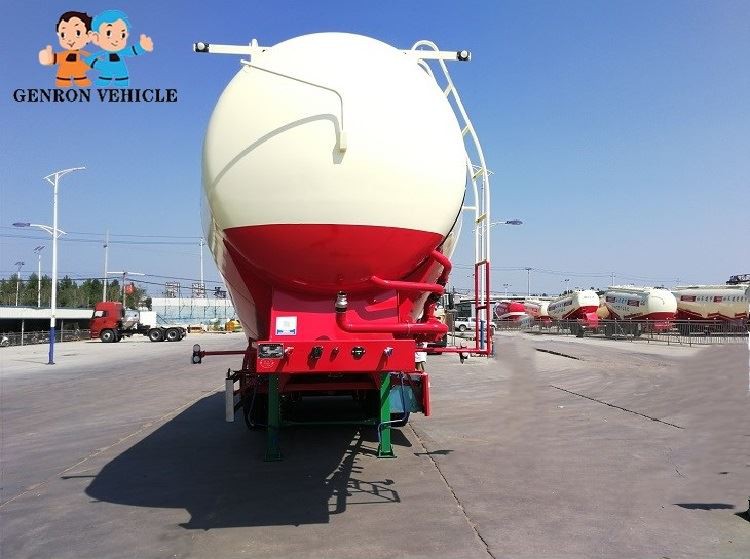

Detail information:
Certification:

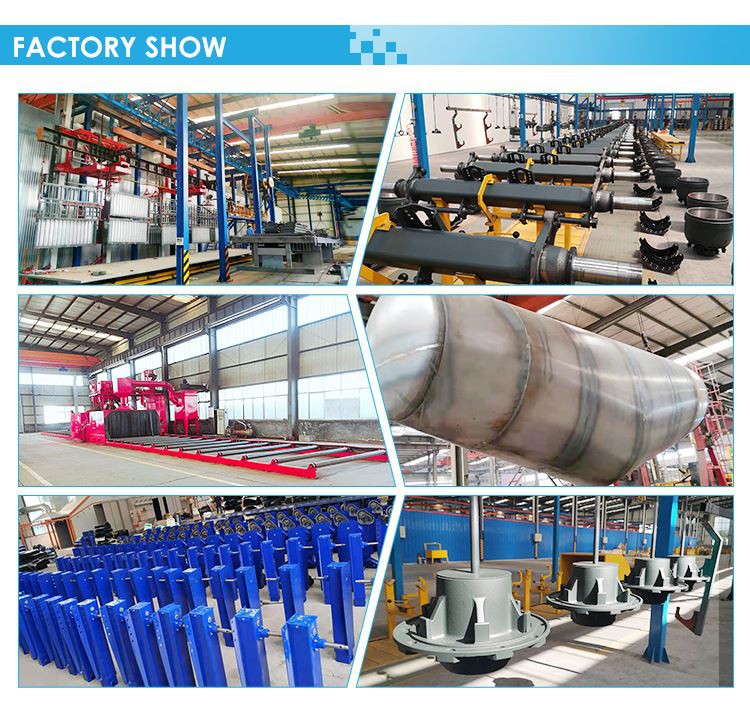

Our company :
Before sale
A: Quotation:
We will gave you the matched product details configuration and drawing according to your market, show you the best-selling model pictures and reasonable best price.
B. Reception & Accompany: After you accepted the offer price we have made to your company have the pre-interview ,you can come to visit our office and then go to visit factory ,we will arrange your everything in China. Or if you not sure which model of trailer or other product you should chose ,we can arrange our professional technical checking your market together with you.
After sale
We have our own technical team, we will gave you repaired method within 12 hours through calling or email. We can go to visit you gave you technical guide after or before you buy 'Genron' products.
We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.
