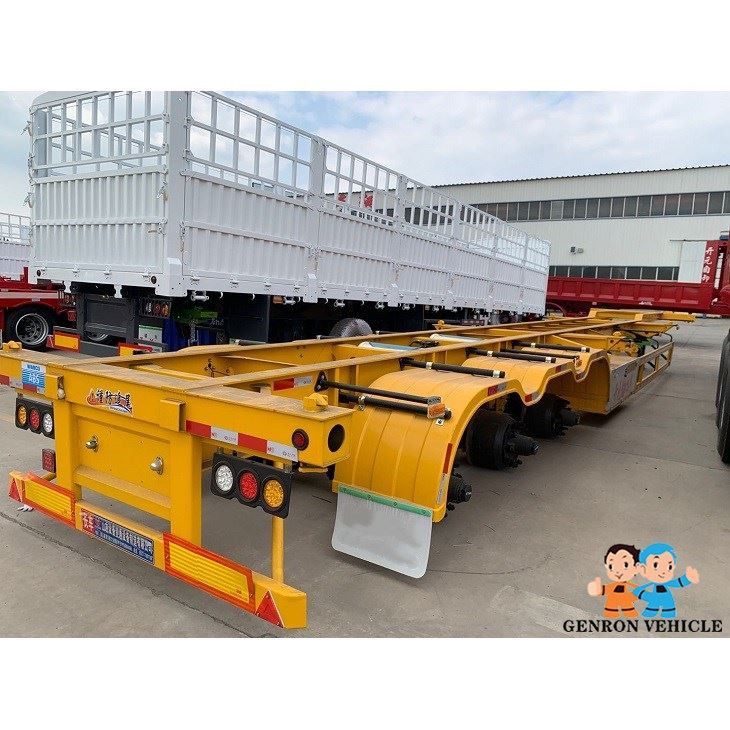

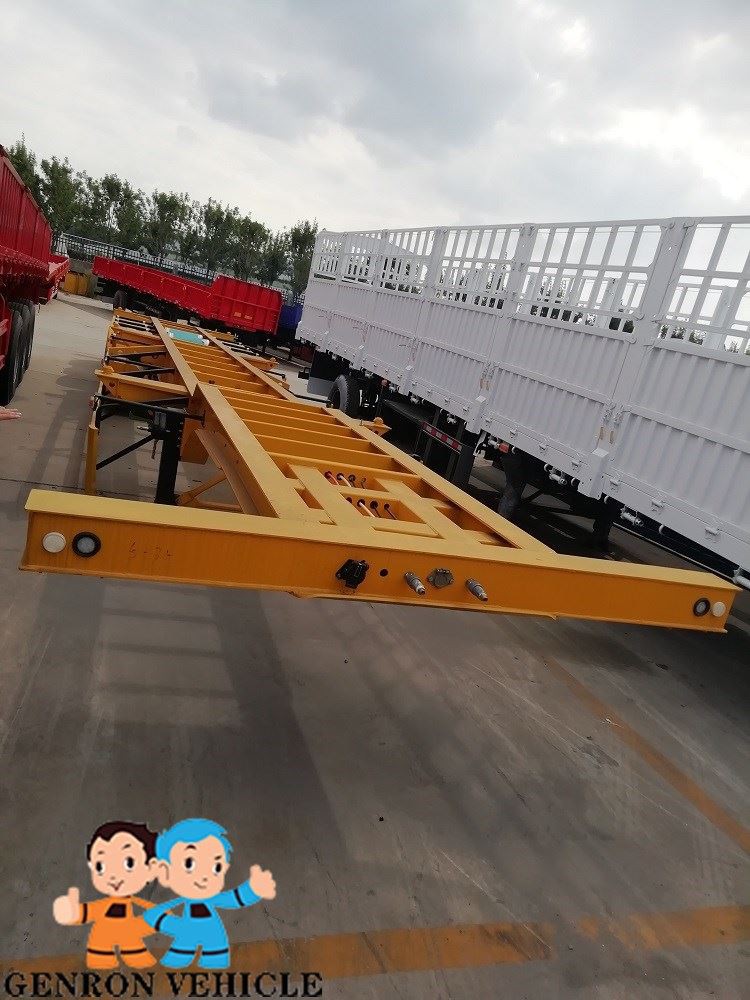

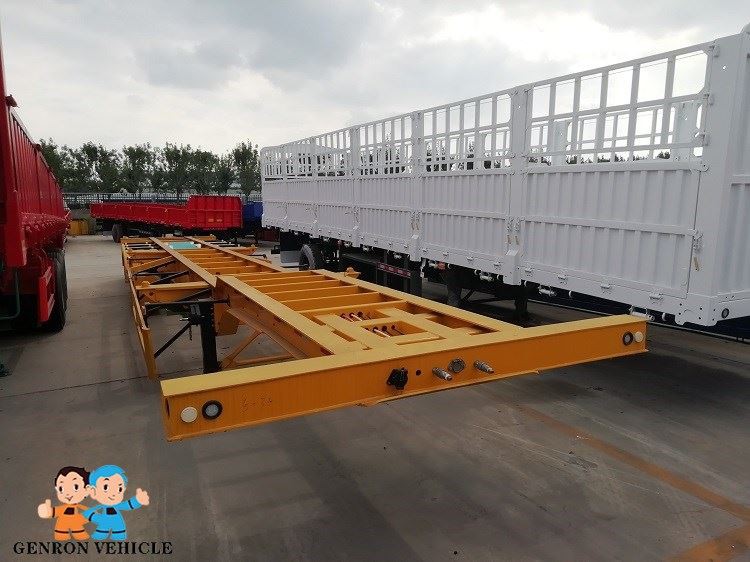

3 Axles Skeleton Semi Trailer
3 axles skeleton semi trailer used to transport 40 feet container or two 20 feet container
Send InquiryChat NowProduct introduction:
Tare Weight | About 7.1T |
Dimension | 12450mm*2490mm*1575mm |
Loading Capacity (T) | ≤ 45 T |
Axle | 13 T GV brand |
Rim | 9.00-22.5 |
Tire | 12.00R22.5 |
Suspension | Mechanical suspension Or Air suspension |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (especial for exporting market ) |
King pin | 3.5inch bolts type |
Support leg | China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 6mm, Down plate is 16mm; Material is Q345B Steel. |
Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
Bottom platform | 3mm diamond steel plate |
Brake chamber | RE 6 relay valves; T30/30+T30 Spring brake chamber; one piece of 45L air tanks |
ABS | Optional |
Twist Locks | Four, Eight or Twelve pieces |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | E-Coating process |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Certification:

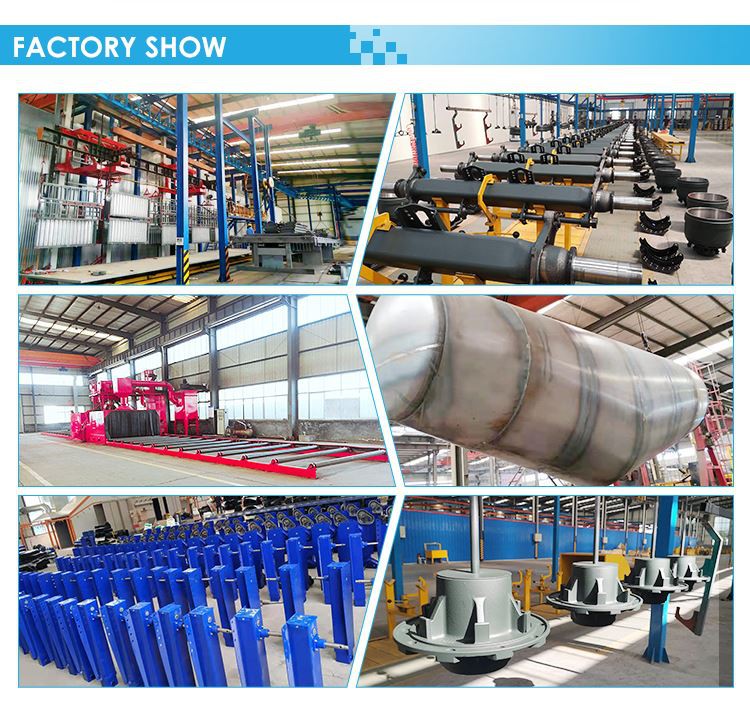

Our company :
Our customer:
Before sale
A: Quotation:
We will gave you the matched product details configuration and drawing according to your market, show you the best-selling model pictures and reasonable best price.
B. Reception & Accompany: After you accepted the offer price we have made to your company have the pre-interview ,you can come to visit our office and then go to visit factory ,we will arrange your everything in China. Or if you not sure which model of trailer or other product you should chose ,we can arrange our professional technical checking your market together with you.
After sale
We have our own technical team, we will gave you repaired method within 12 hours through calling or email. We can go to visit you gave you technical guide after or before you buy 'Genron' products.
We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.
