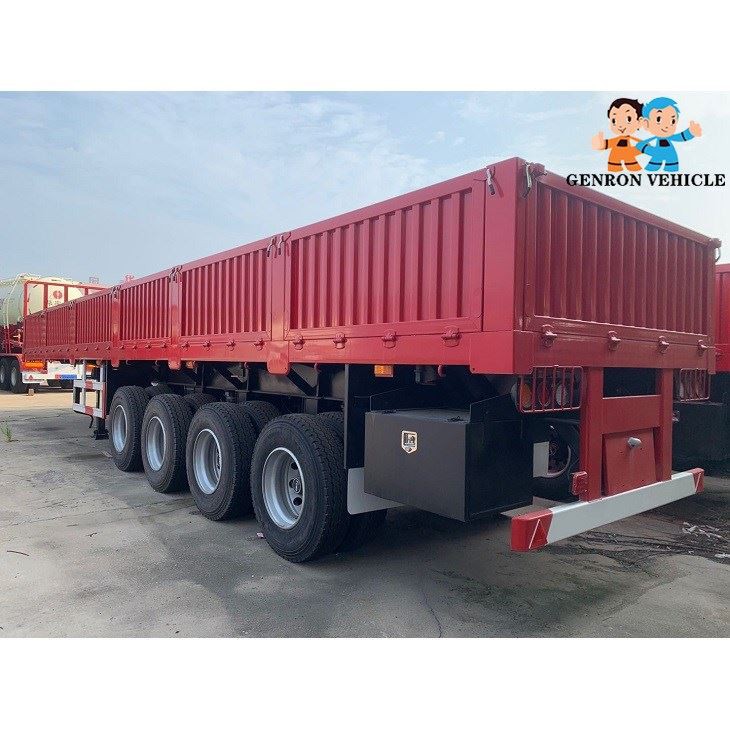

4 Axles Container Transport Semi Trailer
4 Axles container transport semi trailer can used to transport 40feet or 20feet contaainers
Send InquiryProduct introduction :
Tare Weight | About 6.5-7.5T |
Dimension | 7500*2500*1500mm Loading for 20ft container 12700mm*2500mm*1500mm loading for 40 ft container or two pcs 20 ft container |
Loading Capacity (T) | ≤ 40 T |
Axle | 16T, GV brand |
Rim | 9.00-22.5 |
Tire | 12.00R22.5 |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or Germany brand ) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (especial for exporting market ) |
King pin | 2.0 or 3.5inch bolts type or Welding type |
Support leg | China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 6mm, Down plate is 16mm; Material is Q345B Steel. |
Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
Bottom platform | 3mm diamond steel plate |
Brake chamber | RE 6 relay valves; T30/30+T30 /T30Spring brake chamber; one piece of 45L air tanks |
ABS | Optional |
Twist Locks | Four, Eight or Twelve pieces |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | E-Coating process |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Note | The size and configuration can be changed according to your special requirement |
Feature :
1 such flat semi trailer can install removable board, column etc. according to customer request.
2 can be quickly carried out, and can be conveniently changed from one conveyance to another transport tool.
3 can be designed separately according to customers' different needs or tell us how different media you carry, we want to design corresponding models to meet customer personalized requirements

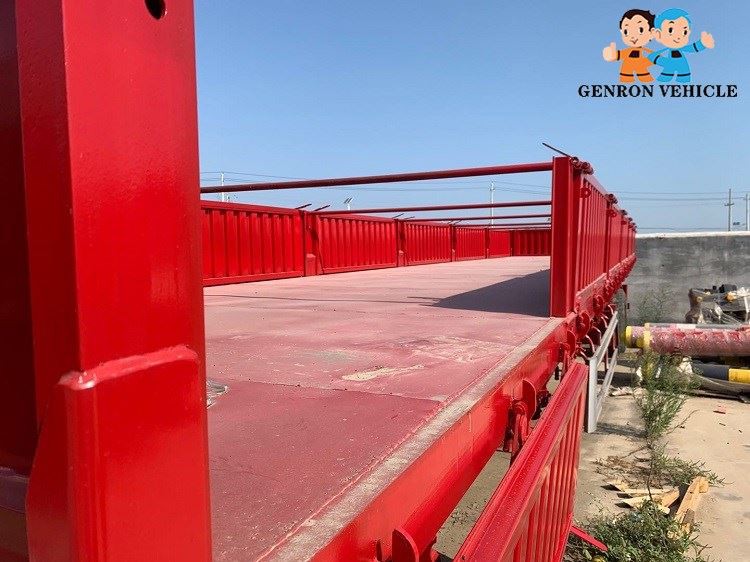

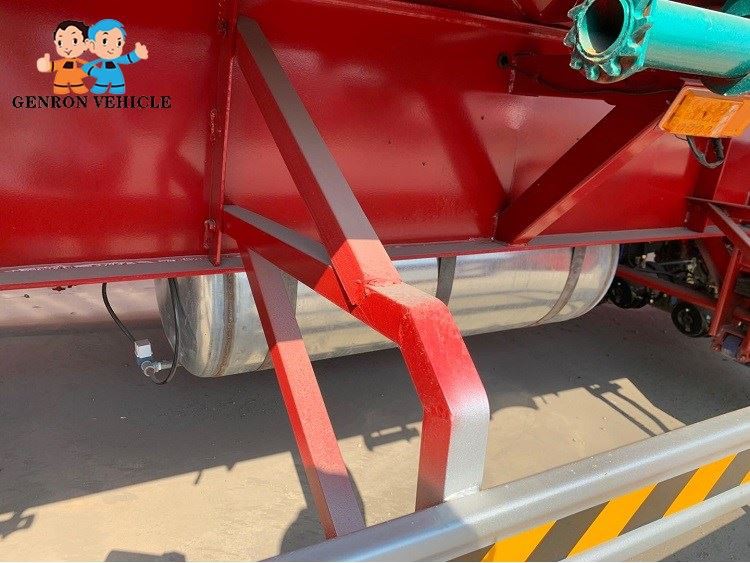

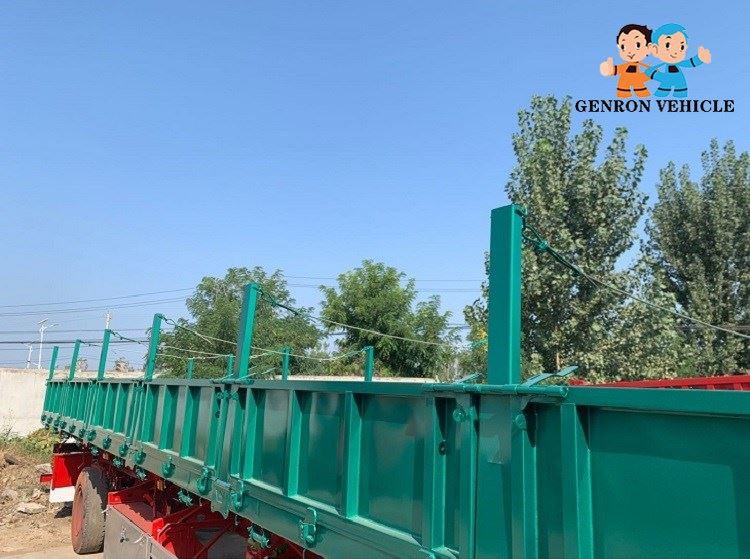

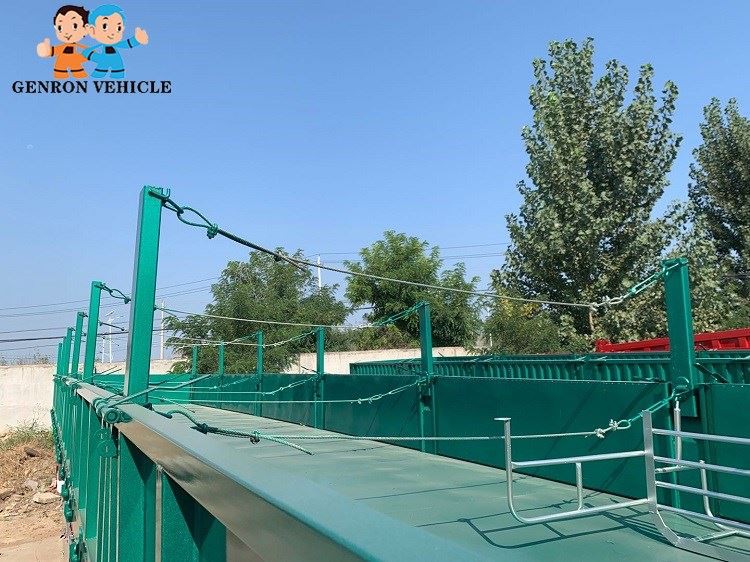

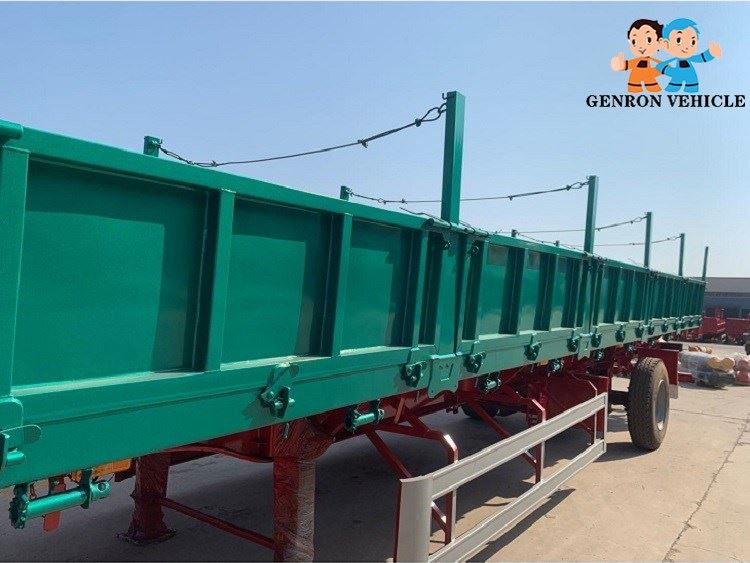

Detail information:
Certification:

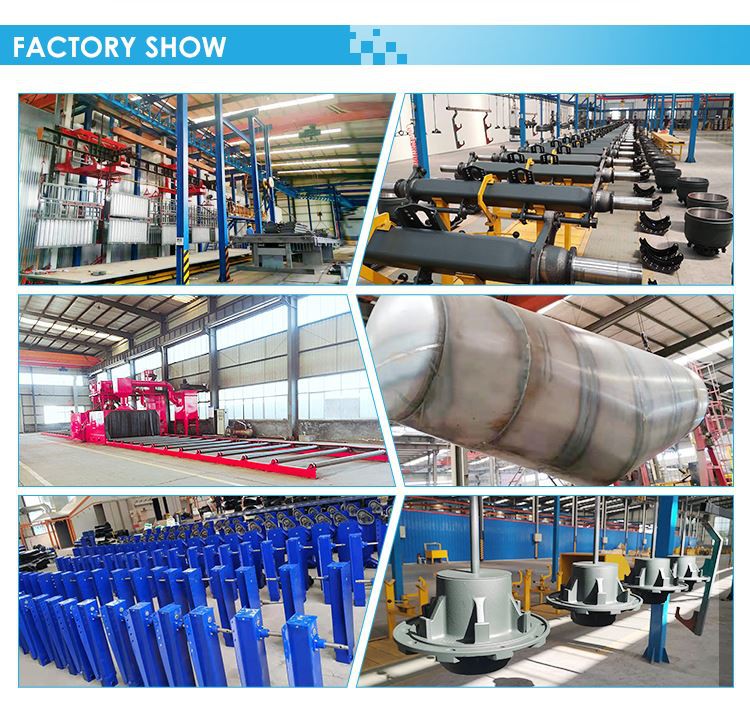

Our company :
