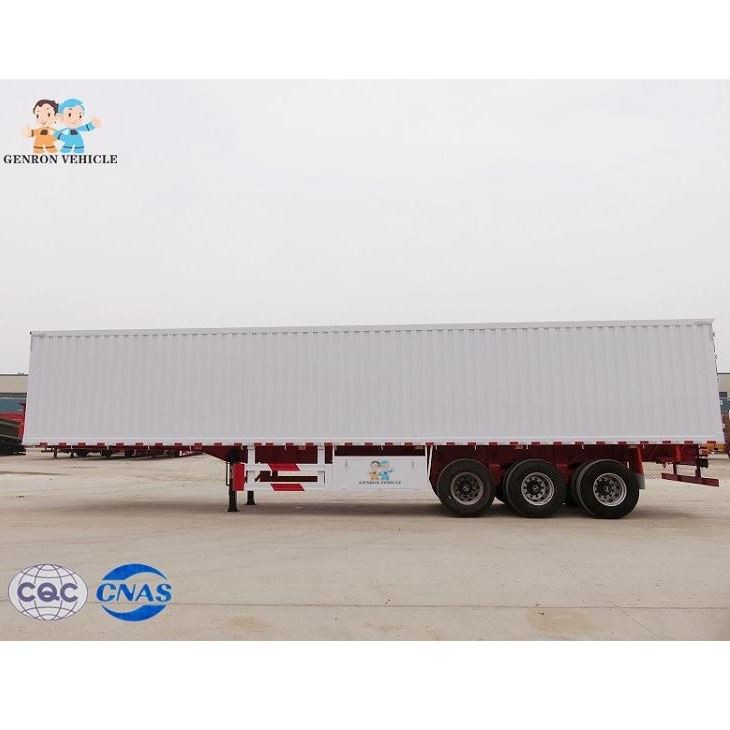

3 Axles Large Capacity Container Transport Semi Trailer
The 3Axles container transport semi trailer have a large capacity,we can product 40feet or two piece 20feet.
Send InquiryChat NowProduct introduction of 3 axles 40feet container transport semi trailer :
Tare Weight | About 8.3T |

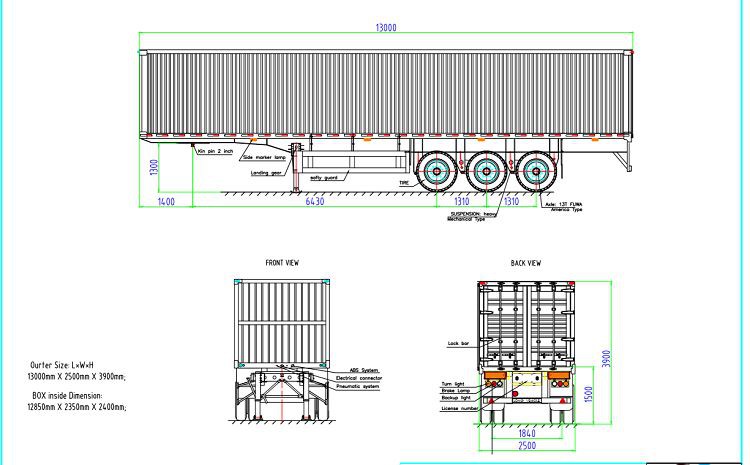

Dimension | 13000mm*2490mm*2860mm (Outer side) 12800*2300*1800mm (work space) |
Loading Capacity (T) | ≤ 60 T |
Axle | 13 T/16T, FUWA /BPW /GV Brand |
Rim | 9.00-22.5 9.75-22.5, 8.25-20 |
Tire | 12.00R22.5/ 315 80R22.5 12.00R20 |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel . |
Side beam | 16mm or 18mm channel steel ( Material is Q235steel ). |
Side Wall | 600mm-1800mm ，the open door can be chosen freely. |
Brake chamber | 6 relay valves; T30/30+T30 Spring brake chamber; One piece of 45L air tanks （special for exporting market） |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Our company:
Certificate:
Our customer:
It mainly used for long-distance freight transport& 20ft 40ft container.
It has 12 twist lock for 20ft&40ft container.
High-strength international steel is used for the flatbed semi trailer walking structure;The vehicle has a light dead weight, and ensures its anti-distortion, anti-seismic, anti-turbulence ability, to meet different road loading capacity.
Leaf spring suspension system support composition, reasonable structure, with strong rigidity and strength, used to support the load gentle impact.
It can be designed as customer's requirements.
