Container Trailer 20FT 40 FT Flatbed Semi Trailer
The flatbed semi trailer can used to delivery 20FT 40FT container or bulk cargos . Can be design for different demands .
Send InquiryChat NowThe Specification Of The Flatbed Semi Trailer
Tare Weight | About 7.1T |
Dimension | 12450mm*2490mm*1575mm |
Loading Capacity (T) | ≤ 45 T |
Axle | 13 T/16T, FUWA /BPW / other china famous Brand |
Rim | 9.00-22.5 or 9.75-22.5 |
Tire | 12.00R22.5/ 315 80R22.5 |

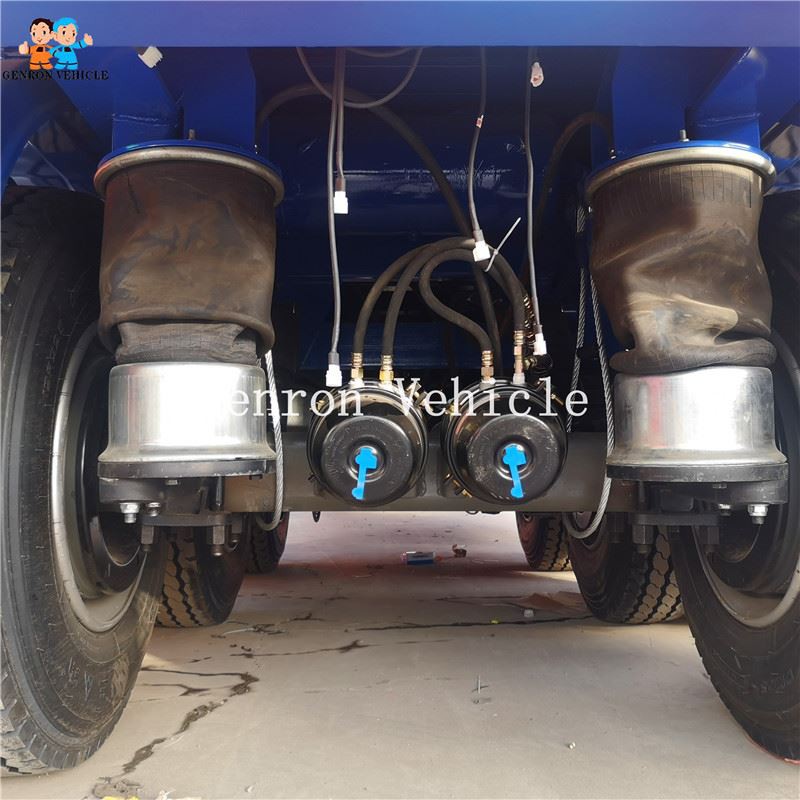

Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or Germany brand ) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (especial for exporting market ) |
King pin | 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel. |
Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
Bottom platform | 3mm diamond steel plate |
Brake chamber | RE 6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks |
ABS | Optional |

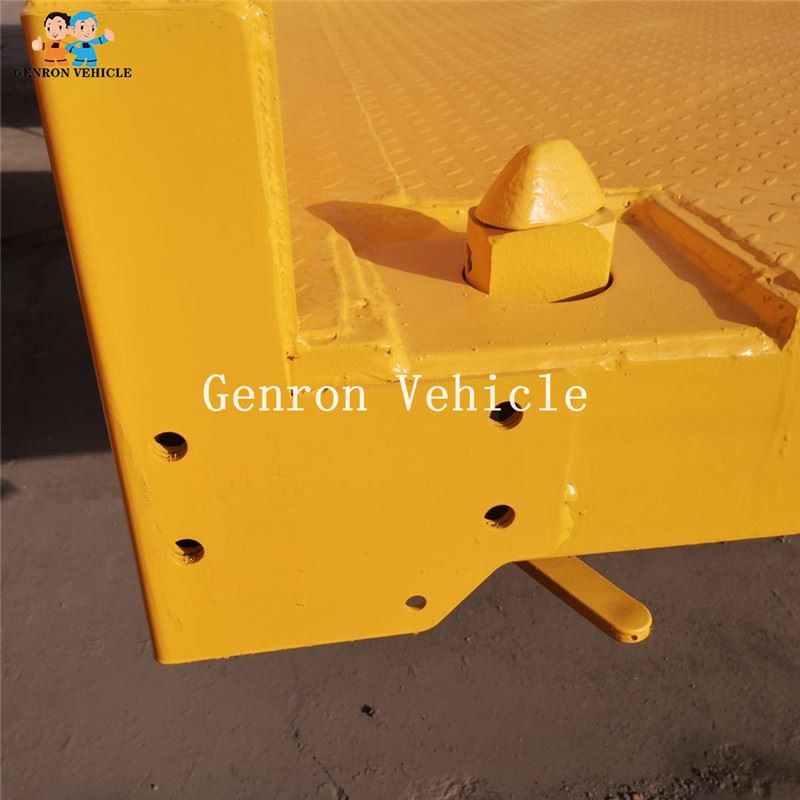

Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) (especial for exporting market ) |
Valve | WABCO valve (especial for exporting market ) |
Light | LED light (especial for exporting market ) |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |

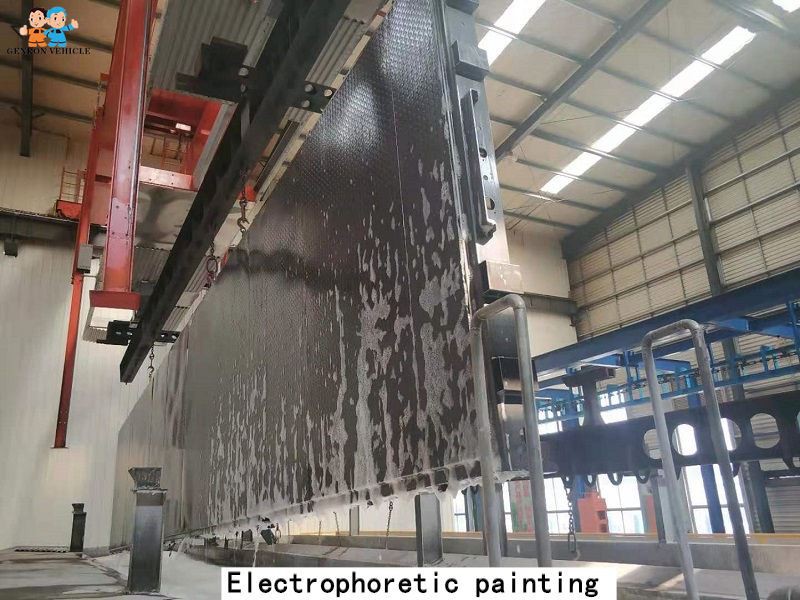

Painting | E-Coating process (make sure 7 years not drop paint,not lose varnish) |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |

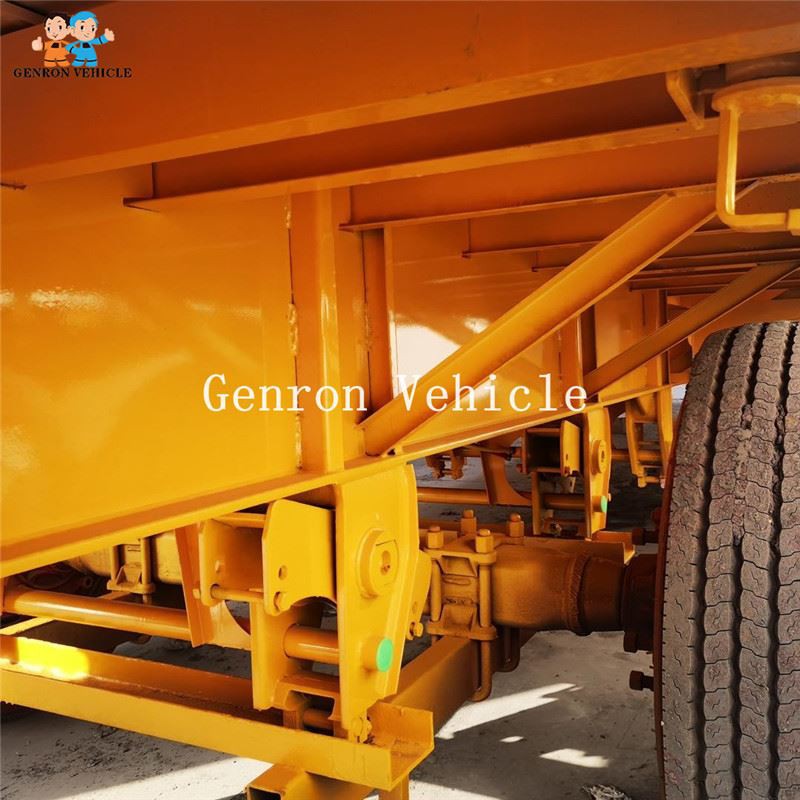

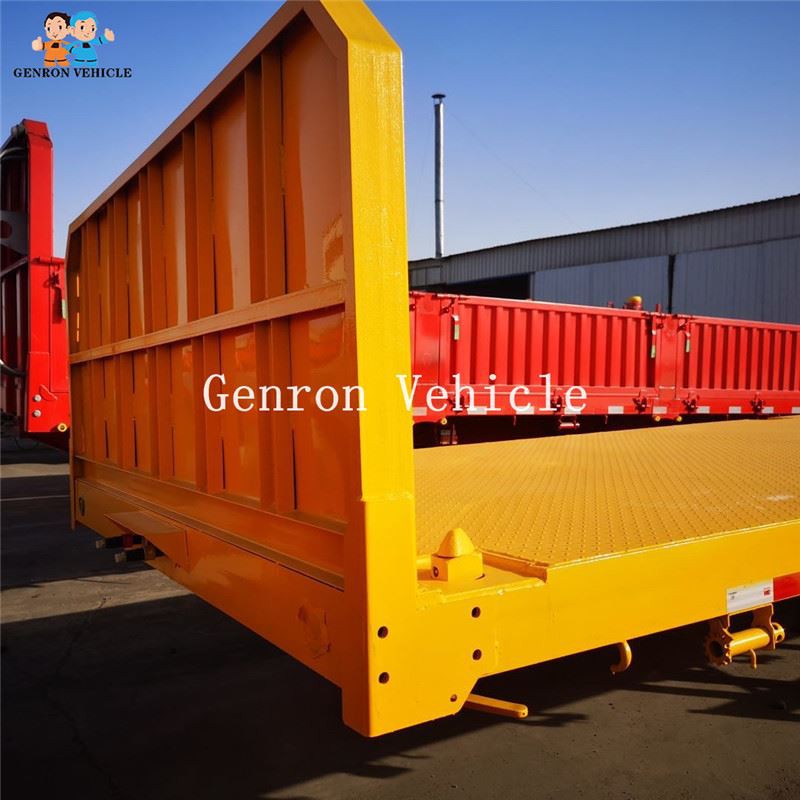

Product Details
The drawing of the flatbed semi trailer

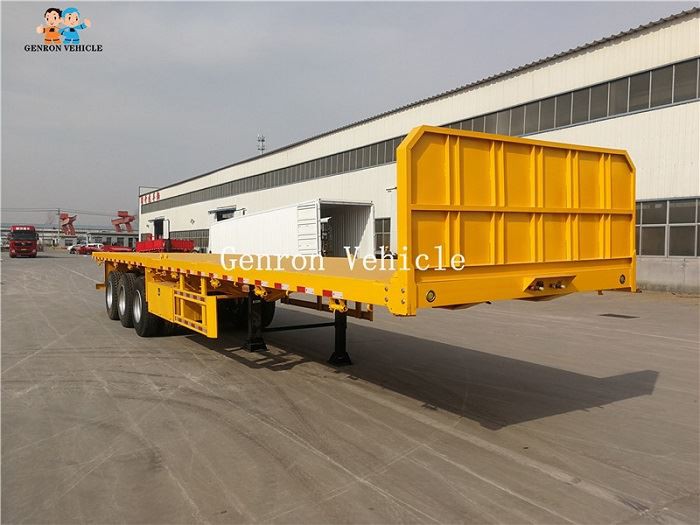

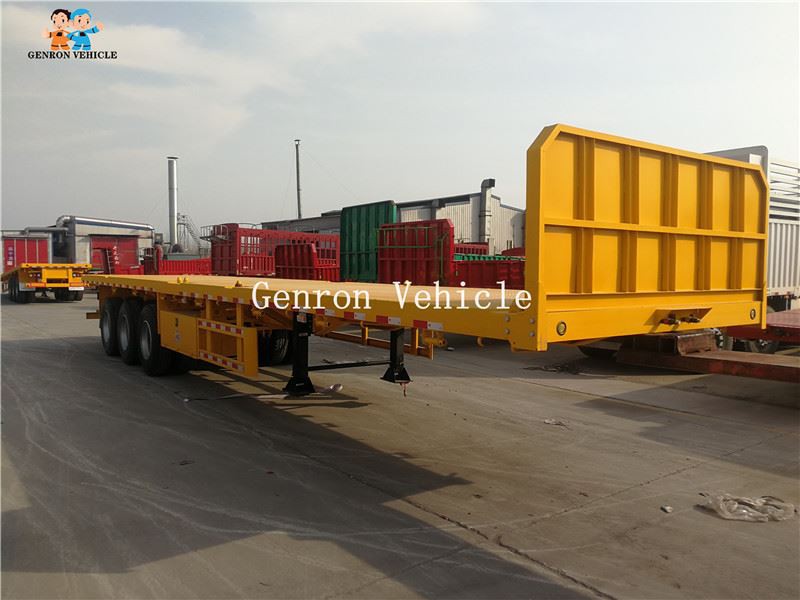

Container trailer 20FT 40 FT Flatbed semi trailer

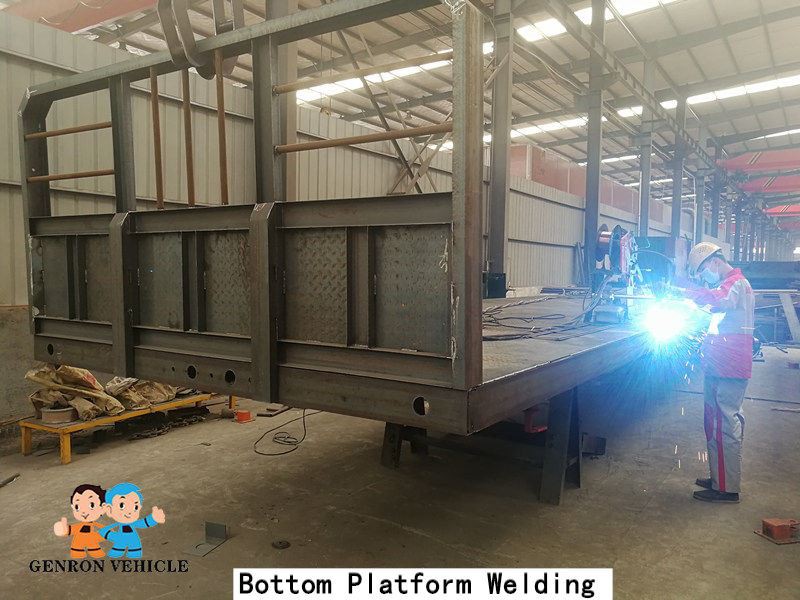

Factory Workshop

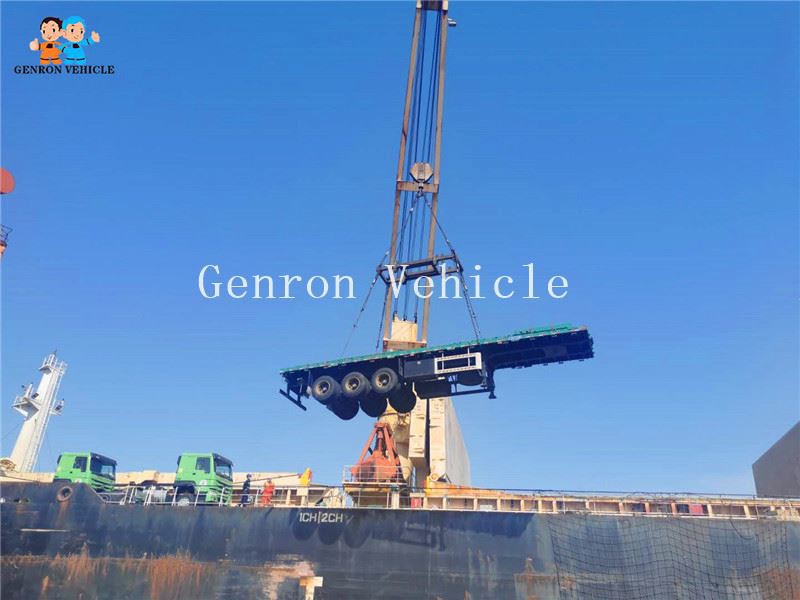

Delivery And Shipping
FAQ
Q:Which semi trailer brand is best in China?
A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .
The best expensive brand is CIMC ( this is government company ).Genron is private company ,we can supply low price
in high quality .
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money .
Q: What’s your payment terms?
A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time
after production finished and inspection .
2.L/C at sight .
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it.
Q:How many cities have been exported ?
A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
