Genron 37 Tons Remote Moving 20 Feet And 40 Feet Port Container Side Lifter Loader Trombone Chassis

Name: Genron 37 Tons Remote Moving 20 Feet And 40 Feet Port Container Side Lifter Loader Trombone Chassis
Brand: Genron
SKU: 161110920

The containers side lifter crane is widely used in sea port containers transport and transferring. Because the crane is moving on the skeleton semi trailer trucks, We can use crane loads both 20 feet and 40 feet containers. It is very convenient to transfer containers. Multi-function and useful. Side lifter, lift jack and lorry crane truck are really useful for containers. So please contact us right now for a new and high quality side lifter.

Send Inquiry Chat Now

H74353023393e4d928457935389fc1f28e

1. Configuration:

Container Side Loader Trailer
Outer side dimension (mm)	14100mm2500mm4100mm
Gross Weight	About 13 tons
Loading Capacity (Ton)	≤ 37 T
Chassis
Axle	3pcs 13T FUWA brand Axles
Tire	12.00R22.5 Triangle Brand 12 pcs
Rim	9.00-22.5 China Brand 12 pcs
Suspension	All mechanical suspension
Spring leaf	90(W)mm13(Thickness)mm10 Layer
King pin	JOST brand 3.5inch bolts type or Welding type
Support leg	China brand 28Tons (Double speed)
Main beam	Height: 500mm Upper plate is 20 mm Middle plate is 10 mm Down plate is 20 mm Material is Q345B Steel
Brake chamber	WABCO RE 6 relay valve; 2* T30/30+T30 Spring brake chamber
Twist Locks	8 pcs
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1.5m×0.5m×0.5m
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Loading arm
Tare weight	7000 kg
Max.lifting capacity	37000 kg
Max.stabiliser outreach	3200 mm
Max.working range	4000 mm
Overall height	2490 mm
Overall width	2500 mm
Overall lengh	1020 mm
Max.pressure of hydraulic system	28 MPa

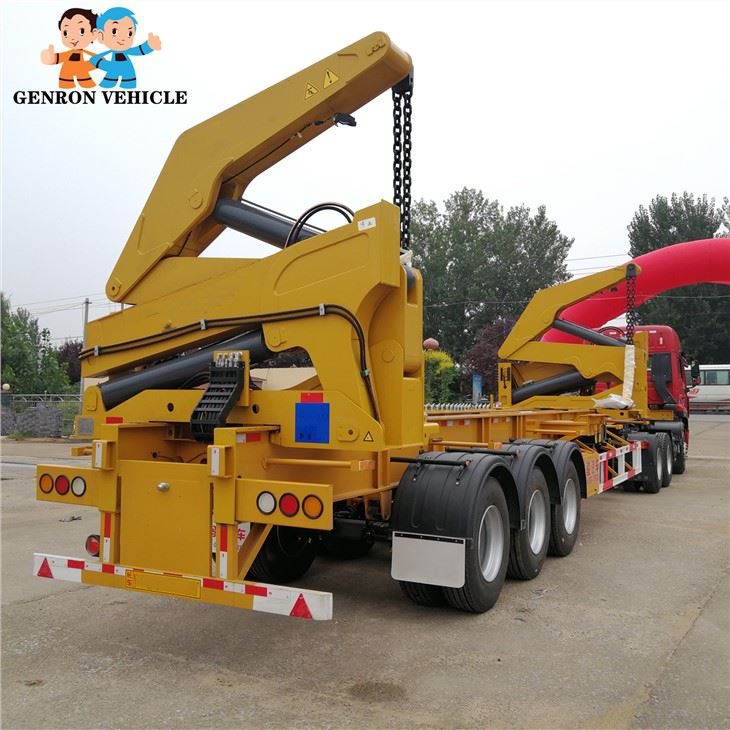

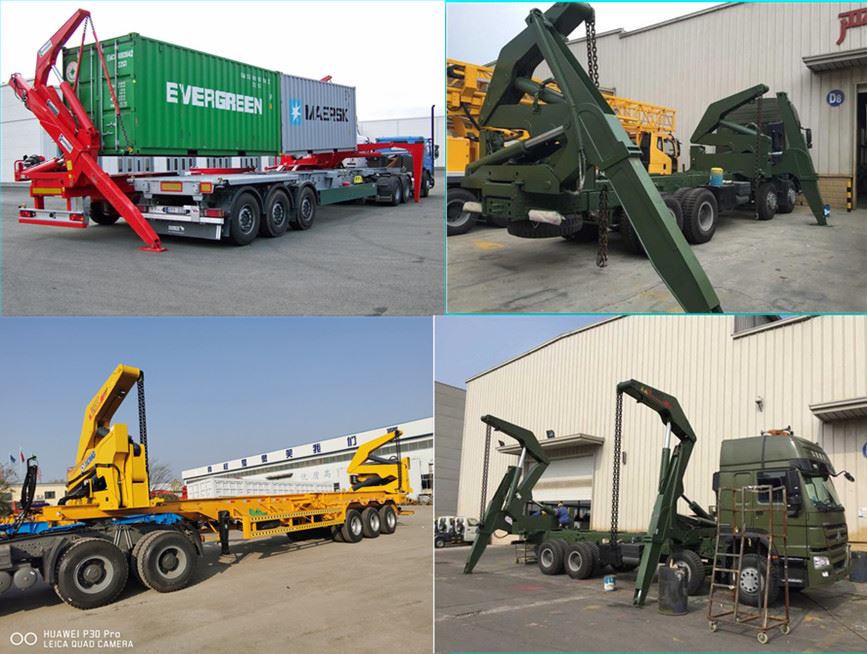

2. Container side lifter loader semi trailer picture show:

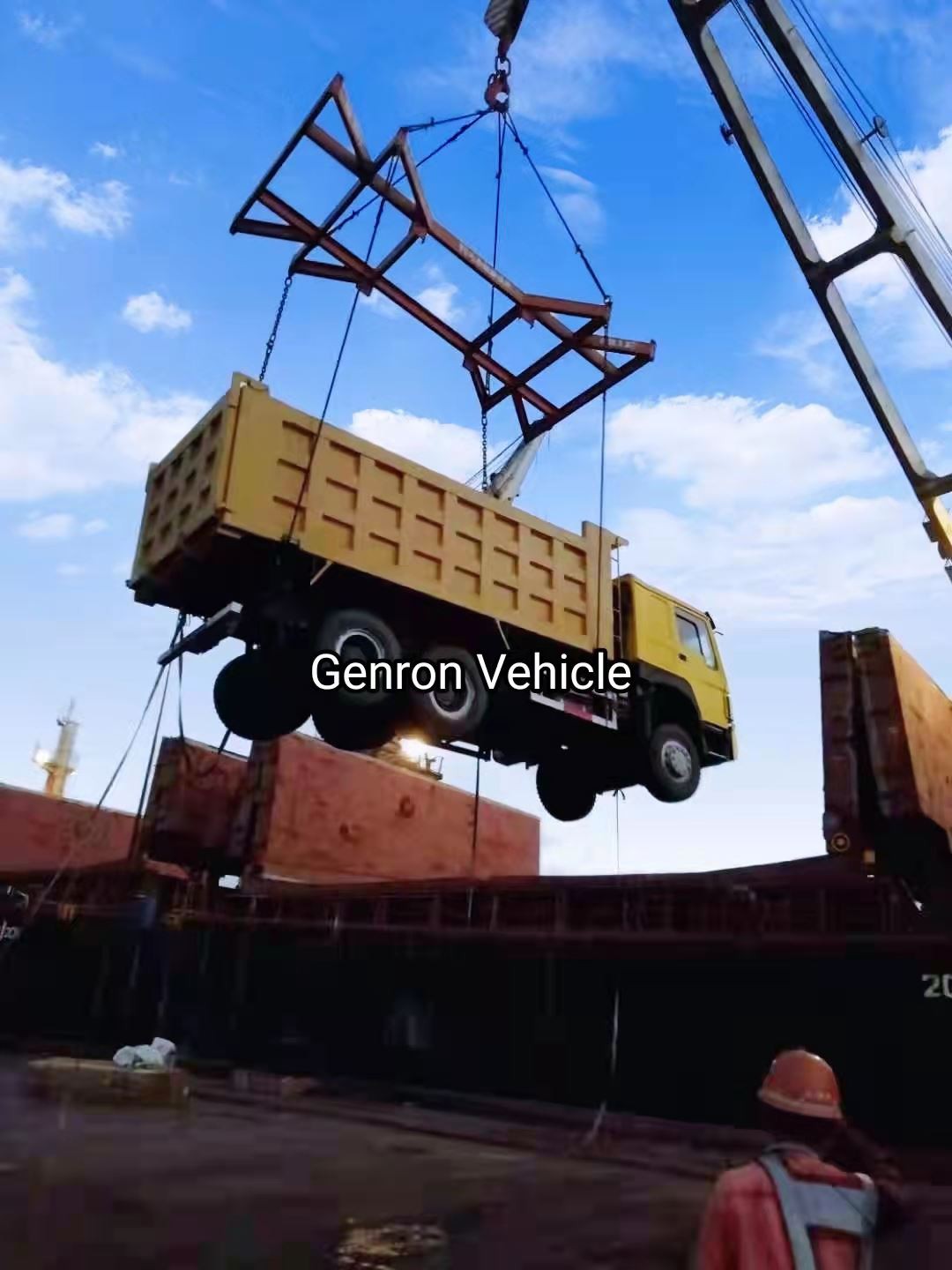

3, Transport way；

RFQ:

1. who are we?

We are based in Shandong, China, start from 2019,sell to Africa(60.00%),Southeast Asia(10.00%),Oceania(10.00%),Mid
East(10.00%),North America(5.00%),South America(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Truck Trailer,Trailer Spare Parts,Dry Ice Make Machine,Construction Machine,Diesel Tricycle
4. why should you buy from us not from other suppliers?
We have more than five factory partners which are at least TOP 3 factory in China suppliers ,we have our own technical team ,two
of them are up to Engineer , two of them are graduated from University ,have got own patented design ,use auto CADsolid figur

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,French,Russian
