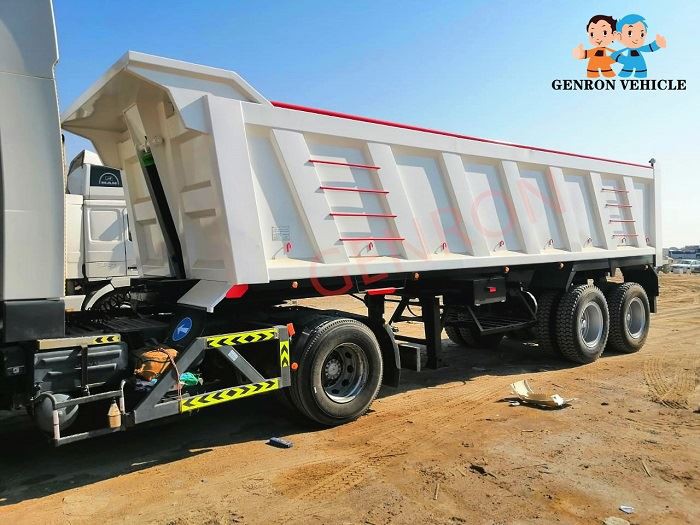

9.5M Bogie Suspension Rear Dump Semi Trailer
Product Details: This rear dump semi trailer adopts bogie suspension.Its advantages are: Left and right wheels will be involved in the bounce, the change of tire Angle is small so that the tire wear is small. It is not easy to change the wheel Angle when the body height is reduced, so that the...
Send InquiryChat NowProduct Details:

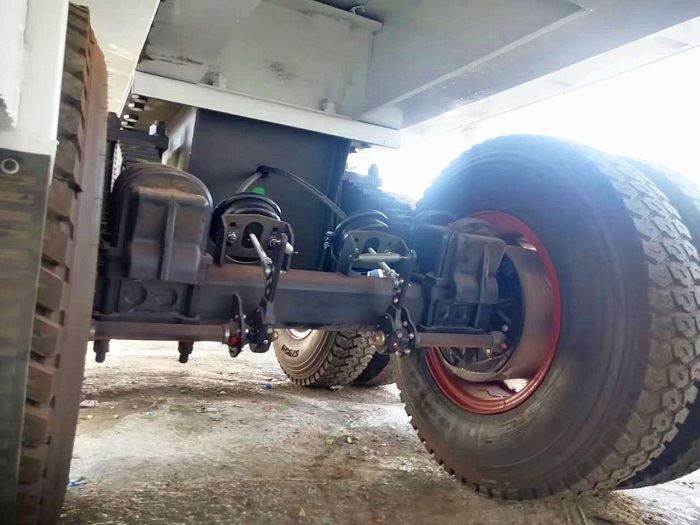

This rear dump semi trailer adopts bogie suspension.Its advantages are:
Left and right wheels will be involved in the bounce, the change of tire Angle is small so that the tire wear is small.
It is not easy to change the wheel Angle when the body height is reduced, so that the feeling of control is consistent.
Simple structure, low manufacturing cost and easy maintenance.
It takes up less space and can reduce the height of the bottom plate.
Configuration Table:
Dimension | 9500*2600*3400mm |
Tare weight | About 8500KGS |
Loading Capacity（T） | 54T |
Side wall thickness（mm） | 4mm,high strength steel |
Bottom plate thickness(mm) | 5mm,high strength steel |
Lifting system | 191 Hydraulic Lifting Cylinder |
Chassis | |
Main Beams | Height:500mm, upper plate is 14mm,middle is 8mm,down plate is 16mm,material is Q345B steel |
Axle | 16 tons per axle, 2pcs |
Landing Gear | CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | 32T bogie suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*17 Layer |
Pneumatic Braking System | WABCO brand valve; Spring brake chamber; one piece of 45L air tanks. |
Rim | 9.00-20 9pcs |
Tire | 12.00R20 9pcs |
ABS | Without |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By bulk cargo ship. |

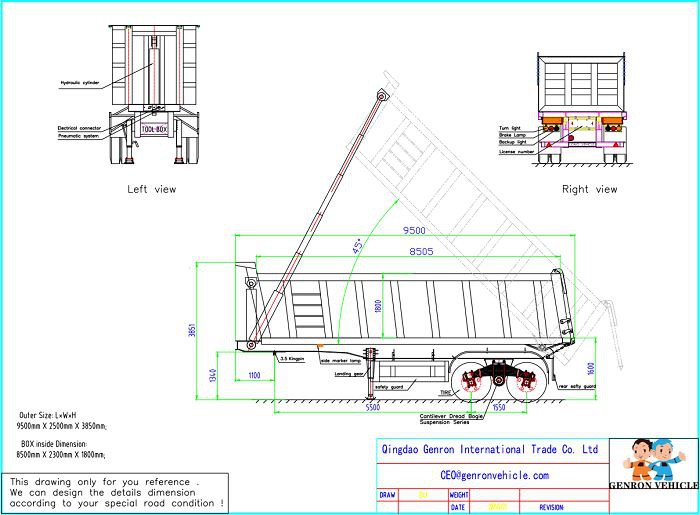

The Drawing:
