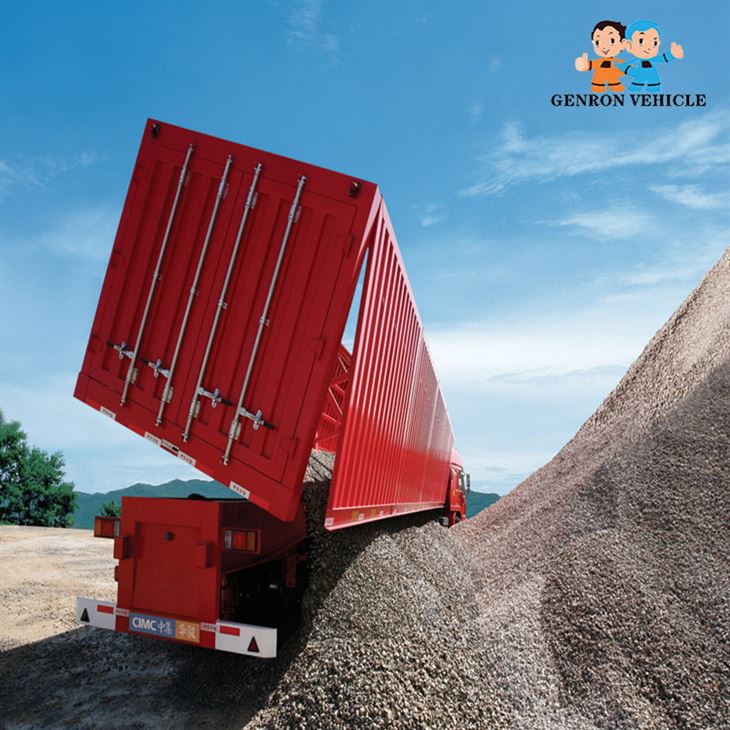

Side Tipper Truck
The side tipper truck is suitable for the transportation of bulk goods such as coal, ore, construction materials, etc. The carriage is rollover, which can effectively improve the transportation efficiency of bulk goods transported by the loader.
Send InquiryChat Now
The side tipper truck -- For transport bulk goods such as coal, ore, construction materials, etc.

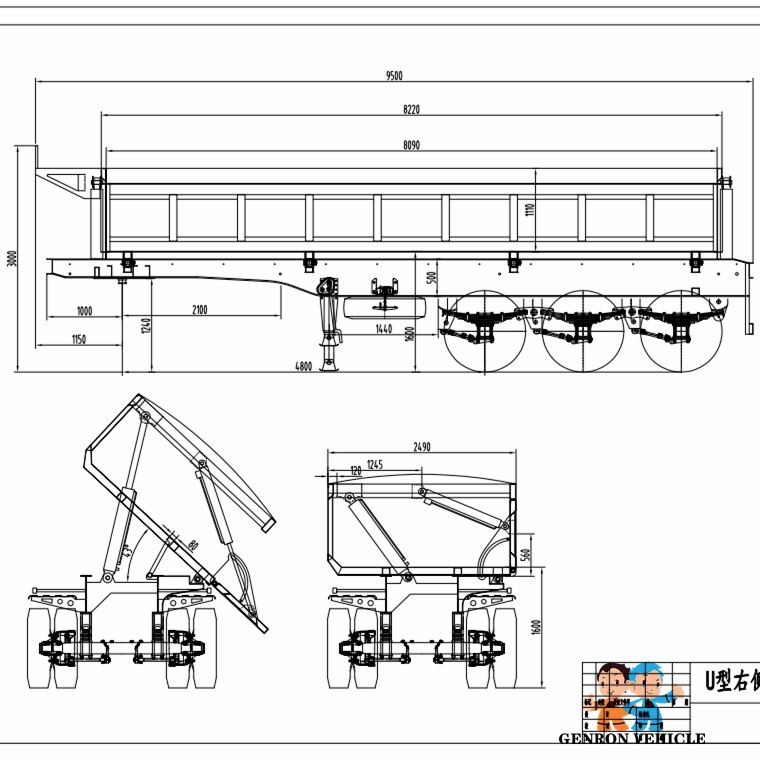

Main Dimensions | |
Dimension | 9200*2400*3200mm ( outside) 9000*2200*1500mm (work space ) |
Tare weight | About 10000KGS |
Total Volume（m3） | 30 m³ or less than 50tons |
Side wall thickness（mm） | 2.3mm Q235 steel (three or five door opening door ) |
Bottom plate thickness(mm) | 3mm diamond plate /Q235 steel |
Lifting system | Full set of Hydraulic Lifting system (Four diameter125 lifting cylinder, and one diameter140 lifting cylinder.) |
Chassis | |
Main Beams | Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel |
Axle | 3 axles, FUWA/HUAJING brand 13tons or 16tons per axles |
Landing Gear | JOST (D200T）or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/ America type / |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model . |
The features of the side tipper truck
Dump semi-trailer can be divided into two categories according to their uses: one is heavy-duty and super heavy-duty dump trucks for off-road transportation, mainly responsible for large-scale mining, engineering and other transportation tasks, usually used together with excavators. The other type of light and medium-sized ordinary dump truck for highway transportation mainly undertakes the transportation of sand, soil, coal and other loose goods, which is usually used together with loaders.
The carriage is rollover, which can effectively improve the transportation efficiency of bulk goods transported by the loader.
The frame and the longitudinal beam of the carriage are welded with high-quality manganese plate, and there are dustpan and rectangular box. It has high strength, strong lifting force, good rigidity and toughness, strong bearing capacity and no permanent deformation.

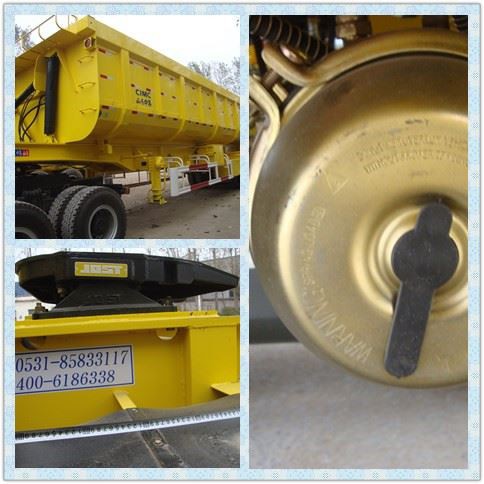

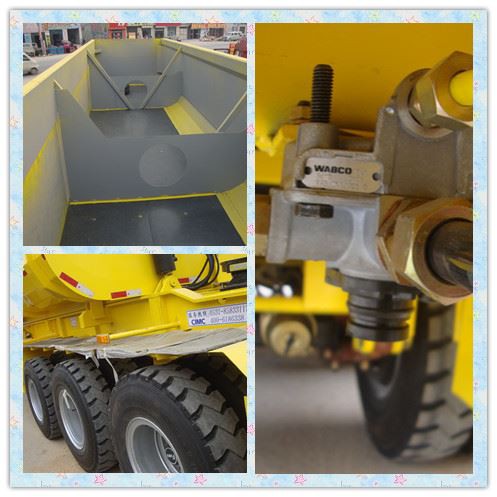

Details of the side semi trailer
Advantages of the side semi trailer

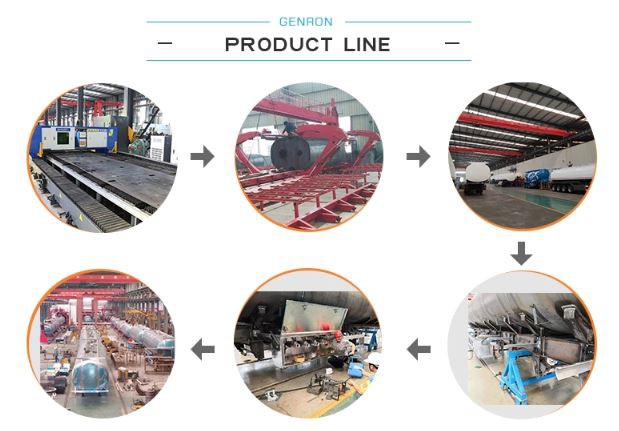

1. Excellent technology: the main parts are processed by advanced equipment, longitudinal beam and girder are welded by automatic submerged arc welding, and the axle and steel spring are accurately assembled by assembly machine.
2. Frame: the frame is a frame structure composed of longitudinal beam and reinforced cross beam welded by 16Mn automobile steel;
3. Axle: high quality axle produced by professional manufacturer is selected, which has strong bearing capacity and is not easy to deform;
4. Suspension system: adopt unique new suspension system with high strength and strong impact resistance;
5. Braking system: adopt safe and reliable circuit air brake system;
6. It can be designed separately according to different needs of customers, or tell us that the medium of the goods you carry is different. We will design the corresponding model for you to meet the personalized needs of customers. Please refer to the table below!
FAQ
1.What's your payment?
Our Payment could be T/T or L/C.
2.What we can do before sale ?
Quotation:
We will gave you the matched product details configuration and drawing according to your market ,show you the best-selling model pictures and reasonable best price.
Reception & Accompany
After you accepted the offer price we have made to your company have the pre-interview ,you can come to visit our office and then go to visit factory ,we will arrange your everything in China. Or if you not sure which model of trailer or other product you should chose ,we can arrange our professional technical checking your market together with you.
3.How we can do After Sale Service ?
We have our own technical team, we will gave you repaired method within 12 hours through calling or email. We can go to visit you gave you technical guide after or before you buy ‘Genron’ products.
We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.
We can go to your place to teach your team how to operate the trailer or our machines .
