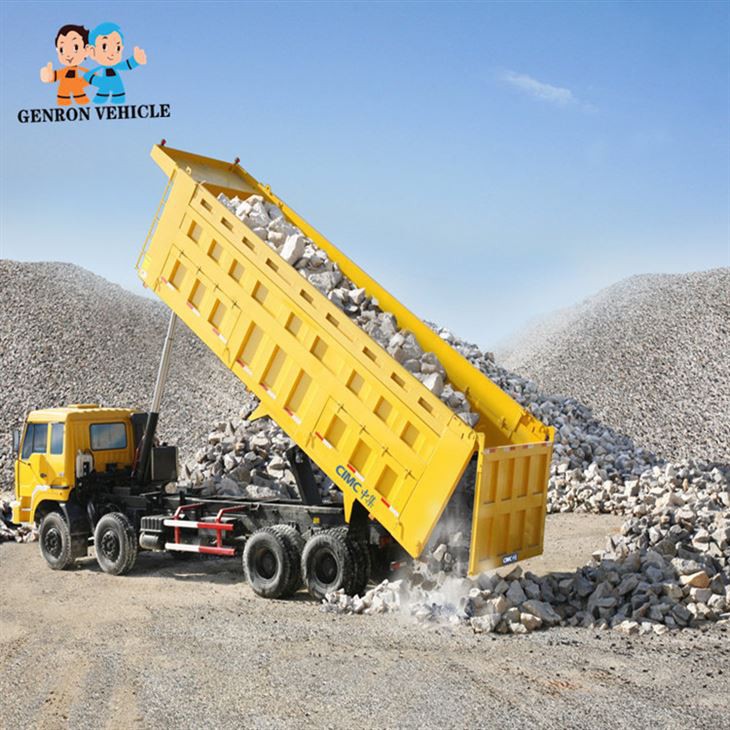

Dump Truck Tipper

DUMPING/TIPPER SEMI TRAILER can delivery for Sands, Stone , Coal，limestone ,etc. Our dump truck tipper has high bearing strength, low center of gravity, and is not easy to roll over. Moreover, the damage of tire, leaf spring and frame is reduced a lot. We can also provide OEM service! Welcome to contact us!

Send Inquiry Chat Now

微信图片_20200630143201

REAR DUMPING SEMI TRAILER--Delivery for Sands, Stone , Coal ,limestone

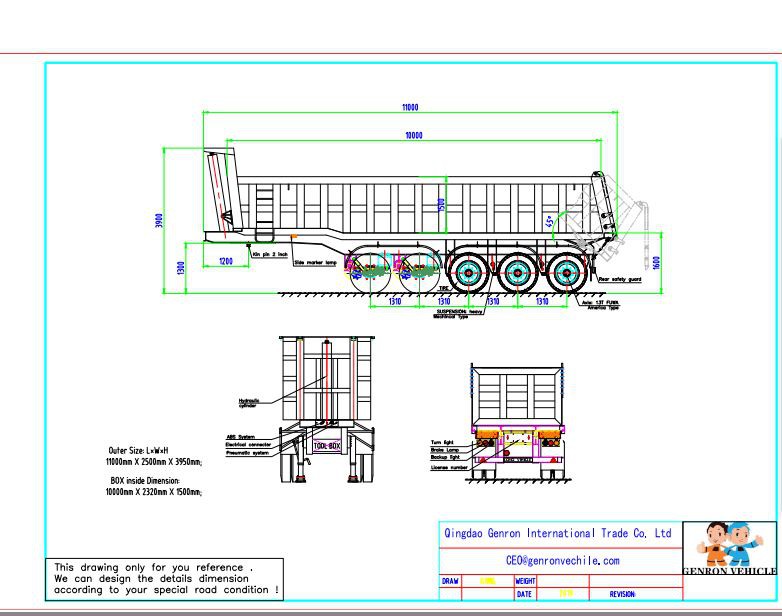

Main Dimensions
Dimension	1128024953970mm ( outside) 1050023001700mm (work space )
Tare weight	About 15600KGS
Total Volume（m³）	37 m³ or less than 80tons
Side wall thickness（mm）	6mm Q235 steel
Bottom plate thickness(mm)	8mm /Q235 steel
Lifting system	Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder
Chassis
Main Beams	Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle	3 axles, FUWA/HUAJING brand 16tons per axles
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/ America type /
Leaf Spring	90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .

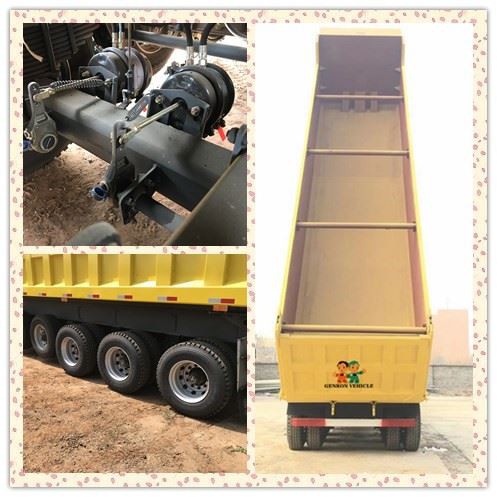

Details of the dump truck tipper

Advantages of the dump truck tipper

Our dump truck has high bearing strength, low center of gravity, and is not easy to roll over. Moreover, the damage of tire, leaf spring and frame is reduced a lot. We have a strong design ability, as long as customers provide parameters,
we can design drawings to customers within 24 hours. Shandong Liangshan Tongya Automobile Manufacturing Co., Ltd. has been producing dump trucks since 1988.
Our products have been sold all over the world and are in good condition.
We can also provide OEM service!

Characteristics of the dump truck tipper

1. The self unloading semi-trailer is suitable for the transportation of bulk goods such as coal, ore, construction materials, etc.

2. The carriage adopts rollover and backward dump mode, which can effectively improve the transportation efficiency of bulk goods transported by the loader.

3. The frame and the longitudinal beam of the carriage are welded with high-quality manganese plate, and there are dustpan and rectangular box. It has high strength, strong lifting force, good rigidity and toughness, strong bearing capacity and no permanent deformation.

4. Excellent technology: Hyva hydraulic jacking cylinder is selected, which has stable lifting performance. The longitudinal beam is made of automatic submerged arc welding. The assembly machine is used to accurately assemble the wheel axle and steel spring.

5. It can be designed separately according to the different needs of customers, or tell us that the medium of the goods you carry is different. We will design the corresponding model for you to meet the personalized needs of customers.
