Bulk Cement Carrier Truck

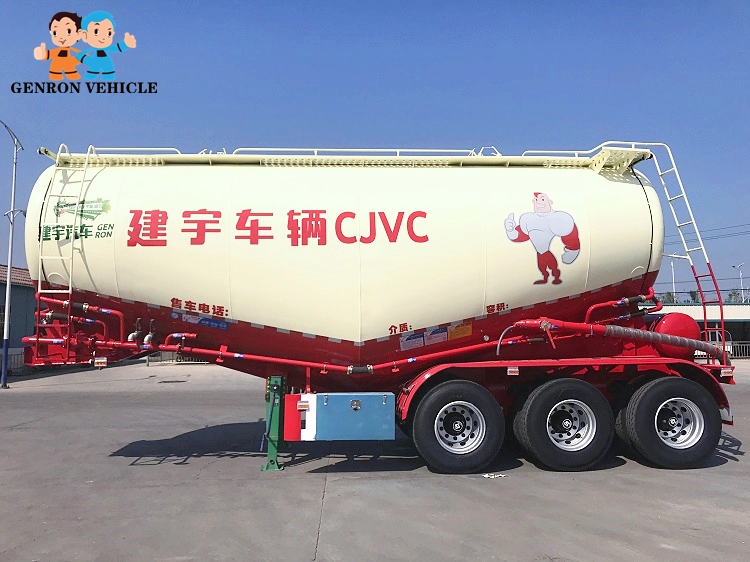

42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle Powder material transport semi-trailer is for large quantities of dust materials (bulk cement) transport of special vehicles,It is suitable for the transportation and air pressure unloading of fly ash, cement, limestone, ore powder and other particles whose particle diameter is not more than 0.1m

Send Inquiry

42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle

42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle
Powder material transport semi-trailer is for large quantities of dust materials (bulk cement) transport of special vehicles,It is suitable for the transportation and air pressure unloading of fly ash, cement, limestone, ore powder and other particles whose particle diameter is not more than 0.1m.

42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle

42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle

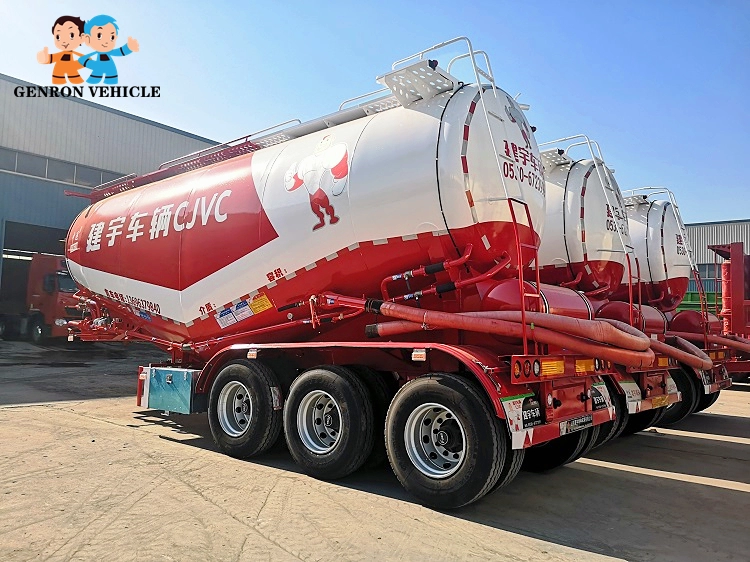

Product Details

42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle

42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle

1.Higher loading rate: >98%, fully filling.

2.Lower residual rate: <0.2%, make the most of transportation.
3.Lighter tare weight: 5.8 ton minimum, reduce transport fuel consumption.

42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle

4.Higher working pressure: Testing 3bar, working 2.5bar, >15m higher delivery height suitable most silo.

5.Faster unloading: >1.5ton/min, shorter compressor working time, help compressor longer life and lower fuel cost.

42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle

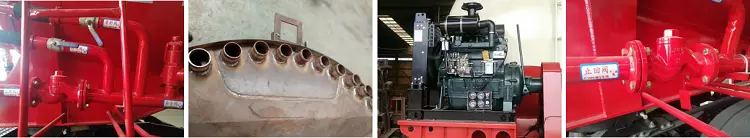

Tank Body
Product Name
High Load Capacity Bulk Cement Transport Truck Trailer
Tare Weight
About 7.5T---15T
Outer Side Dimension
12000mm*2490mm*3990mm
Total Volume
42 m³
Tanker Body Material
5mm or 6mm/ Q235 carbon steel
End Plate
5mm or 6mm /Q235 carbon steel
Diesel Engine
WEICHAI ,Tianhe 4100/4102 or other brand
Compressor
BOHAI 10m³/12 m³or other brand
Manhole Cover
Carbon steel or Aluminum 500mm
Discharging Valve
Diameter is 3 or 4 inch (Material: Aluminum )
Discharging Pipe
3 or 4 inch rubber hose, 1pcs, 6m/each
Cat Walk
With (Common model or special design)
Chassis Parts
Axle
2 or 3 axles, 12T/13T/16T, BPW/FUWA/GV brand
Rim
9.00-22.5/8.00-20/8.5-20 China Brand (special for export market )
Tire
12.00R22.5/315 80R22.5/11.00R20 /12.00R20(special for export market )
Suspension
Mechanical suspension (Germany Type or America Type)
Or Air suspension (China brand or BPW brand ) (special for export market )
Spring leaf
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
(special for export market )
King pin
JOST 2.00 or 3.5 inch bolt-in king pin
Landing Gear
JOST (D200T)or CHINA BRAND 28T
Main Beam
Welding Design ,Q345 carbon steel
Side Beam
16mm or 18mm channel steel (Material is Q235steel).
Brake Chamber
T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks
ABS
optional
Valve
WABCO valve
Voltage
24V
Receptacle
7ways(7 wire harness)
Tool box
One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner, and 1 unit cranking bar)
Painting
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive paint, 2 coats of final paint.
Shipping Terms
By bulk cargo carrier, RORO.

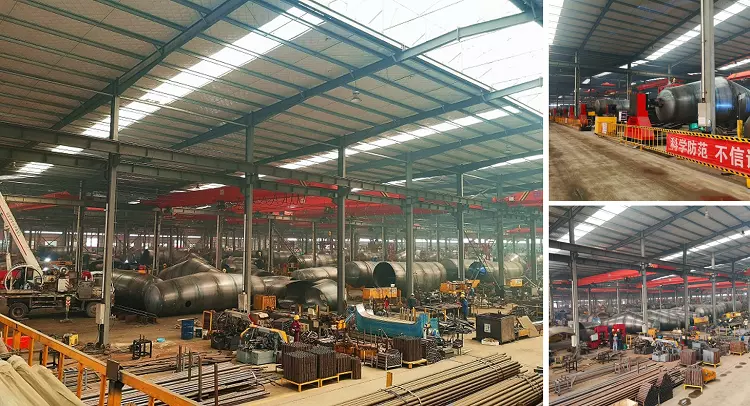

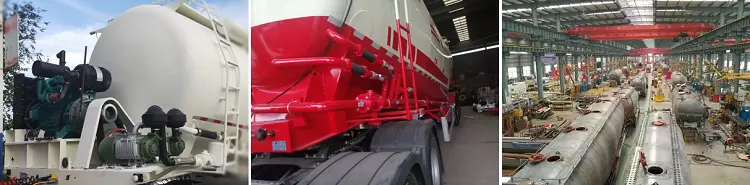

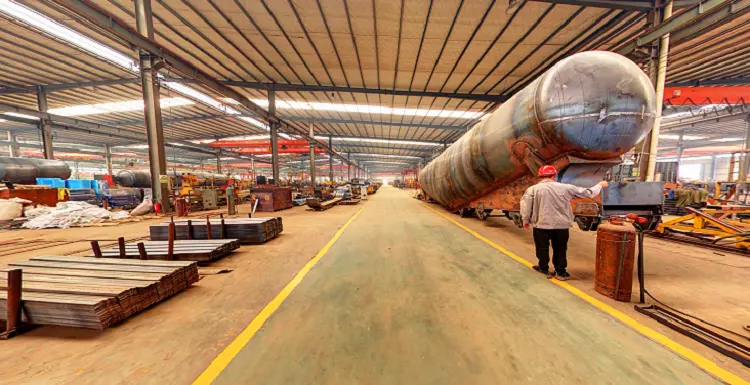

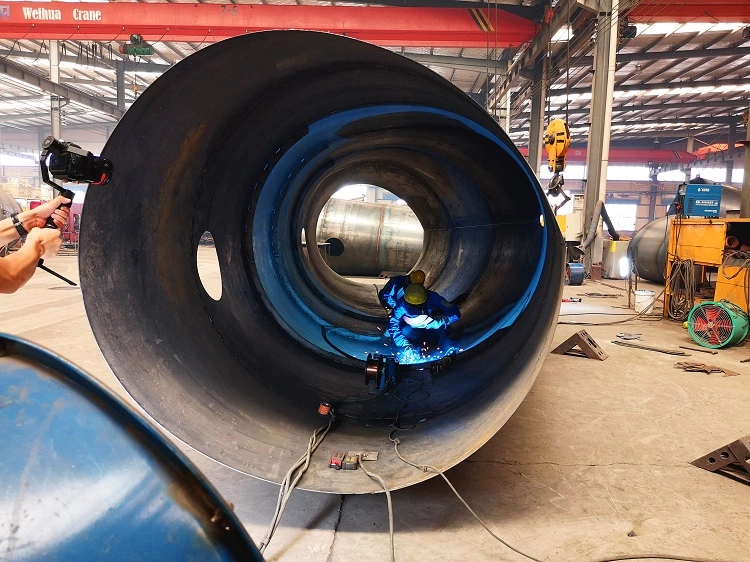

Plant Facilities

42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle

42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle

42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle

42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle

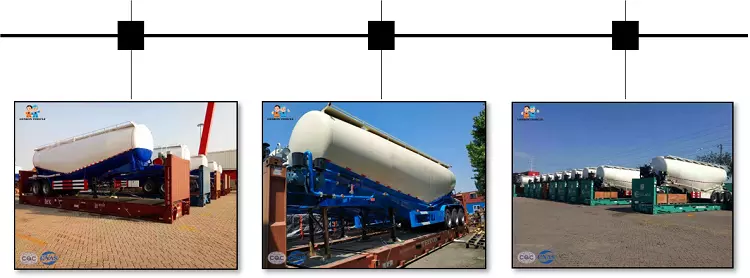

Packaging & Shipping

42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle


42 CBM Bulk Cement Carrier/Tanker Trailer for Kenya with BPW Axles from China Genron Vehicle
