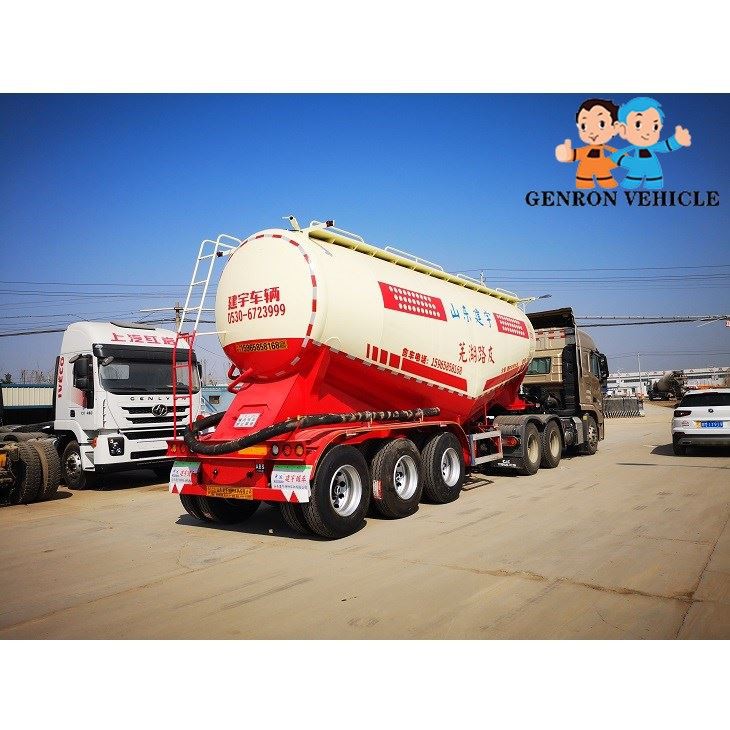

3 Axles Air Suspension Dry Bulk Tanker Trailer
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
Send InquiryProduct introduction of 3 Axles Air Suspension Dry Bulk Tanker Trailer:
Main Dimensions | |
Tank Body | |
Shape | Optional ( One Silo with V type or Two ,Three Silos Design) |
Dimension | 12000mm*2490mm*3990mm ( Exact size depends on the final design) |
Tare weight | About 7500KGS-15000KGS |
Total Volume（m3） | 25m³-68 m³ |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel |
End Plate | 5mm or 6mm /Q235 carbon steel |

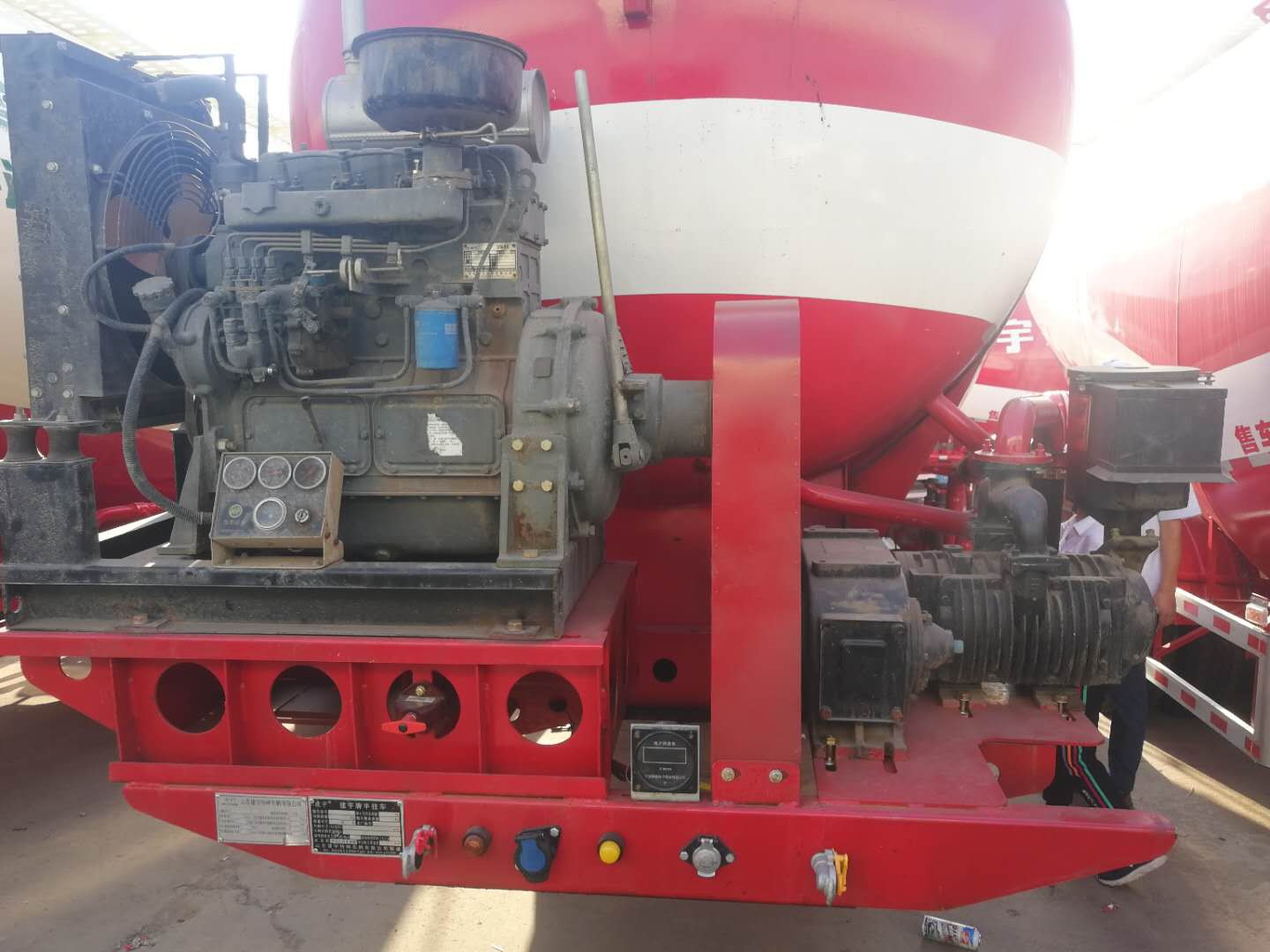

Diesel Engine | WEICHAI ，Tianhe 4100/4102 or other brand |
Compressor | BOHAI 10m³/12 m³or other brand |
Manhole Cover | Carbon steel or Aluminum∮500mm |
Discharging Valve | Diameter is 3 or 4 inch （Material: Aluminum ） |
Discharging Pipe | 3 or 4 inch rubber hose, 1pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Welding Design ,Q345 carbon steel |
Axle | 2 or 3 axles, 12T/13T/16T, BPW/FUWA/GV brand |
Landing Gear | JOST (D200T）or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /Air Suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
Pneumatic Braking System | 6 relay valves; T30/30+T30 Spring brake chamber; 45L air tanks. |
Detail of 3 Axles Air Suspension Dry Bulk Tanker Trailer:
1. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tire, are purchased centralized by Genron group,
every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied
during the whole producing process to ensure the welding quality.
Certificate:

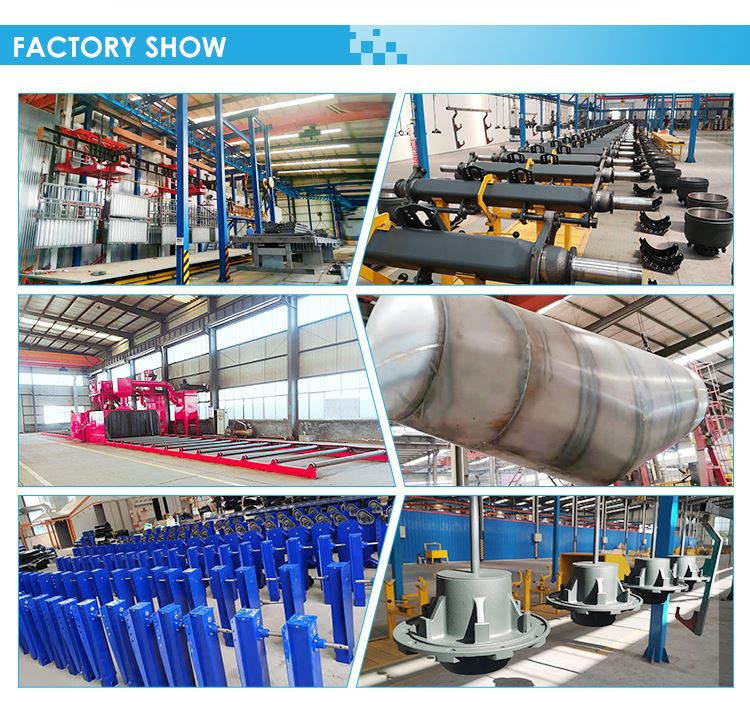

Our company:
