Steel Used To Transport Cement Dry Bulk Tanker Trailer

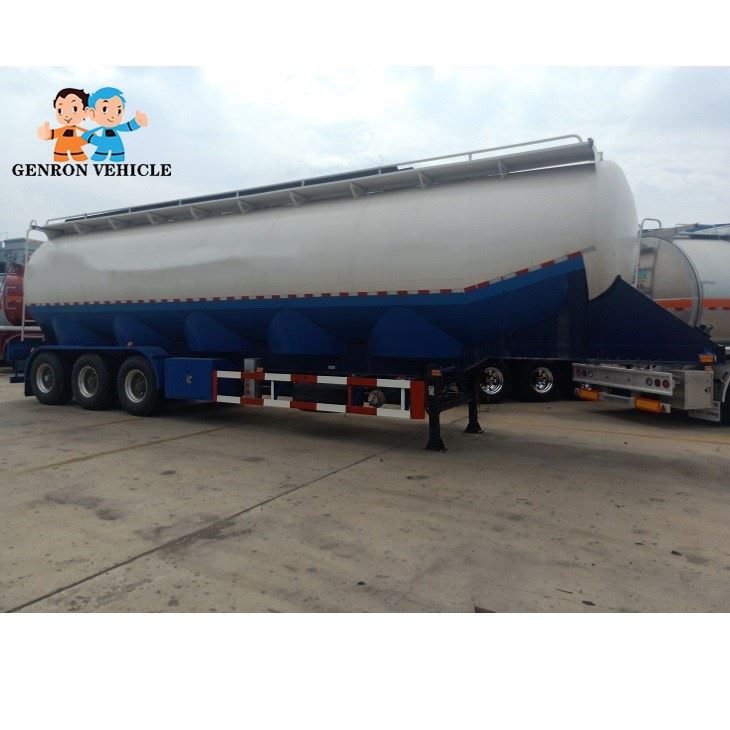

3 Axles steel dry bulk tanker trailer is used to transport Cement, fly ash, lime powder and other materials.
Send InquiryChat NowProduct introduction:
3 Axles steel dry bulk tanker trailer is used to transport Cement, fly ash, lime powder and other materials.
Main Dimensions | |
Tank Body | |
Shape | Optional |
Dimension | 12000mm*2490mm*3990mm |
Tare weight | About 7500KGS-15000KGS |
Total Volume（m3） | 25m³-68 m³ |
Tanker Body Material | 5mm Q235 carbon steel |
End Plate | 5mm Q235 carbon steel |
Diesel Engine | WEICHAI 4102 or other brand |
Compressor | BOHAI 10m³ |
Manhole Cover | Carbon steel |

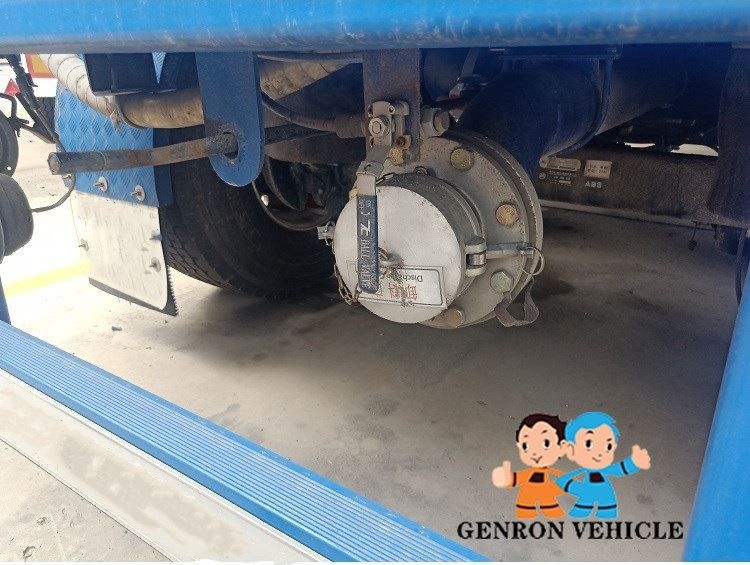

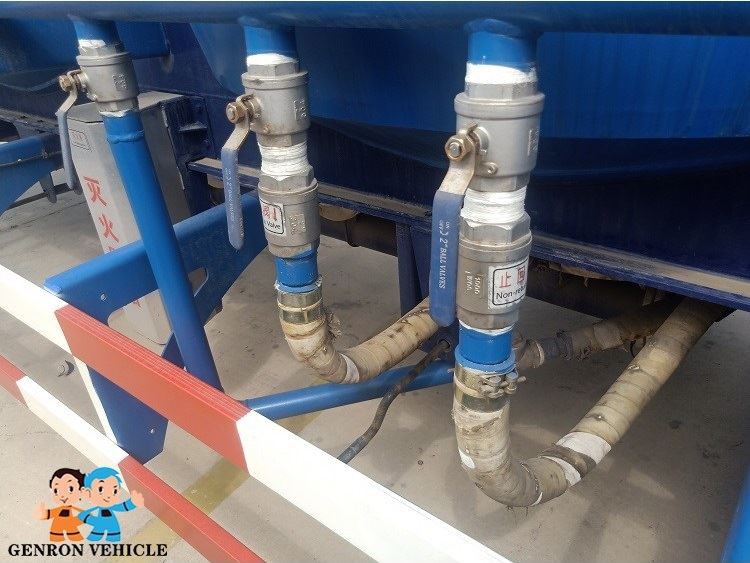

Discharging Valve | Diameter is 3 inch（Material: Aluminum ） |
Discharging Pipe | 3 or 4 inch rubber hose, 1pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Welding Design ,Q345 carbon steel |

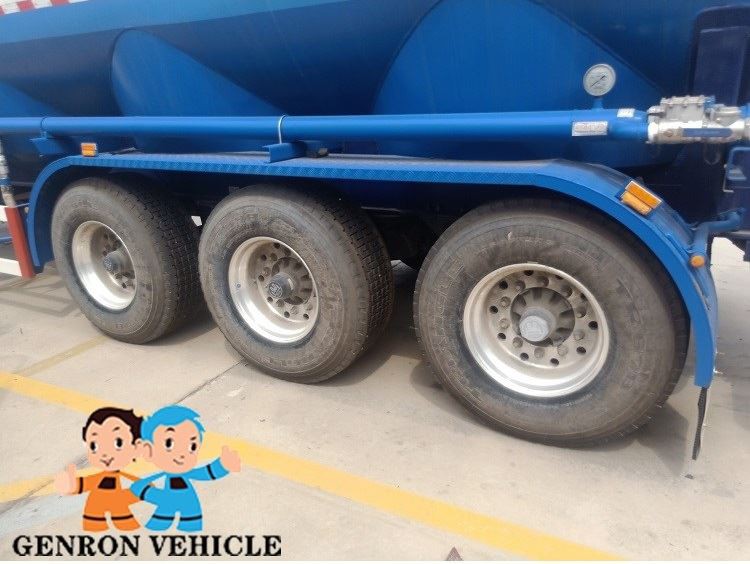

Axle | 3 axles, 16T, FUWA brand |
Landing Gear | CHINA BRAND 28T |
King Pin | JOST 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /Air Suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
Pneumatic Braking System | 6 relay valves; T30/30+T30 Spring brake chamber; 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO |
Detail information:
Advantage:
1.Tanker body 5mm making the tanker service life longer;
2. Automatic welding guarantee the safety in use;
3. Air belts inside the tanker help the discharge faster;
4.Serious treatment about the surface: sandblasting, puttying of whole tanker body and painting;
5.Reliable and satisfactory after-sale service.
