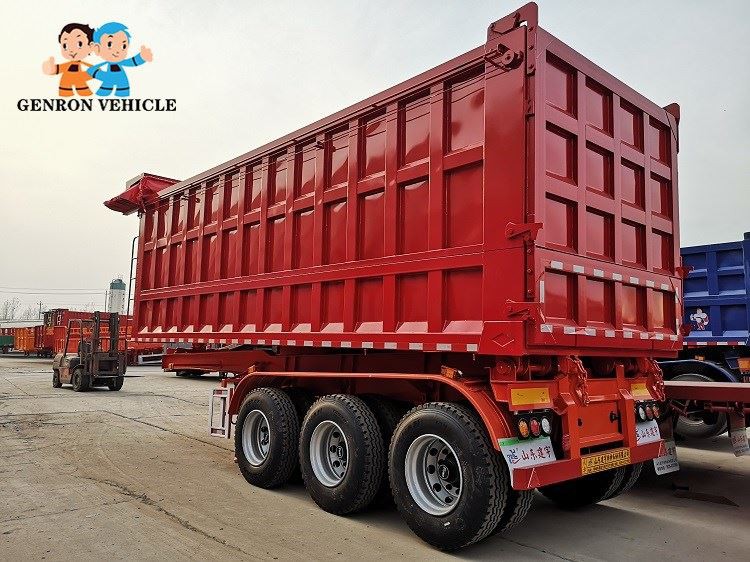

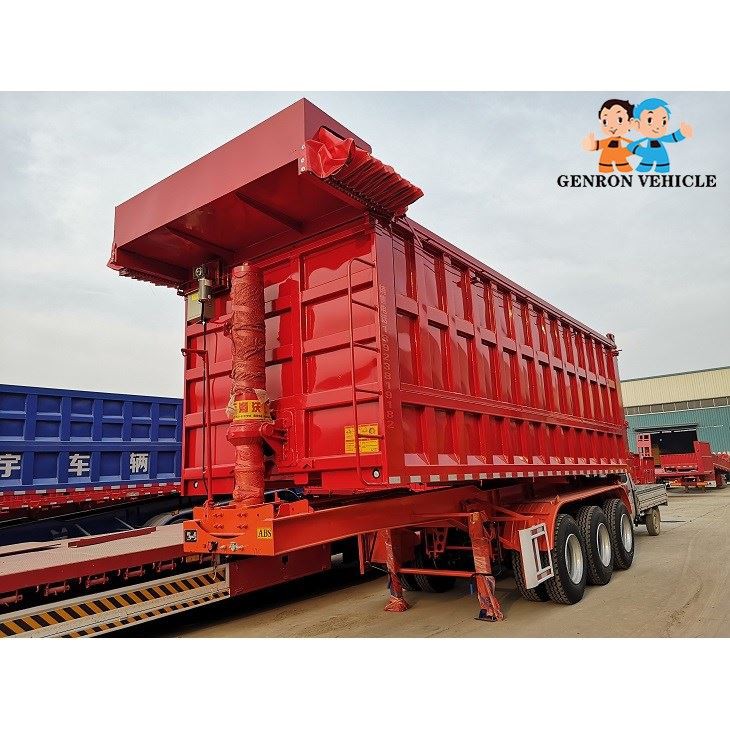

3 Axles Rear Dumping Semi Trailer
1. Excellent technology: the main parts are processed by advanced equipment, longitudinal beam and girder are welded by automatic submerged arc welding, and the axle and steel spring are accurately assembled by assembly machine. 2. Frame: the frame is a frame structure composed of longitudinal beam and reinforced cross beam welded by 16Mn automobile steel; 3. Axle: high quality axle produced by professional manufacturer is selected, which has strong bearing capacity and is not easy to deform; 4. Suspension system: adopt unique new suspension system with high strength and strong impact resistance; 5. Braking system: adopt safe and reliable circuit air brake system; 6. It can be designed separately according to different needs of customers, or tell us that the medium of the goods you carry is different. We will design the corresponding model for you to meet the personalized needs of customers. Please refer to the table below!
Send InquiryProduct introduction:
Name | Truck Semi Trailer |
Tare Weight | About 9T |
Dimension | 11000mm*2490mm*3950mm |
Loading Capacity (T) | ≤ 60 T |
Axle | 13 T/16T, FUWA /BPW /GV Brand |
Rim | 9.00-22.5 9.75-22.5（special for export market ） |
Tire | 12.00R22.5/ 315 80R22.5 （special for export market ） |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) （special for export market ） |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 （special for export market ） |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel. |
Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
Bottom Platform | 3-6mm diamond steel plate |
Side Wall | 600mm-1500mm ，or can be made into box type ,for choice thickness from 2mm-6mm |
Brake chamber | 6 relay valves; T30/30+T30 Spring brake chamber（TKL brand）; One piece of 45L air tanks |

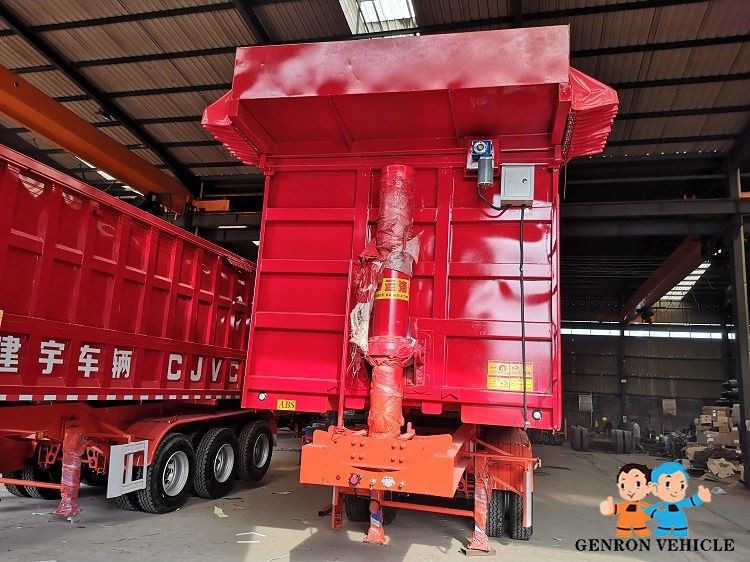

Detail:
Advantage:
1. Excellent technology: the main parts are processed by advanced equipment, longitudinal beam and girder are welded by automatic submerged arc welding, and the axle and steel spring are accurately assembled by assembly machine.
2. Frame: the frame is a frame structure composed of longitudinal beam and reinforced cross beam welded by 16Mn automobile steel;
3. Axle: high quality axle produced by professional manufacturer is selected, which has strong bearing capacity and is not easy to deform;
4. Suspension system: adopt unique new suspension system with high strength and strong impact resistance;
5. Braking system: adopt safe and reliable circuit air brake system;
6. It can be designed separately according to different needs of customers, or tell us that the medium of the goods you carry is different. We will design the corresponding model for you to meet the personalized needs of customers. Please refer to the table below!
Certificate:

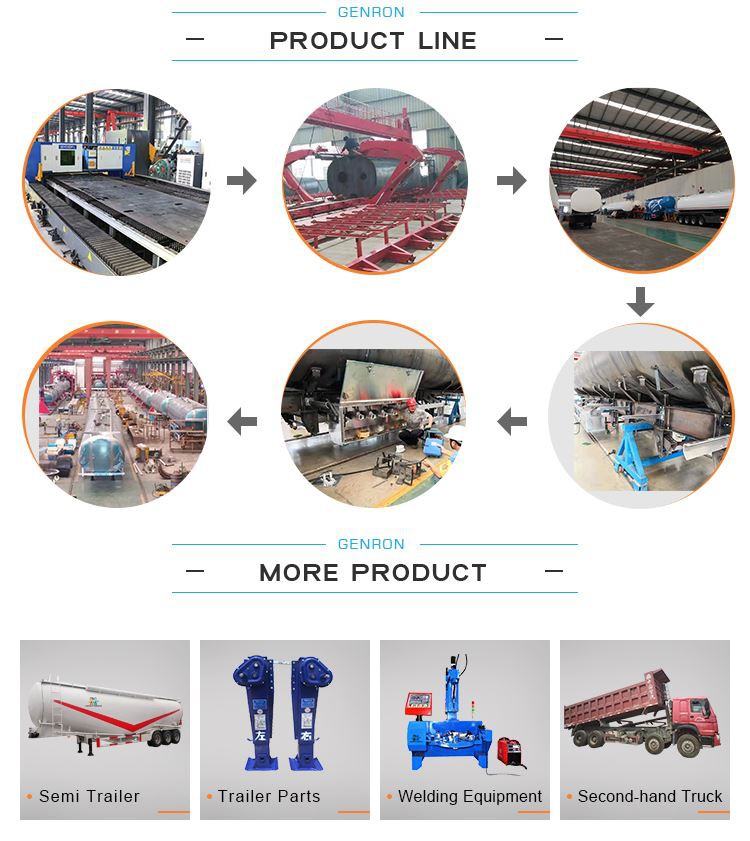

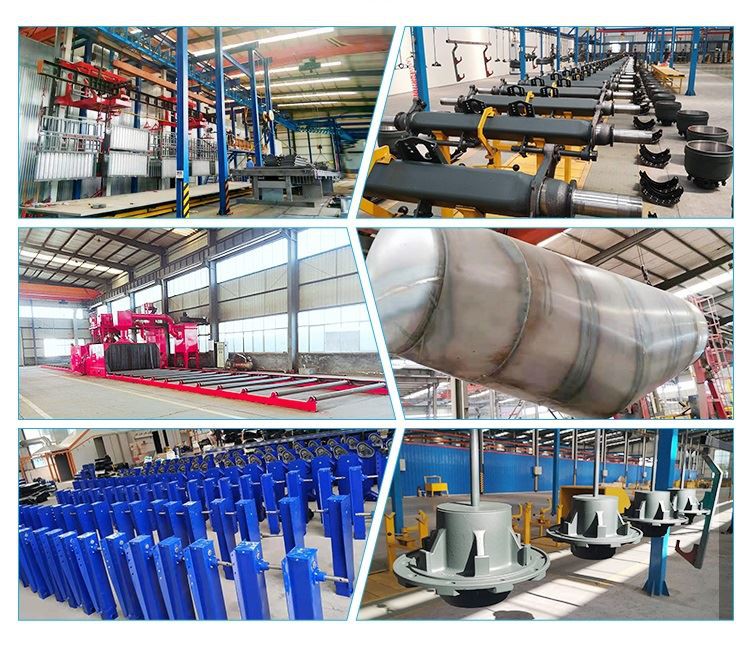

Factory :
