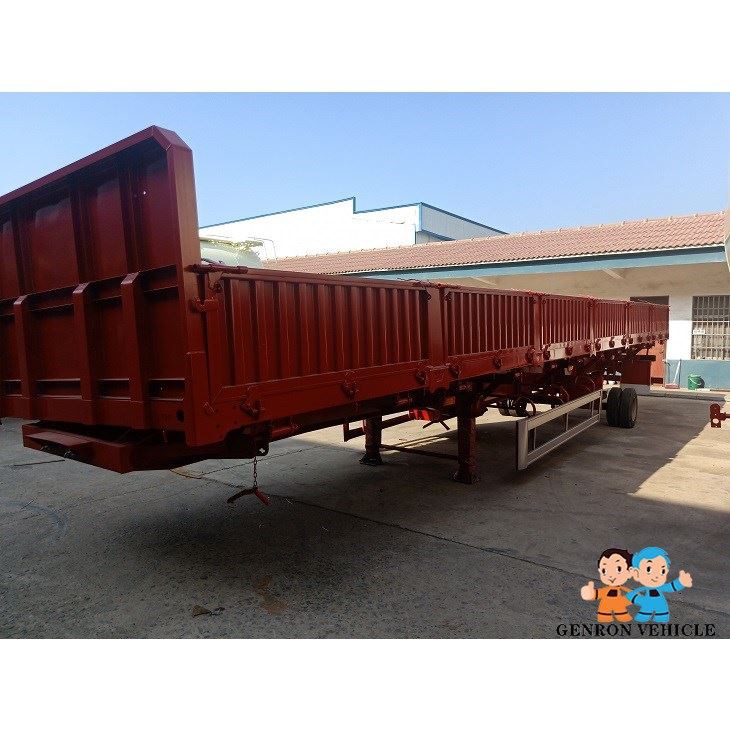

Steel 3 Axles Side Dumping Semi Trailer

3 Axles steel side dumping semi trailer for sale

Send Inquiry

Product introduction of Steel 3 Axles Side Dumping Semi Trailer:

Main Dimensions
Dimension	1100024003350mm ( outside) 1085022001500mm (work space )
Tare weight	About 10000KGS
Total Volume（m³）	35 m³ or less than 50tons
Side wall thickness（mm）	2.3mm Q235 steel (three or five door opening door )
Bottom plate thickness(mm)	3mm diamond plate /Q235 steel
Lifting system	Full set of Hydraulic Lifting system (Four diameter125mm lifting cylinder, and one diameter140mm lifting cylinder.)
Chassis
Main Beams	Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle	3 axles, FUWA/GV brand 13tons or 16tons per axles
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/ America type /
Leaf Spring	90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System	6 relay valves; Spring brake chamber; one piece of 45L air tanks.

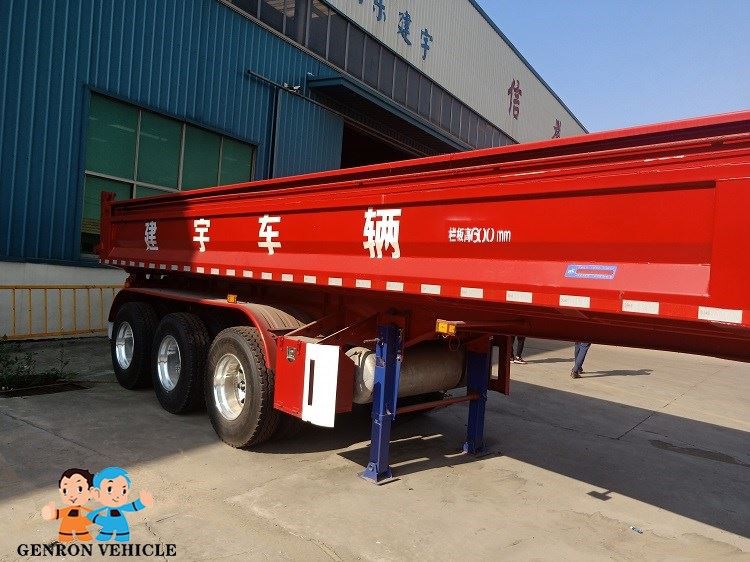

Detail of Steel 3 Axles Side Dumping Semi Trailer:

Feature of Steel 3 Axles Side Dumping Semi Trailer:

Dump semi-trailer can be divided into two categories according to their uses: one is heavy-duty and super heavy-duty dump trucks for off-road transportation, mainly responsible for large-scale mining, engineering and other transportation tasks, usually used together with excavators. The other type of light and medium-sized ordinary dump truck for highway transportation mainly undertakes the transportation of sand, soil, coal and other loose goods, which is usually used together with loaders.The carriage is rollover, which can effectively improve the transportation efficiency of bulk goods transported by the loader.The frame and the longitudinal beam of the carriage are welded with high-quality manganese plate, and there are dustpan and rectangular box. It has high strength, strong lifting force, good rigidity and toughness, strong bearing capacity and no permanent deformation.

Certificate:
